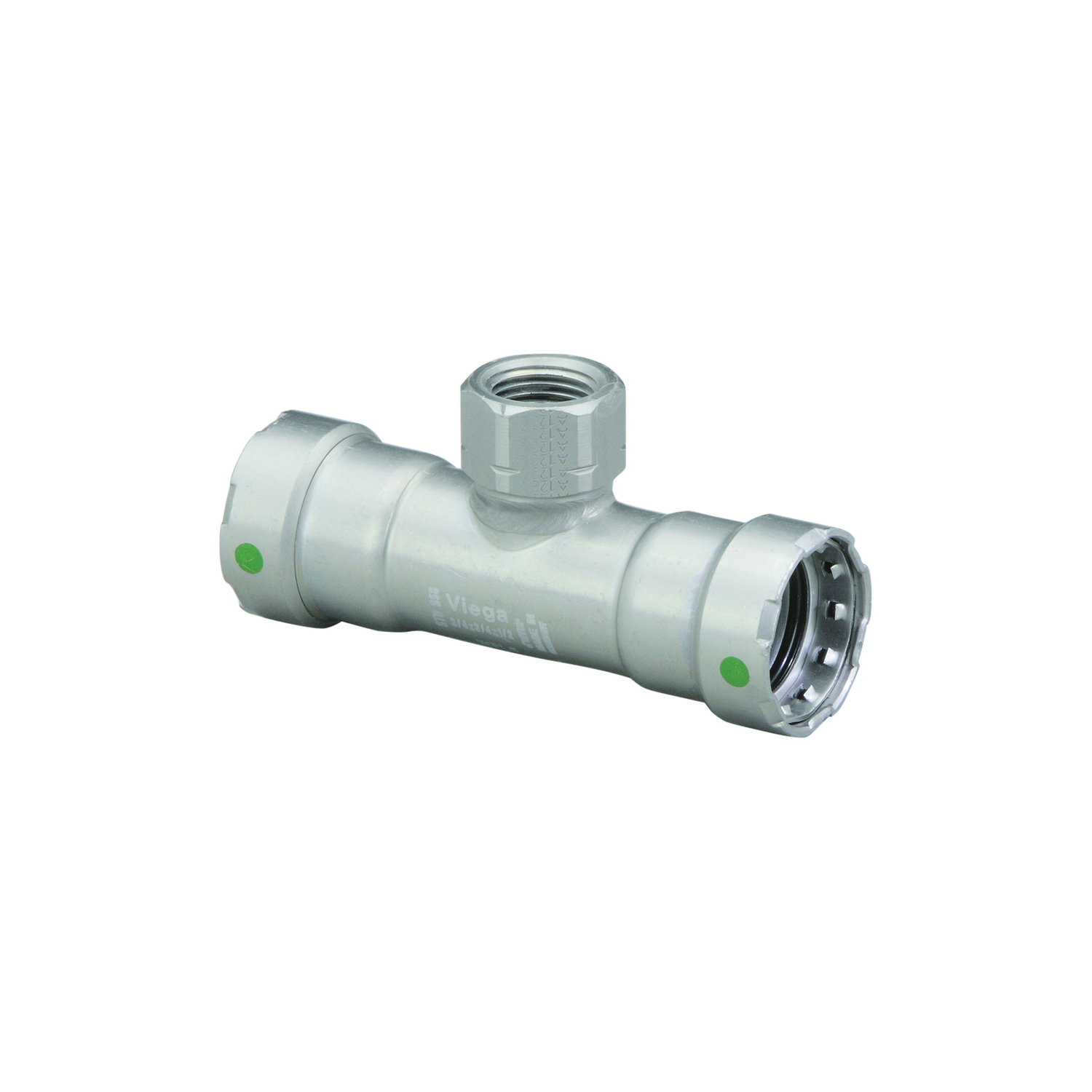

MegaPress® 25480 Model 4817.2, Pipe Tee, 3/4 in, Press x Press x FNPT, Carbon Steel, EPDM Seal, Import
CBPN:176864
UPC:691514254807
MPN:25480
Price:
$35.59 / EA
Enter in multiples of 5
DESCRIPTION
MegaPress® Pipe Tee, Fitting/Connector Type: Tee, Series: Model 4817.2, 3/4 in Nominal, Press x Press x FNPT, 0 To 250 deg F, Carbon Steel, EPDM Seal, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress® 25480 Model 4817.2, Pipe Tee, 3/4 in, Press x Press x FNPT, Carbon Steel, EPDM Seal, Import
CBPN:176864
MPN:25480
UPC:691514254807
Price:
$35.59 / EA
Enter in multiples of 5
DESCRIPTION
MegaPress® Pipe Tee, Fitting/Connector Type: Tee, Series: Model 4817.2, 3/4 in Nominal, Press x Press x FNPT, 0 To 250 deg F, Carbon Steel, EPDM Seal, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Specifications
Brand: MegaPress®
Weight: 0.639 lbs
Fitting/Connector Type: Tee
Nominal Size: 3/4 in
End Style: Press x Press x FNPT
Material: Carbon Steel
Seal Material: EPDM
Manufacturer Name: Viega
Temperature Rating: 0 to 250 deg F
Includes: EPDM Sealing Element (Green Dot)
Application: Compressed Air Systems, Chilled Water Systems, Hydronic Heating Systems, Fire Protection Systems, Solar Systems and Low Pressure Steam Systems
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: ABS Listed | ASME B31 | CRN OA14541.6 | CSA B149.1 | DNV Certification | FM 1920 | ICC LC1002 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58 | UL 213
Item Features
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- More than 150 different configurations
- Connections can be made wet or dry
- Carbon steel piping system SCH 5 to SCH 40
- EPDM sealing element
