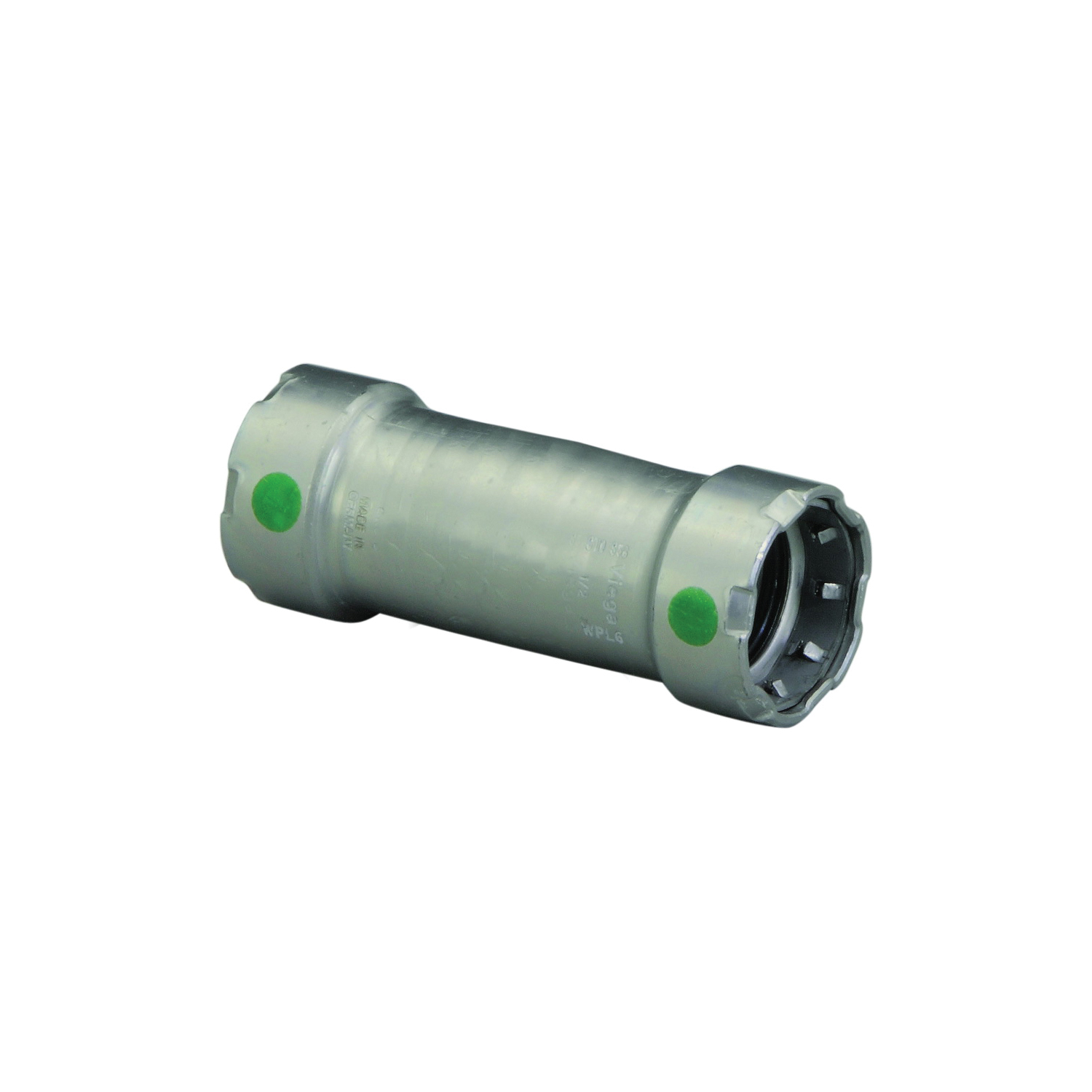

MegaPress® 25095 Model 4815.3, Extended Coupling, 2 in Nominal, Press End Style, Carbon Steel, EPDM Seal, Import
CBPN:231168
UPC:691514250953
MPN:25095
Price:
$79.38 / EA
DESCRIPTION
MegaPress® Extended Coupling, Fitting/Connector Type: Coupling, Series: Model 4815.3, 2 in Nominal, Press, 200 psi, -4 to 250 deg F, Carbon Steel, 5.63 in L, EPDM Seal, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress® 25095 Model 4815.3, Extended Coupling, 2 in Nominal, Press End Style, Carbon Steel, EPDM Seal, Import
CBPN:231168
MPN:25095
UPC:691514250953
Price:
$79.38 / EA
DESCRIPTION
MegaPress® Extended Coupling, Fitting/Connector Type: Coupling, Series: Model 4815.3, 2 in Nominal, Press, 200 psi, -4 to 250 deg F, Carbon Steel, 5.63 in L, EPDM Seal, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Specifications
Brand: MegaPress®
Weight: 1.693 lbs
Fitting/Connector Type: Coupling
Nominal Size: 2 in
End Style: Press
Material: Carbon Steel
Seal Material: EPDM
Dimensions: 5.63 in L
Manufacturer Name: Viega
Pressure Rating: 200 psi
Temperature Rating: -4 to 250 deg F
Includes: EPDM Sealing Element (Green Dot)
Application: For use in chilled water, hydronic heating, compressed air and fire sprinkler applications
Warranty: Limited
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: ASME B31 | ABS Listed | CAL Fire Listed | CRN #OA14541.6 | DNV Listed | FM Class 1920 | GL Listed | IAPMO PS117 | ICC LC1002 | International Plumbing Code | International Mechanical Code | LR Listed | NFPA 13/13D/13R/31/54 and 58 | UL 213 | Uniform Plumbing Code | Uniform Mechanical Code
Item Features
- For use with SCH 5 to SCH 40 carbon steel piping system
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- Connections can be made wet or dry
- Model 4815.3
- Without stop
