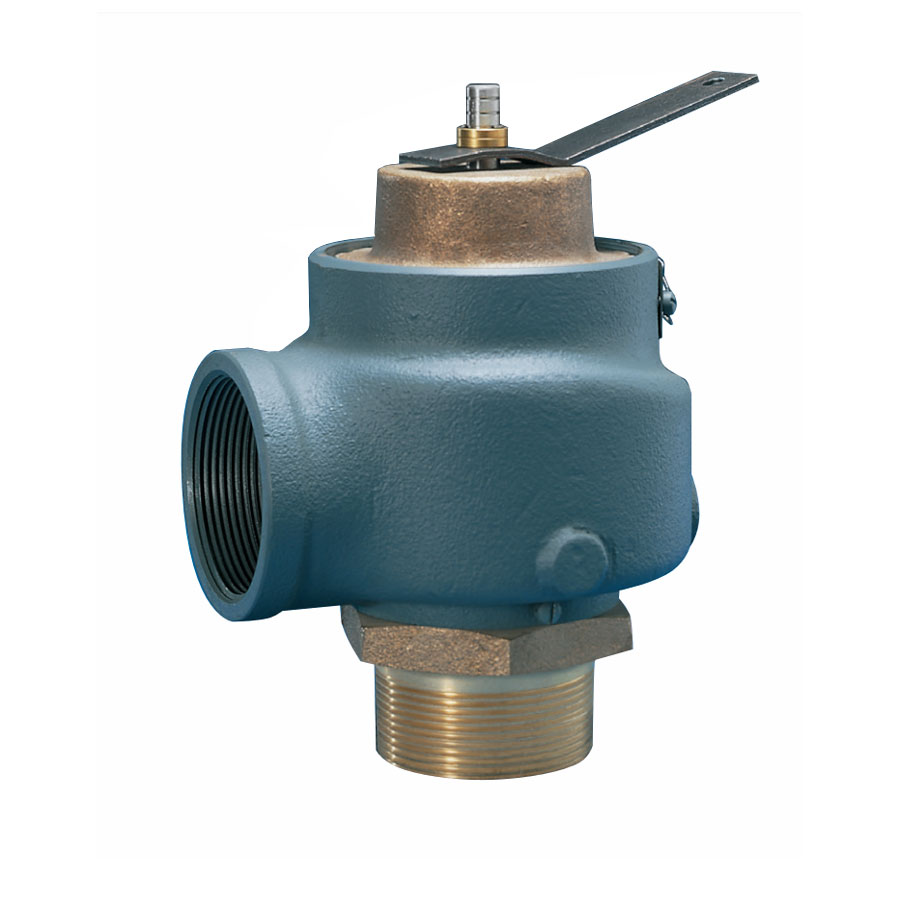

Kunkle 930K High Capacity Cast Iron Safety Relief Valve, 3 in MNPT x 3 in FNPT Side Outlet, Bronze Nozzle, Disc & Guide, ASME Code IV & XIII Steam, 15 psig Set Pressure, Kunkle 0930K01-GC0015
CBPN:23712
MPN:0930-K01-GC0015
Price:
$685.17 / EA
DESCRIPTION
Kunkle 0930K01GC0015, Kunkle 930 High Capacity Cast Iron Safety Relief Valve, 3 in MNPT x 3 in FNPT Side Outlet, Bronze Nozzle, Disc & Guide, ASME Code IV & XIII Steam, 15 psig Set Pressure
Model 930 is suitable for use on low pressure steam heating boilers to ASME code sections IV and XIII at 15 psig set pressure.
Kunkle 930K High Capacity Cast Iron Safety Relief Valve, 3 in MNPT x 3 in FNPT Side Outlet, Bronze Nozzle, Disc & Guide, ASME Code IV & XIII Steam, 15 psig Set Pressure, Kunkle 0930K01-GC0015
CBPN:23712
MPN:0930-K01-GC0015
Price:
$685.17 / EA
DESCRIPTION
Kunkle 0930K01GC0015, Kunkle 930 High Capacity Cast Iron Safety Relief Valve, 3 in MNPT x 3 in FNPT Side Outlet, Bronze Nozzle, Disc & Guide, ASME Code IV & XIII Steam, 15 psig Set Pressure
Model 930 is suitable for use on low pressure steam heating boilers to ASME code sections IV and XIII at 15 psig set pressure.
Specifications
Brand: Kunkle
Weight: 19 lbs
Nominal Size: 3 in x 3 in
End Style: MNPT x FNPT
Valve Service: Steam ASME Section IV & XIII
Set Pressure: 15 psig
Body Material: Cast Iron
Trim Material: Bronze Nozzle, Disc & Guide
Actuator Type: Reversible Lift Lever
Inlet Size: 3 in MNPT
Manufacturer Name: Emerson Electric
Max Allowable Pressure: 15 psig
Max Allowable Temperature: 250 deg F
Outlet Size: 3 in FNPT
Seat: Bronze
Series: 0930K01, 930
Spring: Steel , Aluminum Coated
Application: High capacity cast iron safety valve that meets ASME sections IV and XIII steam standard ‘HV’ and is National Board certified.
Standards and Approvals: ASME Code IV & XIII Steam
Item Features
- Extra high capacity for industrial, commercial and residential low pressure steam heating boilers.
- Cast iron body with bronze nozzle, disc and guide.
- Large seat area/guide area ratio and disc pivot design ensures optimum performance.
- Seats are lapped for optimum performance.
- Reversible lift lever for ‘pull-up’ or ‘pull-down’ manual testing.
- All adjustments factory sealed to prevent tampering or disassembly.
- Tested and inspected for pressure setting and leakage.
