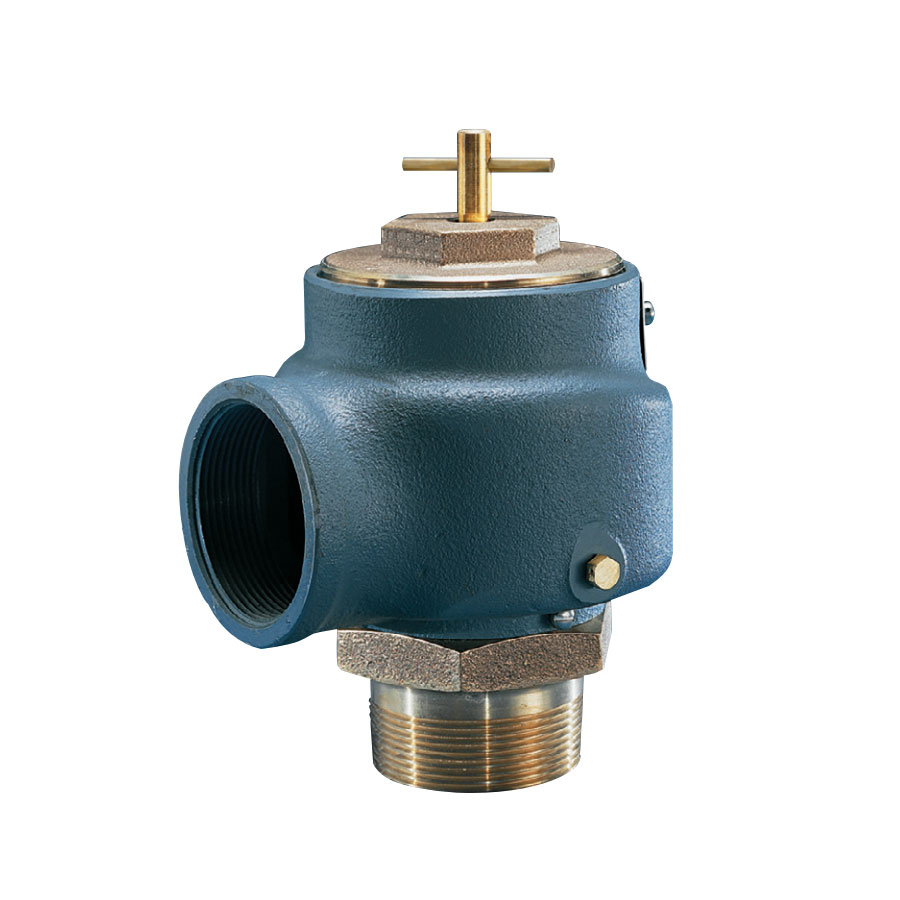

![Kunkle Model 337 Safety Relief Valve](/userfiles/ad/medium/kunkle-337-valve_1159.jpg)
Kunkle 337 Bronze Safety Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Air/Gas Non-Code, 11 psig Set Pressure, Kunkle 0337H01-NM0011
CBPN:281588
MPN:0337-H01ANM0011
Price:
$425.56 / EA
DESCRIPTION
Kunkle 0337H01NM0011, Kunkle 337 Bronze Safety Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Air/Gas Non-Code, 11 psig Set Pressure
Model 337 is for the protection of low to medium pressure high volume blowers, compressors, conveying systems and bulk hauling trailers/equipment.
Kunkle 337 Bronze Safety Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Air/Gas Non-Code, 11 psig Set Pressure, Kunkle 0337H01-NM0011
CBPN:281588
MPN:0337-H01ANM0011
Price:
$425.56 / EA
DESCRIPTION
Kunkle 0337H01NM0011, Kunkle 337 Bronze Safety Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Air/Gas Non-Code, 11 psig Set Pressure
Model 337 is for the protection of low to medium pressure high volume blowers, compressors, conveying systems and bulk hauling trailers/equipment.
Specifications
Brand: Kunkle
Weight: 8 lbs
Nominal Size: 2 in x 2 in
End Style: MNPT x FNPT
Valve Service: Air/Gas, Non-Code
Set Pressure: 11 psig
Body Material: Cast Iron
Trim Material: Bronze Disc & Nozzle
Actuator Type: Lift-Pin
Inlet Size: 2 in MNPT
Manufacturer Name: Emerson Electric
Max Allowable Pressure: 60 psig
Max Allowable Temperature: 406 deg F
Orifice Size: H - .863
Outlet Size: 2 in FNPT
Seat: Bronze Disc
Series: 0337H, 337H
Spring: SS Spring
Application: Cast iron non-code vacuum relief and ASME Section VIII and Section XIII air/gas, ‘UV’, National Board certified safety valves, both PED certified for non-hazardous gas.
Standards and Approvals: Air/Gas Non-Code
Item Features
- Large nozzle design provides high capacity.
- Flat bronze valve seats are lapped for optimum performance.
- Warn ring offers easy adjustability for precise opening with minimum pre-open or simmer.
- Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
- Model 337 has "lift-pin" lift device for easy manual testing.
- Bronze nozzle and disc as standard. Optional SS trim available.
- Each valve tested and inspected for pressure setting and leakage.
