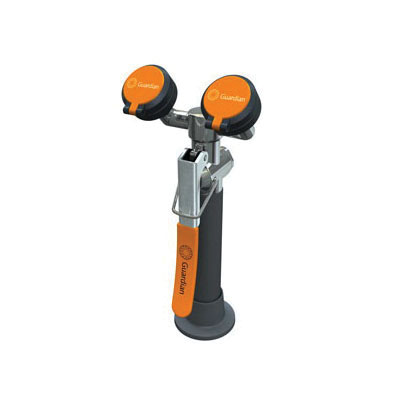

Guardian G5022 Deck Mounted Eyewash/Drench Hose Unit, 8 ft L Hose, Squeeze Valve, 3.2 gpm, PVC Hose, Specifications Met: ANSI Z358.1-2014
CBPN:214401
UPC:013536114042
MPN:G5022
Price:
$393.57 / EA
DESCRIPTION
Guardian Eyewash/Drench Hose Unit, Deck Mounted, 8 ft Hose Length, Squeeze Valve, 3.2 gpm, PVC Hose, 1-1/2 in Diameter Head, 3/8 in MNPT Inlet, Specifications Met: ANSI Z358.1-2014
Guardian G5022 Deck Mounted Eyewash/Drench Hose Unit, 8 ft L Hose, Squeeze Valve, 3.2 gpm, PVC Hose, Specifications Met: ANSI Z358.1-2014
CBPN:214401
MPN:G5022
UPC:013536114042
Price:
$393.57 / EA
DESCRIPTION
Guardian Eyewash/Drench Hose Unit, Deck Mounted, 8 ft Hose Length, Squeeze Valve, 3.2 gpm, PVC Hose, 1-1/2 in Diameter Head, 3/8 in MNPT Inlet, Specifications Met: ANSI Z358.1-2014
Specifications
Brand: Guardian
Weight: 3 lbs
Flow Rate: 3.2 gpm
Head Diameter: 1-1/2 in
Hose Length: 8 ft
Hose Material: PVC
Inlet Size: 3/8 in MNPT
Manufacturer Name: Guardian Equipment
Specifications Met: ANSI Z358.1-2014
Type: Deck Mounted
Valve Type: Squeeze
Application: For use as a fixed eyewash, leaving user's hands free, alternatively, unit may be removed for use as a drench hose to rinse any part of user's eyes, face or body
Standards and Approvals: ANSI Z358.1-2014
Item Features
- Two GS-Plus™ spray heads mounted side-by-side
- Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- Forged brass squeeze valve activated by stainless steel lever handle
- Valve has replaceable stainless steel seat for exceptional durability
- Locking clip engages when handle is depressed, providing "hands free" operation
- Valve stays open until locking clip is released
- 8 ft reinforced PVC hose
- 275 psi maximum working pressure
- Deck flange for countertop mounting
- Flange has handle locator guide to position spray heads and handle facing forward at all times
- 3/8 in MNPT swivel-type inlet supply
- ANSI compliant identification sign
- Quality assurance: unit is completely assembled and water tested prior to shipment
