Guardian G1950P

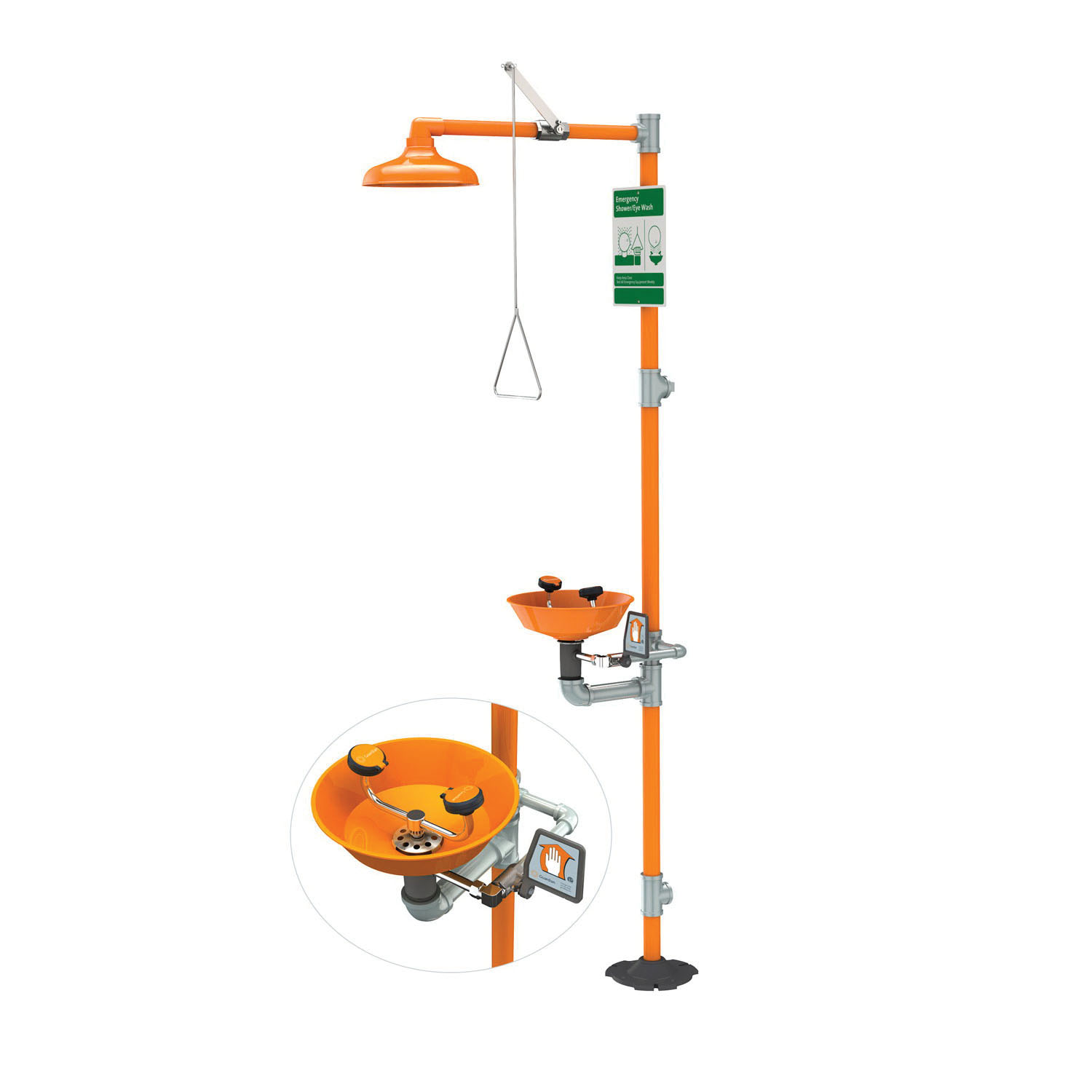

Guardian G1950P Combination Shower and Eye/Face Wash Unit, ABS Plastic Eyewash Bowl, ABS Plastic Shower Head, Floor Mounting, Pull Rod Handle Operation, Specifications Met: ANSI Z358.1-2014

CBPN:214395

UPC:013536113731

MPN:G1950P

Price:
$917.04 / EA

DESCRIPTION

Guardian Combination Shower and Eye/Face Wash Unit, Galvanized Steel Pipe, ABS Plastic Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-3/4 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation

Guardian G1950P Combination Shower and Eye/Face Wash Unit, ABS Plastic Eyewash Bowl, ABS Plastic Shower Head, Floor Mounting, Pull Rod Handle Operation, Specifications Met: ANSI Z358.1-2014

CBPN:214395

MPN:G1950P

UPC:013536113731

Price:
$917.04 / EA

Guardian Emergency Eyewash Logo

DESCRIPTION

Guardian Combination Shower and Eye/Face Wash Unit, Galvanized Steel Pipe, ABS Plastic Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-3/4 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation

Specifications

BrandGuardian
Weight30 lbs
Bowl Diameter11-3/4 in
ColorOrange
Eyewash Bowl MaterialABS Plastic
Fitting MaterialGalvanized Steel
Head Diameter10 in
Manufacturer NameGuardian Equipment
Mounting TypeFloor
Operation TypePull Rod Handle
Pipe MaterialGalvanized Steel
Shower Handle Length29 in
Shower Handle MaterialStainless Steel
Shower Head MaterialABS Plastic
Specifications MetANSI Z358.1-2014
IncludesANSI Compliant Identification Sign
ApplicationCombination Eye/Face Wash and Shower Safety Station, Two Large Fs-plus™ Spray-type Outlet Heads Deliver a Flood of Water for Rinsing Eyes and Face
Standards and ApprovalsETL Listed | UPC Listed

Item Features

  • Eye face wash features a plastic bowl with two large FS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes and face
  • Shower head - 10 in dia orange Abs plastic with 20 gpm flow control
  • Shower valve - 1 in IPS chrome-plated brass stay open ball valve
  • Valve is US-made with chrome-plated brass ball and PTFE seals
  • Furnished with stainless steel actuating arm and 29 in stainless steel pull rod
  • Spray head assembly - two FS-Plus™ spray heads
  • Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
  • Eye face wash valve - 1/2 in IPS chrome-plated brass stay open ball valve
  • Pipe and fittings - schedule 40 galvanized steel
  • Furnished with orange polyethylene pipe covers for high-visibility and corrosion resistance
  • Supply - 1-1/4 in NPT female top or side inlet
  • Waste - 1-1/4 in NPT female outlet
  • Outlet can be positioned at either 9-1/4 in or 19-5/8 in above finished floor by reversing lower pipe nipples
  • Quality assurance - valve and spray head assemblies are factory assembled and water tested prior to shipment
