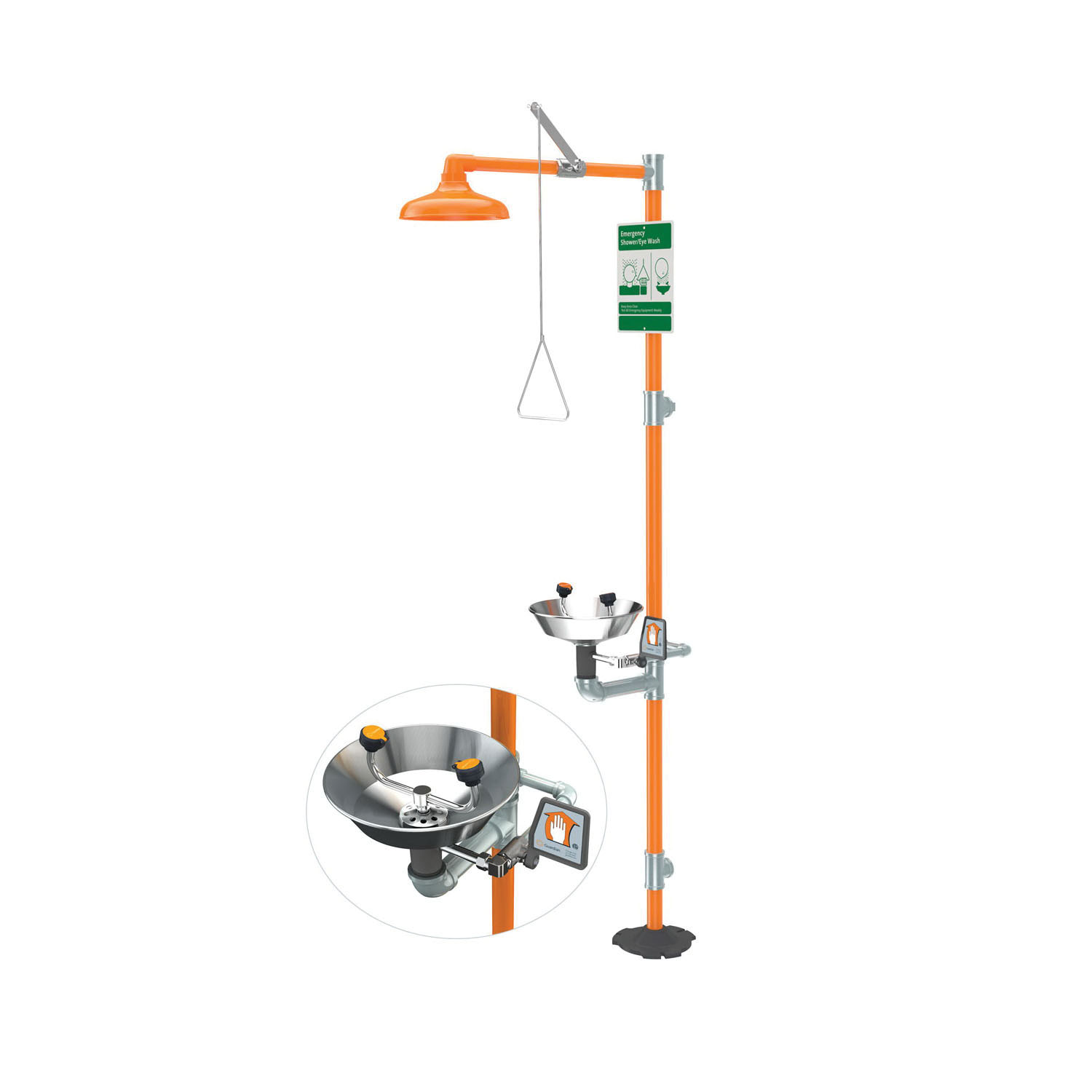

Guardian G1902 Combination Eyewash and Shower Safety Unit, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, Floor Mounting, Pull Rod Handle Operation, Specifications Met: ANSI Z358.1-2014, cUPC 8116
CBPN:214392
UPC:013536113540
MPN:G1902
Price:
$930.54 / EA
DESCRIPTION
Guardian Combination Eyewash and Shower Safety Unit, Galvanized Steel Pipe, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-1/8 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, cUPC 8116, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation
Guardian G1902 Combination Eyewash and Shower Safety Unit, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, Floor Mounting, Pull Rod Handle Operation, Specifications Met: ANSI Z358.1-2014, cUPC 8116
CBPN:214392
MPN:G1902
UPC:013536113540
Price:
$930.54 / EA
DESCRIPTION
Guardian Combination Eyewash and Shower Safety Unit, Galvanized Steel Pipe, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-1/8 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, cUPC 8116, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation
Specifications
Brand: Guardian
Weight: 30 lbs
Bowl Diameter: 11-1/8 in
Color: Orange
Eyewash Bowl Material: Stainless Steel
Fitting Material: Galvanized Steel
Head Diameter: 10 in
Manufacturer Name: Guardian Equipment
Mounting Type: Floor
Operation Type: Pull Rod Handle
Pipe Material: Galvanized Steel
Shower Handle Length: 29 in
Shower Handle Material: Stainless Steel
Shower Head Material: ABS Plastic
Specifications Met: ANSI Z358.1-2014, cUPC 8116
Includes: ANSI Compliant Identification Sign
Application: Combination Eyewash and Shower Safety Station, Two GS-Plus™ Spray-type Outlet Heads Deliver a Flood of Water for Rinsing Eyes
Standards and Approvals: ETL Listed | UPC Listed
Item Features
- Eyewash features a stainless steel bowl with two GS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes
- Shower head - 10 in dia orange Abs plastic with 20 gpm flow control
- Shower valve - 1 in IPS chrome-plated brass stay open ball valve
- Valve is US-made with chrome-plated brass ball and PTFE seals
- Furnished with stainless steel actuating arm and 29 in stainless steel pull rod
- Spray head assembly - two GS-Plus™ spray heads
- Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- Eyewash valve - 1/2 in IPS chrome-plated brass stay open ball valve
- Pipe and fittings - schedule 40 galvanized steel
- Furnished with orange polyethylene pipe covers for high-visibility and corrosion resistance
- Supply - 1-1/4 in NPT female top or side inlet
- Waste - 1-1/4 in NPT female outlet
- Outlet can be positioned at either 9-1/4 in or 19-5/8 in above finished floor by reversing lower pipe nipples
- Quality assurance - valve and spray head assemblies are factory assembled and water tested prior to shipment
