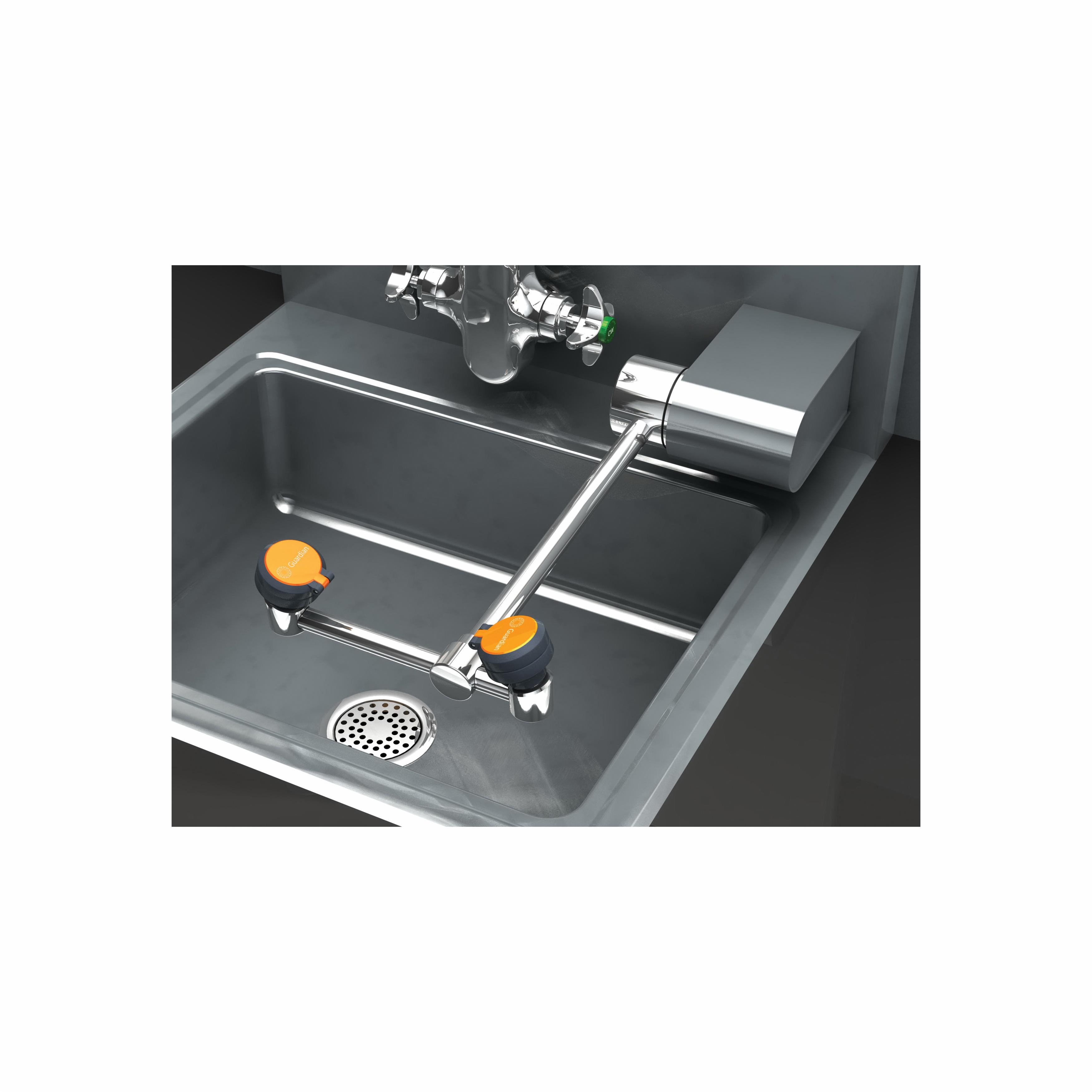

Guardian AutoFlow™ G1848 Eyewash, Wall Mounting, 90 deg Swing Down Operation, Specifications Met: ANSI Z358.1-2014
CBPN:214384
UPC:013536113441
MPN:G1848
Price:
$559.90 / EA
DESCRIPTION
Guardian AutoFlow™ Eyewash, 2 Heads, Wall Mounting, 90 deg Swing Down Operation, Chrome Plated Brass Pipe, 1/2 in FNPT Inlet Fitting, 14-5/8 in Height, Specifications Met: ANSI Z358.1-2014
Guardian AutoFlow™ G1848 Eyewash, Wall Mounting, 90 deg Swing Down Operation, Specifications Met: ANSI Z358.1-2014
CBPN:214384
MPN:G1848
UPC:013536113441
Price:
$559.90 / EA
DESCRIPTION
Guardian AutoFlow™ Eyewash, 2 Heads, Wall Mounting, 90 deg Swing Down Operation, Chrome Plated Brass Pipe, 1/2 in FNPT Inlet Fitting, 14-5/8 in Height, Specifications Met: ANSI Z358.1-2014
Specifications
Brand: Guardian
Weight: 6 lbs
Fitting Size: 1/2 in FNPT Inlet
Height: 14-5/8 in
Manufacturer Name: Guardian Equipment
Mounting Type: Wall
Number of Heads: 2
Operation Type: 90 deg Swing Down
Pipe Material: Chrome Plated Brass
Specifications Met: ANSI Z358.1-2014
Includes: ANSI Compliant Identification Sign
Country of Origin: US
Standards and Approvals: cUPC 8116
Item Features
- Two GS-Plus™ spray heads, each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- 1/2 in IPS plug-type valve with PTFE coated O-ring seals
- Swinging head assembly from storage to operational position opens orifice and activates water flow
- Unit remains in operation until head assembly is returned to storage position
- Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line
- Valve is installed in type 316 stainless steel housing
- Mount housing on wall using anchors or other mounting hardware
