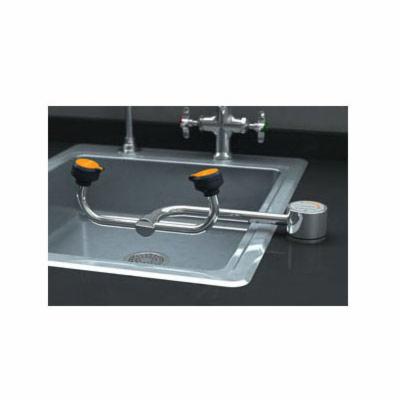

Guardian AutoFlow™ G1805 Eyewash, Deck Mounting, 90 deg Swing Operation, Specifications Met: ANSI Z358.1-2014
CBPN:214377
UPC:013536113243
MPN:G1805
Price:
$349.33 / EA
DESCRIPTION
Guardian AutoFlow™ Eyewash, 2 Heads, Deck Mounting, 90 deg Swing Operation, Chrome Plated Brass Valve, Chrome Plated Brass Fitting, Chrome Plated Brass Pipe, 1/2 in FNPT Inlet Fitting, 2-1/4 in Diameter Head, 13 in Width, 4-3/8 in Height, Specifications Met: ANSI Z358.1-2014
Guardian AutoFlow™ G1805 Eyewash, Deck Mounting, 90 deg Swing Operation, Specifications Met: ANSI Z358.1-2014
CBPN:214377
MPN:G1805
UPC:013536113243
Price:
$349.33 / EA
DESCRIPTION
Guardian AutoFlow™ Eyewash, 2 Heads, Deck Mounting, 90 deg Swing Operation, Chrome Plated Brass Valve, Chrome Plated Brass Fitting, Chrome Plated Brass Pipe, 1/2 in FNPT Inlet Fitting, 2-1/4 in Diameter Head, 13 in Width, 4-3/8 in Height, Specifications Met: ANSI Z358.1-2014
Specifications
Brand: Guardian
Weight: 5 lbs
Fitting Material: Chrome Plated Brass
Fitting Size: 1/2 in FNPT Inlet
Head Diameter: 2-1/4 in
Height: 4-3/8 in
Manufacturer Name: Guardian Equipment
Mounting Type: Deck
Number of Heads: 2
Operation Type: 90 deg Swing
Pipe Material: Chrome Plated Brass
Specifications Met: ANSI Z358.1-2014
Valve Material: Chrome Plated Brass
Width: 13 in
Includes: ANSI Compliant Identification Sign
Application: Autoflow&rade; Eyewash for Mounting Next to Sink, Swinging The Spray Head Assembly Horizontally Out Over The Sink Activates The Water Flow, The Unit Remains in Operation Until The Spray Head Assembly is Swung Back into The Storage Position, Closing The Valve
Standards and Approvals: cUPC 8116
Item Features
- Two GS-Plus™ spray heads, each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- 1/2 in IPS plug-type valve with PTFE coated O-ring seals
- Swinging head assembly from storage to operational position opens orifice and activates water flow
- Unit remains in operation until head assembly is returned to storage position
- Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line
- Furnished with mounting shank, positioning lugs, locknut and washer for securing unit to counter
- Unit is mounted on right side of sink
