GRUVLOK AE-7721-3 Butterfly Valve

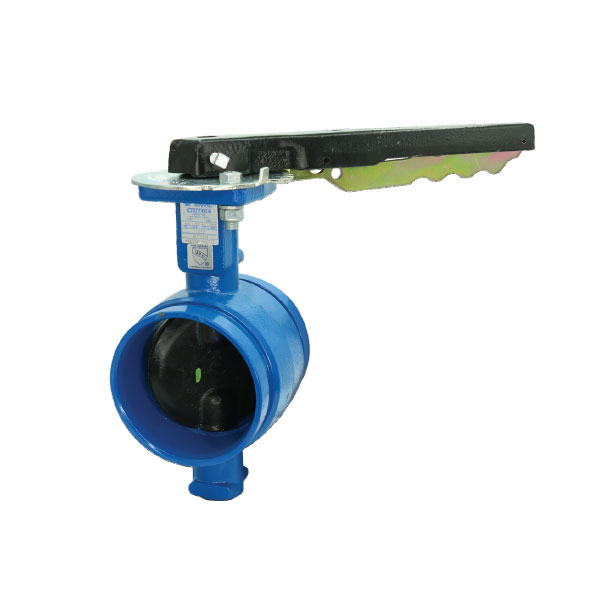

Gruvlok® 7005011844 FIG AE-7721-3 Butterfly Valve, 3 in Nominal, Grooved End Style, Ductile Iron Body, Domestic

CBPN:280968

UPC:690291828263

MPN:7005011844

Price:
$627.59 / EA

DESCRIPTION

Gruvlok® Butterfly Valve, Series: FIG AE-7721-3, 3 in Nominal, Grooved, -40 to 230 deg F, 10-Position Lever-Lock Handle Actuator, 3-13/16 in Inlet to Outlet Length, 6-1/4 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem and Pin, Epoxy Coated, 3-1/2 in OD, Domestic

The uniqueness of the Series 7700 Gruvlok Butterfly Valve begins with the spherical bore of the disc seat area. This facilitates a constant DISC-TO-SEAT loading that maintains a leak tight stem seal regardless of disc position. The stem sealing force is constant through the full disc cycle and operating torques are kept low which increases valve life. The design provides a bubble tight seal from full vacuum to 300 psi when the valve is closed. The valve is rated for dead-end service to a full pressure rating of 300 psi. Silicone Free Series 7700 available upon special request. The stem-to-disc connection provides zero backlash. The high strength, corrosion resistant, stainless steel stems are blow-out proof. Each stem is fitted with a secondary seal that also provides a lifetime lubrication chamber. The Series 7700 valve is designed with the contractor in mind. The valve body is a rugged one-piece casting with an integral mounting base for gear operator or handle actuation, while providing room for a minimum of 2 in of pipe insulation. The valve is designed and manufactured to meet or exceed the requirements of MSS SP-67.

Gruvlok® 7005011844 FIG AE-7721-3 Butterfly Valve, 3 in Nominal, Grooved End Style, Ductile Iron Body, Domestic

CBPN:280968

MPN:7005011844

UPC:690291828263

Price:
$627.59 / EA

Gruvlok Logo

DESCRIPTION

Gruvlok® Butterfly Valve, Series: FIG AE-7721-3, 3 in Nominal, Grooved, -40 to 230 deg F, 10-Position Lever-Lock Handle Actuator, 3-13/16 in Inlet to Outlet Length, 6-1/4 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem and Pin, Epoxy Coated, 3-1/2 in OD, Domestic

The uniqueness of the Series 7700 Gruvlok Butterfly Valve begins with the spherical bore of the disc seat area. This facilitates a constant DISC-TO-SEAT loading that maintains a leak tight stem seal regardless of disc position. The stem sealing force is constant through the full disc cycle and operating torques are kept low which increases valve life. The design provides a bubble tight seal from full vacuum to 300 psi when the valve is closed. The valve is rated for dead-end service to a full pressure rating of 300 psi. Silicone Free Series 7700 available upon special request. The stem-to-disc connection provides zero backlash. The high strength, corrosion resistant, stainless steel stems are blow-out proof. Each stem is fitted with a secondary seal that also provides a lifetime lubrication chamber. The Series 7700 valve is designed with the contractor in mind. The valve body is a rugged one-piece casting with an integral mounting base for gear operator or handle actuation, while providing room for a minimum of 2 in of pipe insulation. The valve is designed and manufactured to meet or exceed the requirements of MSS SP-67.

Specifications

BrandGruvlok®
Weight11 lbs
Nominal Size3 in
End StyleGrooved
Body MaterialDuctile Iron
Softgoods MaterialEPDM
Actuator Type10-Position Lever-Lock Handle
Dimensions3-1/2 in OD
Disc MaterialDuctile Iron
FinishEpoxy Coated
Inlet to Outlet Length3-13/16 in
Manufacturer NameASC Engineered Solutions
SeriesFIG AE-7721-3
Stem & Pin Material416 Stainless Steel (Stem)
Temperature Rating-40 to 230 deg F
Top to Inlet Center6-1/4 in
ApplicationFor used in commercial grooved-end piping systems 2 in through 12 in
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A 536 Grade 65-45-12 | cULus Listed | cUPC Listed | FM Approved | LPCB Certified | NSF/ANSI 61 (Cold Water) and Annex G

Item Features

  • The stem-to-disc connection provides zero backlash.
  • Ductile iron disc with grade E EPDM coating
  • For operator safety, hand levers on 8 in valves are limited to applications with a 25 psi maximum pressure
