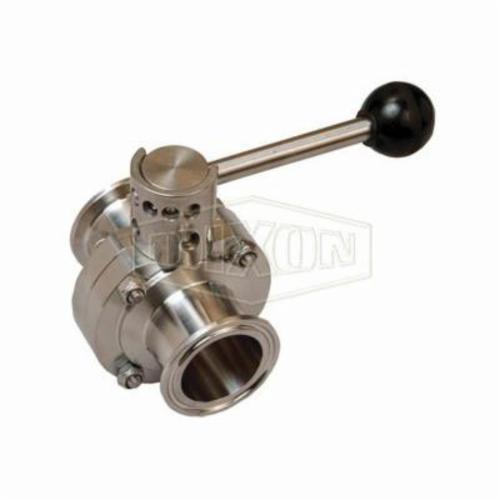

Dixon Sanitary B5101S150CC-A Butterfly Valve, 1-1/2 in Nominal, Clamp End End Style, 316L Stainless Steel Body
CBPN:148406
MPN:B5101S150CC-A
Dixon Sanitary B5101S150CC-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 1-1/2 in Nominal, Clamp End, 15 to 200 deg F, Pull Handle Actuator, 3-1/2 in Inlet to Outlet Length, 2.8 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 3.1 in D
Dixon Sanitary B5101S150CC-A Butterfly Valve, 1-1/2 in Nominal, Clamp End End Style, 316L Stainless Steel Body
CBPN:148406
MPN:B5101S150CC-A
Dixon Sanitary B5101S150CC-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 1-1/2 in Nominal, Clamp End, 15 to 200 deg F, Pull Handle Actuator, 3-1/2 in Inlet to Outlet Length, 2.8 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 3.1 in D
Specifications
Brand: Dixon Sanitary
Weight: 2.35 lbs
Nominal Size: 1-1/2 in
End Style: Clamp End
Body Material: 316L Stainless Steel
Actuator Type: Pull Handle
Dimensions: 3.1 in D
Disc Material: 316L Stainless Steel
Inlet to Outlet Length: 3-1/2 in
Manufacturer Name: Dixon Sanitary
Series: B5101
Temperature Rating: 15 to 200 deg F
Top to Inlet Center: 2.8 in
Warranty: Limited
Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Features
- 100% hydraulic tested/100% inspected
- Field serviceable (no special tools required)
- All wetted surfaces are sanitary finished to < 32Ra
- 40 in-lb break torque
- 80 Cv flow co-efficient
- 0.4 in Hg vacuum at 68 deg F minimal line pressure
- Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F/ 20 deg C
- Handle is not assembled when shipped
