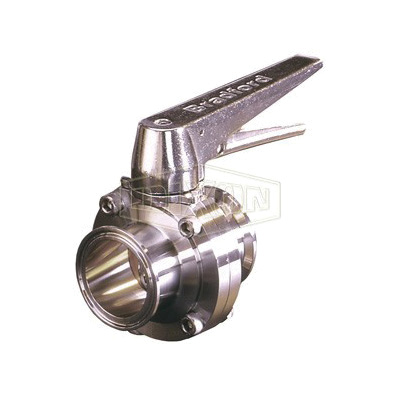

Dixon Sanitary B5101E300CC-C Butterfly Valve, 3 in Nominal, Clamp End End Style, 316L Stainless Steel Body
CBPN:199546
UPC:089109800100
MPN:B5101E300CC-C
Dixon Sanitary B5101E300CC-C has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 3 in Nominal, Clamp End, 15 to 200 deg F, Trigger Handle Actuator, 4.1 in Inlet to Outlet Length, 3.9 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 304 Stainless Steel (Pin) Stem & Pin Material, 5.2 in W
Dixon Sanitary B5101E300CC-C Butterfly Valve, 3 in Nominal, Clamp End End Style, 316L Stainless Steel Body
CBPN:199546
MPN:B5101E300CC-C
UPC:089109800100
Dixon Sanitary B5101E300CC-C has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 3 in Nominal, Clamp End, 15 to 200 deg F, Trigger Handle Actuator, 4.1 in Inlet to Outlet Length, 3.9 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 304 Stainless Steel (Pin) Stem & Pin Material, 5.2 in W
Specifications
Brand: Dixon Sanitary
Weight: 6.85 lbs
Nominal Size: 3 in
End Style: Clamp End
Body Material: 316L Stainless Steel
Actuator Type: Trigger Handle
Dimensions: 5.2 in W
Disc Material: 316L Stainless Steel
Inlet to Outlet Length: 4.1 in
Manufacturer Name: Dixon Sanitary
Series: B5101
Stem & Pin Material: 304 Stainless Steel (Pin)
Temperature Rating: 15 to 200 deg F
Top to Inlet Center: 3.9 in
Warranty: Limited
Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Features
- Lockout tagout handle
- 100% hydraulic tested/100% inspected
- All wetted surfaces are sanitary finished to < 32Ra
- Field serviceable (no special tools required)
- Various end configurations available - Weld, I-line, Q-line, bevel seat and John Perry
- Clamp style is standard
- 0.4 in Hg vacuum at 68 deg F minimal line pressure
- 372 Cv flow co-efficient
- Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F
- Handle is not assembled when shipped
