Dixon® PPC100

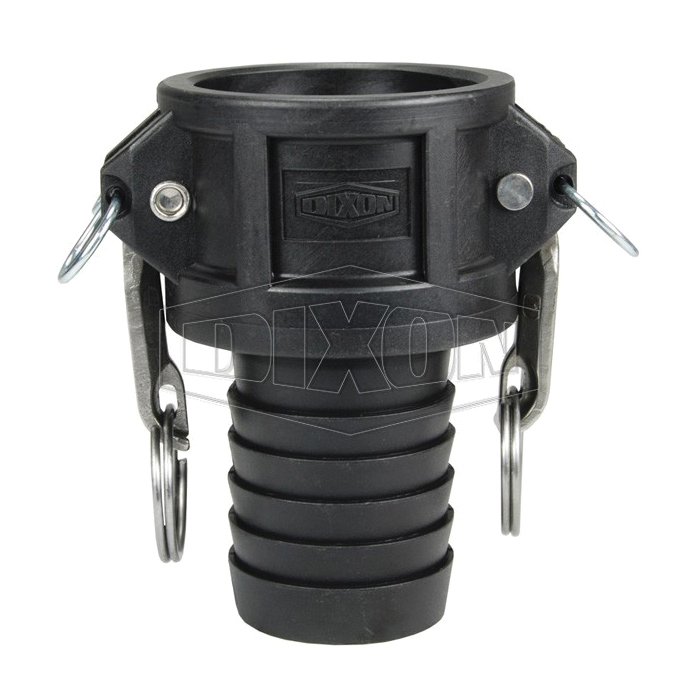

Dixon® PPC100 Type-C Cam and Groove Coupler, 1 in Nominal, Female Coupler x Hose Shank End Style, Polypropylene

CBPN:19465

MPN:PPC100

Price:
$7.38 / EA
Prop 65:

DESCRIPTION

Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 1 in Nominal, Female Coupler x Hose Shank End Style, 125 psi Pressure, Polypropylene

Dixon® PPC100 Type-C Cam and Groove Coupler, 1 in Nominal, Female Coupler x Hose Shank End Style, Polypropylene

CBPN:19465

MPN:PPC100

Price:
$7.38 / EA

Prop 65:
Dixon Logo

DESCRIPTION

Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 1 in Nominal, Female Coupler x Hose Shank End Style, 125 psi Pressure, Polypropylene

Specifications

BrandDixon®
Weight0.286 lbs
Fitting/Connector TypeCoupling
TypeType C
Nominal Size1 in
End StyleFemale Coupler x Hose Shank
MaterialPolypropylene
Manufacturer NameDixon Valve & Coupling
Pressure Rating125 psi
WarrantyLimited

Item Features

  • Manufactured from a glass-filled polypropylene
  • Supplied with EPDM gaskets, 304 stainless steel handles and pins
  • Polypropylene cam and groove should not be mixed with metal fittings
  • 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed
  • Not recommended for use with PTFE gaskets
  • 125 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
