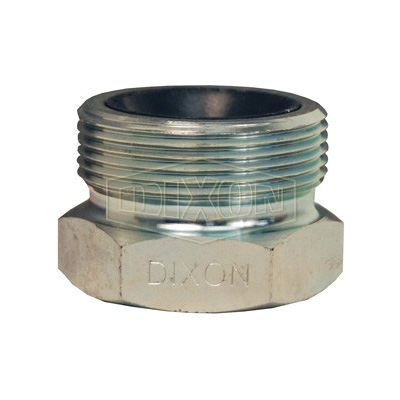

Dixon® GB8 Boss™ Ground Joint Spud, 3/4 in, FNPT, Steel, Domestic
CBPN:24785
MPN:GB8
Price:
$15.12 / EA
DESCRIPTION
Dixon® Ground Joint Spud, Series: Boss™, Spud, 3/4 in Nominal, FNPT, 450 deg F, Steel, Plated, 3-9/16 in W x 4-15/16 in H, Domestic
Dixon® GB8 Boss™ Ground Joint Spud, 3/4 in, FNPT, Steel, Domestic
CBPN:24785
MPN:GB8
Price:
$15.12 / EA
Specifications
Brand: Dixon®
Weight: 0.71 lbs
Fitting/Connector Type: Spud
Nominal Size: 3/4 in
End Style: FNPT
Material: Steel
Dimensions: 3-9/16 in W x 4-15/16 in H
Finish: Plated
Manufacturer Name: Dixon Valve & Coupling
Series: Boss™
Temperature Rating: 450 deg F
Application: Used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID, Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
Domestic/Import: Domestic
Country of Origin: US
Item Features
- The spud part of the coupling serves as one half of the boss ground joint connection and is usually fixed to the equipment
- The stem part that is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Positive metal-to-polymer seal
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud
- The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the corrosion resistance chart for additional information
- Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet
- Easy to seal
- Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections, they are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
- Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
