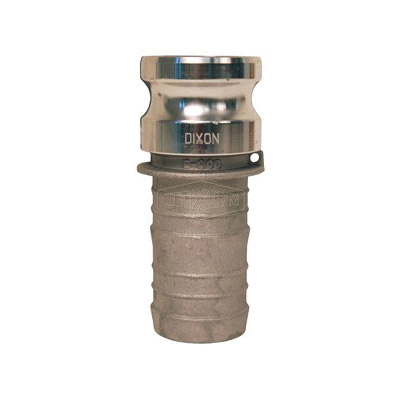

Dixon® G300-E-AL Type E Cam and Groove Adapter, 3 in, Male Adapter x Hose Shank, Aluminum, Import
CBPN:146791
MPN:G300-E-AL
Price:
$20.14 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type E, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x Hose Shank , 6-7/32 in Length, 125 psi, Aluminum, 3-19/32 in Dia, Import
Dixon® G300-E-AL Type E Cam and Groove Adapter, 3 in, Male Adapter x Hose Shank, Aluminum, Import
CBPN:146791
MPN:G300-E-AL
Price:
$20.14 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type E, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x Hose Shank , 6-7/32 in Length, 125 psi, Aluminum, 3-19/32 in Dia, Import
Specifications
Brand: Dixon®
Weight: 1.33 lbs
Fitting/Connector Type: Adapter
Type: Type E
Nominal Size: 3 in
End Style: Male Adapter x Hose Shank
Material: Aluminum
Dimensions: 3-19/32 in Dia
Length: 6-7/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 125 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Item Features
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- For use with liquid
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
