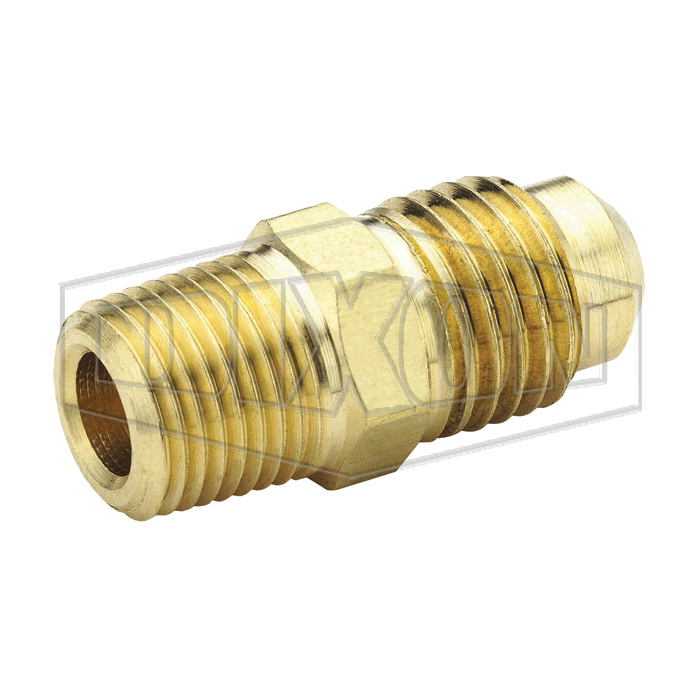

Dixon® 48F-4-4 Tube Connector, 1/4 in Nominal, SAE Flare x MNPT, Brass
CBPN:86870
MPN:48F-4-4
Price:
$3.48 / EA
Prop 65:
DESCRIPTION
Dixon® Tube Connector, 1/4 in Nominal, SAE Flare x MNPT, 9/16 in Hex, 1400 psi, -65 to 250 deg F, Brass
Dixon® 48F-4-4 Tube Connector, 1/4 in Nominal, SAE Flare x MNPT, Brass
CBPN:86870
MPN:48F-4-4
Price:
$3.48 / EA
Prop 65:
DESCRIPTION
Dixon® Tube Connector, 1/4 in Nominal, SAE Flare x MNPT, 9/16 in Hex, 1400 psi, -65 to 250 deg F, Brass
Specifications
Brand: Dixon®
Weight: 0.045 lbs
Nominal Size: 1/4 in
End Style: SAE Flare x MNPT
Material: Brass
Hex Size: 9/16 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 1400 psi
Temperature Rating: -65 to 250 deg F
Application: For use with copper, brass, aluminum, welded steel hydraulic tubing that can be flared, manufactured especially for hard-to-hold liquids and gases
Warranty: 1 Year Limited
Standards and Approvals: CA 360/CA 345/CA 377 Brass | SAE 010103 | Listed with Underwriter's Laboratories for Flammable Liquid, Marine, Refrigeration and Gas Applications | Meets functional requirements of SAE J512 and J513, ASA and MS (Military Standards) | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Item Features
- Economical fitting resists mechanical pullout
- Easy to disassemble and may be reassembled repeatedly, for a leak-proof connection
- 7/16-20 straight thread
- Cut tubing squarely and clean tube end thoroughly to remove burrs
- Place nut onto tube, place threaded end of nut toward end of tube
- Flare tube end with flaring tool to provide 45 deg flare
- Clamp tube flare between nut and nose of fitting body by screwing nut on finger-tight, tighten with a wrench an additional 1/4 turn for metal-to-metal seal
