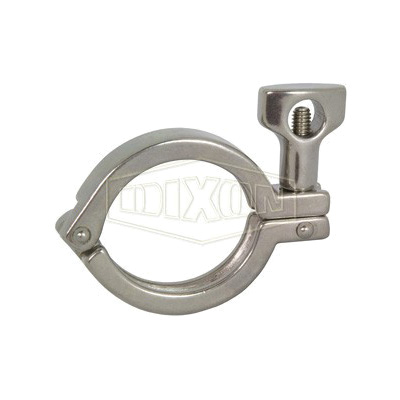

Dixon® 13MHHM800 Single Pin Heavy Duty Clamp With Wing Nut, 8 in Tube, 304 Stainless Steel, Domestic
CBPN:84896
MPN:13MHHM800
Price:
$46.69 / EA
DESCRIPTION
Dixon® Clamp, 1-Pin Heavy Duty, 8 in Tube, 25 in-lb Recommended Torque, 304 Stainless Steel, Domestic
Dixon® 13MHHM800 Single Pin Heavy Duty Clamp With Wing Nut, 8 in Tube, 304 Stainless Steel, Domestic
CBPN:84896
MPN:13MHHM800
Price:
$46.69 / EA
DESCRIPTION
Dixon® Clamp, 1-Pin Heavy Duty, 8 in Tube, 25 in-lb Recommended Torque, 304 Stainless Steel, Domestic
Specifications
Brand: Dixon®
Weight: 3.17 lbs
Tube Size: 8 in
Material: 304 Stainless Steel
Load Capacity: 25 in-lb
Manufacturer Name: Dixon Valve & Coupling
Recommended Torque: 25 in-lb
Type: 1-Pin Heavy Duty
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Wing nut tightened to 25 in-lb of torque
- 100 psi at 70 deg F and 50 psi at 250 deg F pressure
- Service pressure ratings are based on the following parameters: matching elastomer gasket and weld ferrules properly aligned and assembled with the clamps tightened to required torques, tests are done hydrostatically with no water hammer or shock loads
- Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures
