CRANE 33 Series Gate Valve

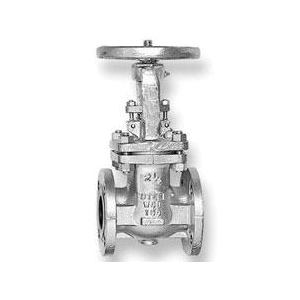

CRANE® L47XUF-2-1/2 47 Series Gate Valve, 2-1/2 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator

CBPN:11939

MPN:L47XUF-2-1/2

Price:
$724.95 / EA

DESCRIPTION

CRANE® Gate Valve, Series: 47 Series, 2-1/2 in Nominal, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 7-1/2 in Inlet to Outlet Length, 17 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 8 in Diameter Hand Wheel

CRANE® cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

CRANE® L47XUF-2-1/2 47 Series Gate Valve, 2-1/2 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator

CBPN:11939

MPN:L47XUF-2-1/2

Price:
$724.95 / EA

Crane logo

DESCRIPTION

CRANE® Gate Valve, Series: 47 Series, 2-1/2 in Nominal, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 7-1/2 in Inlet to Outlet Length, 17 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 8 in Diameter Hand Wheel

CRANE® cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

Specifications

BrandCRANE®
Weight55 lbs
Nominal Size2-1/2 in
End StyleFlanged
Pressure Class150 lb
Body MaterialCast Steel
Softgoods MaterialGraphite Packing
Actuator TypeHandwheel
Hand Wheel Diameter8 in
Inlet to Outlet Length7-1/2 in
Manufacturer NameCrane ChemPharma Energy
Pressure Rating285 psi
Series47 Series
Temperature Rating-20 to 100 deg F
Top to Inlet Center17 in
Trim Material410 Stainless Steel
Standards and ApprovalsASME B16.34 Steel Valves | ASME B16.10 Face to Face or End to End | ASME B16.5 Flange Dimension | ASME B.16.25 Wedge End | API 600 Basic Design | API 598 Testing | ASTM A216 Grade WCB

Item Features

  • Outside screw and yoke
  • Flexible wedge disc
  • All seat ring are seal welded as standard
  • Quality process fully documented, material fully traceable
  • Full range of special trims and option available
  • Standard construction: wcb-trim 8, other option are available
  • Crane recommends the use of manual or powered gear assistance for size 8 in and larger
  • F6/Hard faced nominal trim
  • 13 Cr ASTM A217 (CA 215) CoCra seating surface
