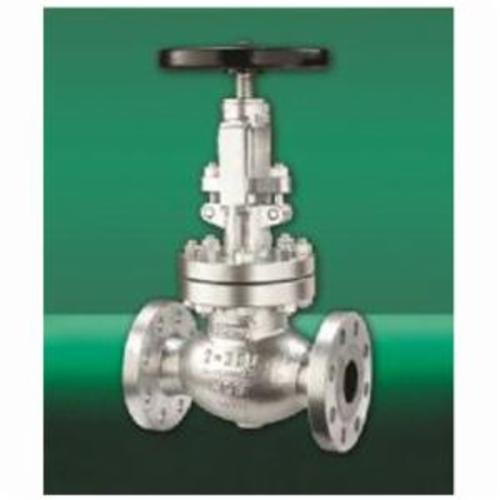

CRANE® L151XU-2-1/2 Globe Valve, 2-1/2 in Nominal, Flanged End Style, 300 lb, Cast Steel Body, Handwheel Actuator
CBPN:11957
MPN:L151XU-2-1/2
DESCRIPTION
CRANE® Globe Valve, Series: 151, 2-1/2 in Nominal, Flanged End Style, 740 psi Pressure, 300 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods
Crane globe valves are highly efficient for services requiring frequent operation and throttling when pressure drop across the valve is about 20 percent of inlet pressure. Closer throttling, creating higher pressure drops may cause cavitation or excessive velocities which could cause high noise levels, vibration and possible damage to the valve or adjacent piping.
CRANE® L151XU-2-1/2 Globe Valve, 2-1/2 in Nominal, Flanged End Style, 300 lb, Cast Steel Body, Handwheel Actuator
CBPN:11957
MPN:L151XU-2-1/2
DESCRIPTION
CRANE® Globe Valve, Series: 151, 2-1/2 in Nominal, Flanged End Style, 740 psi Pressure, 300 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods
Crane globe valves are highly efficient for services requiring frequent operation and throttling when pressure drop across the valve is about 20 percent of inlet pressure. Closer throttling, creating higher pressure drops may cause cavitation or excessive velocities which could cause high noise levels, vibration and possible damage to the valve or adjacent piping.
Specifications
Item Features
- Ideal for throttling service
- Flow characteristics permit accurate and repeatable flow control
- Seat ring is seal welded to eliminate leak path
- Outside screw and yoke
- Bolted Bonnet
