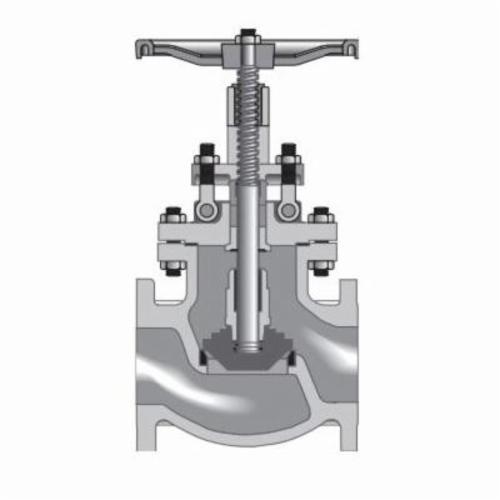

CRANE® L151-1/2XU-4 Globe Valve, 4 in Nominal, Butt Welded End Style, 300 lb, Cast Steel Body, Handwheel Actuator
CBPN:152474
MPN:L151-1/2XU-4
Price:
$4415.48 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Globe Valve, Series: 151-1/2, 4 in Nominal, Butt Welded End Style, 740 psi Pressure, 300 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 14 in Inlet to Outlet Length, 21 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 14 in Diameter Hand Wheel
CRANE® L151-1/2XU-4 Globe Valve, 4 in Nominal, Butt Welded End Style, 300 lb, Cast Steel Body, Handwheel Actuator
CBPN:152474
MPN:L151-1/2XU-4
Price:
$4415.48 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Globe Valve, Series: 151-1/2, 4 in Nominal, Butt Welded End Style, 740 psi Pressure, 300 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 14 in Inlet to Outlet Length, 21 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 14 in Diameter Hand Wheel
Specifications
Brand: CRANE®
Weight: 181 lbs
Nominal Size: 4 in
End Style: Butt Welded
Pressure Class: 300 lb
Body Material: Cast Steel
Actuator Type: Handwheel
Hand Wheel Diameter: 14 in
Inlet to Outlet Length: 14 in
Manufacturer Name: Crane ChemPharma Energy
Pressure Rating: 740 psi
Series: 151-1/2
Softgoods Material: Graphite Packing
Temperature Rating: -20 to 100 deg F
Top to Inlet Center: 21 in
Trim Material: 410 Stainless Steel
Standards and Approvals: ASME B16.34 Steel Valve | ASME B16.10 Face to Face/ End to End | ASME B16.5 Flange Dimension | ASME B.16.25 Weld End | API 598 Testing | A216 WCB Body/Bonnet
Item Features
- Outside screw and yoke
- Bolted Bonnet
- Standard construction: wcb-trim 8, other option are available, Crane recommends the use of manual or powered gear assistance for size 6 in and larger
