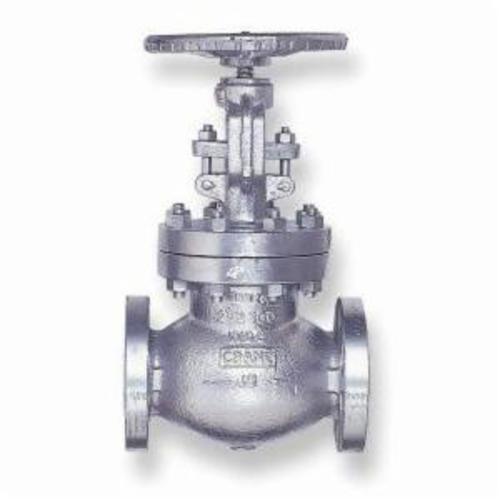

CRANE® L143XU-4 Globe Valve, 4 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator
CBPN:11953
MPN:L143XU-4
Price:
$1277.59 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Globe Valve, Series: 143, 4 in Nominal, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 11-1/2 in Inlet to Outlet Length, 19 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 12 in Diameter Hand Wheel
CRANE® L143XU-4 Globe Valve, 4 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator
CBPN:11953
MPN:L143XU-4
Price:
$1277.59 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Globe Valve, Series: 143, 4 in Nominal, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 11-1/2 in Inlet to Outlet Length, 19 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 12 in Diameter Hand Wheel
Specifications
Brand: CRANE®
Weight: 143 lbs
Nominal Size: 4 in
End Style: Flanged
Pressure Class: 150 lb
Body Material: Cast Steel
Actuator Type: Handwheel
Hand Wheel Diameter: 12 in
Inlet to Outlet Length: 11-1/2 in
Manufacturer Name: Crane ChemPharma Energy
Pressure Rating: 285 psi
Series: 143
Softgoods Material: Graphite Packing
Temperature Rating: -20 to 100 deg F
Top to Inlet Center: 19 in
Trim Material: 410 Stainless Steel
Standards and Approvals: ANSI B16.34 Steel Valve | ANSI B16.10 Face To Face/End To End | ANSI B16.5 Flange Dimension | API 598 Testing | API RP591 Acceptence | ASTM A216 Grade WCB Body
Item Features
- Ideal for throttling service
- Flow characteristics permit accurate and repeatable flow control
- Seat ring is seal welded to eliminate leak path
- Outside screw and yoke
- Bolted bonnets
