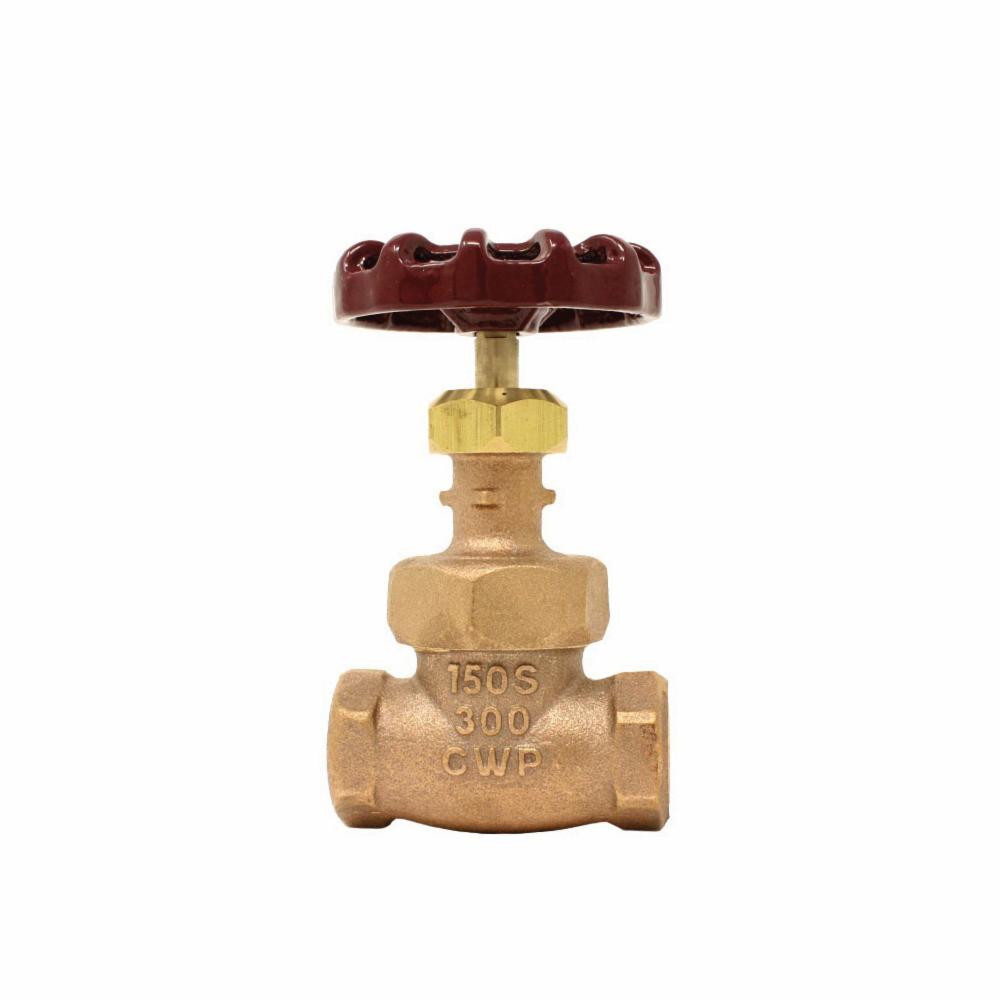

CRANE® 7TF-1 Globe Valve, 1 in Nominal, Thread End Style, 150 lb, Bronze Body, Handwheel Actuator
CBPN:11857
MPN:7TF-1
Price:
$298.24 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 7TF, 1 in Nominal, Thread End Style, 150 lb Pressure Class, Handwheel Actuator, 3-1/2 in Inlet to Outlet Length, 5.59 in Top to Inlet Center, Bronze Body, Bronze Trim, Synthetic Glass Fiber with Nitrile Binder Gasket/Graphite Asbestos-Free Packing Softgoods, 4.02 in Diameter Hand Wheel
CRANE® 7TF-1 Globe Valve, 1 in Nominal, Thread End Style, 150 lb, Bronze Body, Handwheel Actuator
CBPN:11857
MPN:7TF-1
Price:
$298.24 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 7TF, 1 in Nominal, Thread End Style, 150 lb Pressure Class, Handwheel Actuator, 3-1/2 in Inlet to Outlet Length, 5.59 in Top to Inlet Center, Bronze Body, Bronze Trim, Synthetic Glass Fiber with Nitrile Binder Gasket/Graphite Asbestos-Free Packing Softgoods, 4.02 in Diameter Hand Wheel
Specifications
Brand: CRANE®
Weight: 3.21 lbs
Nominal Size: 1 in
End Style: Thread
Pressure Class: 150 lb
Body Material: Bronze
Actuator Type: Handwheel
Hand Wheel Diameter: 4.02 in
Inlet to Outlet Length: 3-1/2 in
Manufacturer Name: Crane ChemPharma Energy
Series: 7TF
Softgoods Material: Synthetic Glass Fiber with Nitrile Binder Gasket/Graphite Asbestos-Free Packing
Top to Inlet Center: 5.59 in
Trim Material: Bronze
Application: Marine, General Services Plumbing, Commercial Plumbing, Industrial Plumbing and HVAC
Standards and Approvals: ASTM B62 C83600 Body/Bonnet | ASTM B371 C69400 Stem | MSS SP-80 | Type 1
Item Features
- Full pressure class offering: Class 125, Class 150, class 200, Class 300, 200 CWP and 300 CWP
- Wide option range seat, disc, trims, and connection type
- Union bonnets
- PTFE disc
