CRANE 431UB Series Gate Valve

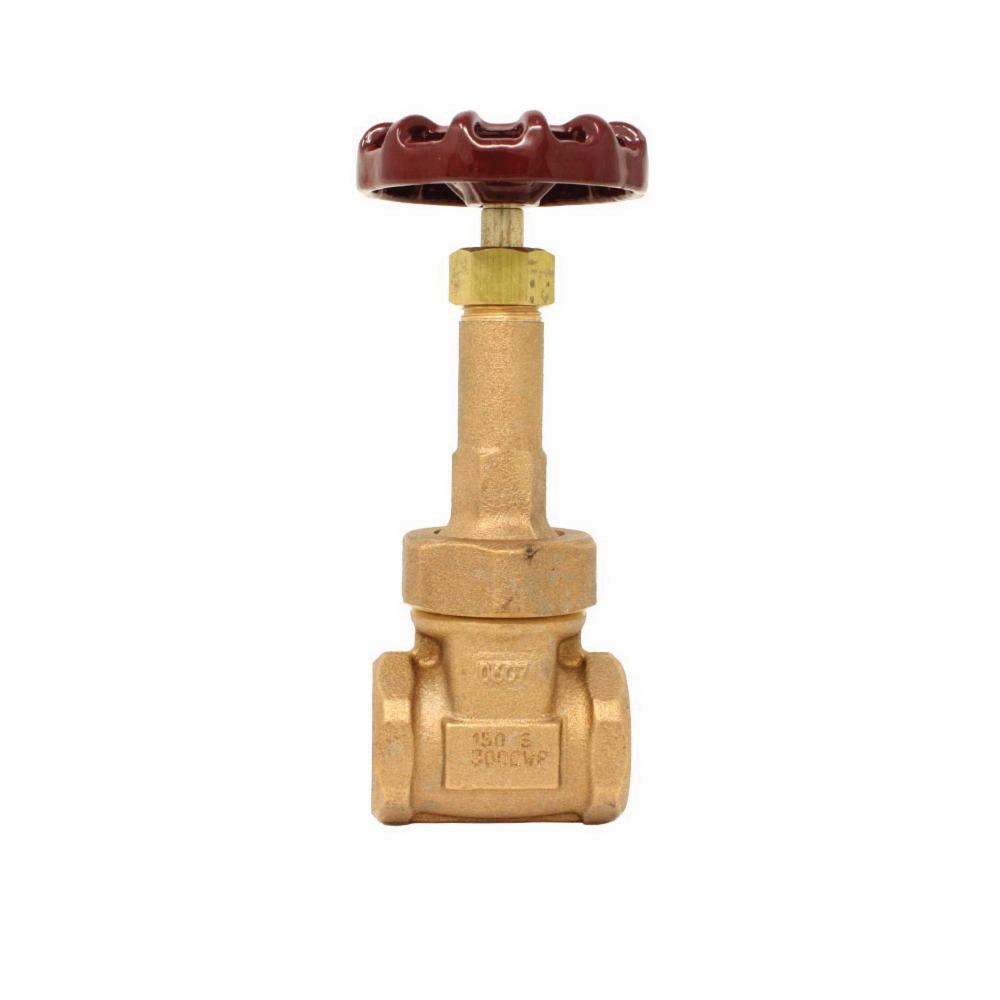

CRANE® 431UB-1-1/2 Gate Valve, 1-1/2 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator

CBPN:11818

MPN:431UB-1-1/2

Price:
$558.35 / EA

DESCRIPTION

CRANE® Gate Valve, Series: 431UB, 1-1/2 in Nominal, FNPT End Style, 300 psi Pressure, 150 lb Pressure Class, -20 to 150 deg F, Handwheel Actuator, 2.85 in Inlet to Outlet Length, 9.68 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Graphite Asbestos Free Packing/Synthetic Glass Fiber Nitrile Filled Gasket Softgoods, 3.62 in Diameter Hand Wheel

CRANE® bronze gate valves have stood up to commercial and industrial services for more than a century.

**Price shown is based on tariffs in place TODAY. Better pricing may be available based on quantity on hand in Plymouth Meeting, PA. Contact us for pricing. **

CRANE® 431UB-1-1/2 Gate Valve, 1-1/2 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator

CBPN:11818

MPN:431UB-1-1/2

Price:
$558.35 / EA

Crane logo

DESCRIPTION

CRANE® Gate Valve, Series: 431UB, 1-1/2 in Nominal, FNPT End Style, 300 psi Pressure, 150 lb Pressure Class, -20 to 150 deg F, Handwheel Actuator, 2.85 in Inlet to Outlet Length, 9.68 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Graphite Asbestos Free Packing/Synthetic Glass Fiber Nitrile Filled Gasket Softgoods, 3.62 in Diameter Hand Wheel

CRANE® bronze gate valves have stood up to commercial and industrial services for more than a century.

**Price shown is based on tariffs in place TODAY. Better pricing may be available based on quantity on hand in Plymouth Meeting, PA. Contact us for pricing. **

Specifications

BrandCRANE®
Weight4.9 lbs
Nominal Size1-1/2 in
End StyleFNPT
Pressure Class150 lb
Body MaterialBronze
Softgoods MaterialGraphite Asbestos Free Packing/Synthetic Glass Fiber Nitrile Filled Gasket
Actuator TypeHandwheel
Hand Wheel Diameter3.62 in
Inlet to Outlet Length2.85 in
Manufacturer NameCrane ChemPharma Energy
Pressure Rating300 psi
Series431UB
Temperature Rating-20 to 150 deg F
Top to Inlet Center9.68 in
Trim MaterialCopper Silicon Bronze
Standards and ApprovalsASTM B62 C83600 Body | ASTM B-371 69400 Stem | MSS SP-80 Type 2

Item Features

  • Union bonnets
  • Rising stem
  • Highly specified and proven performer for commercial and industrial piping application
  • Wide option range seat, disc, trims, and connection type
