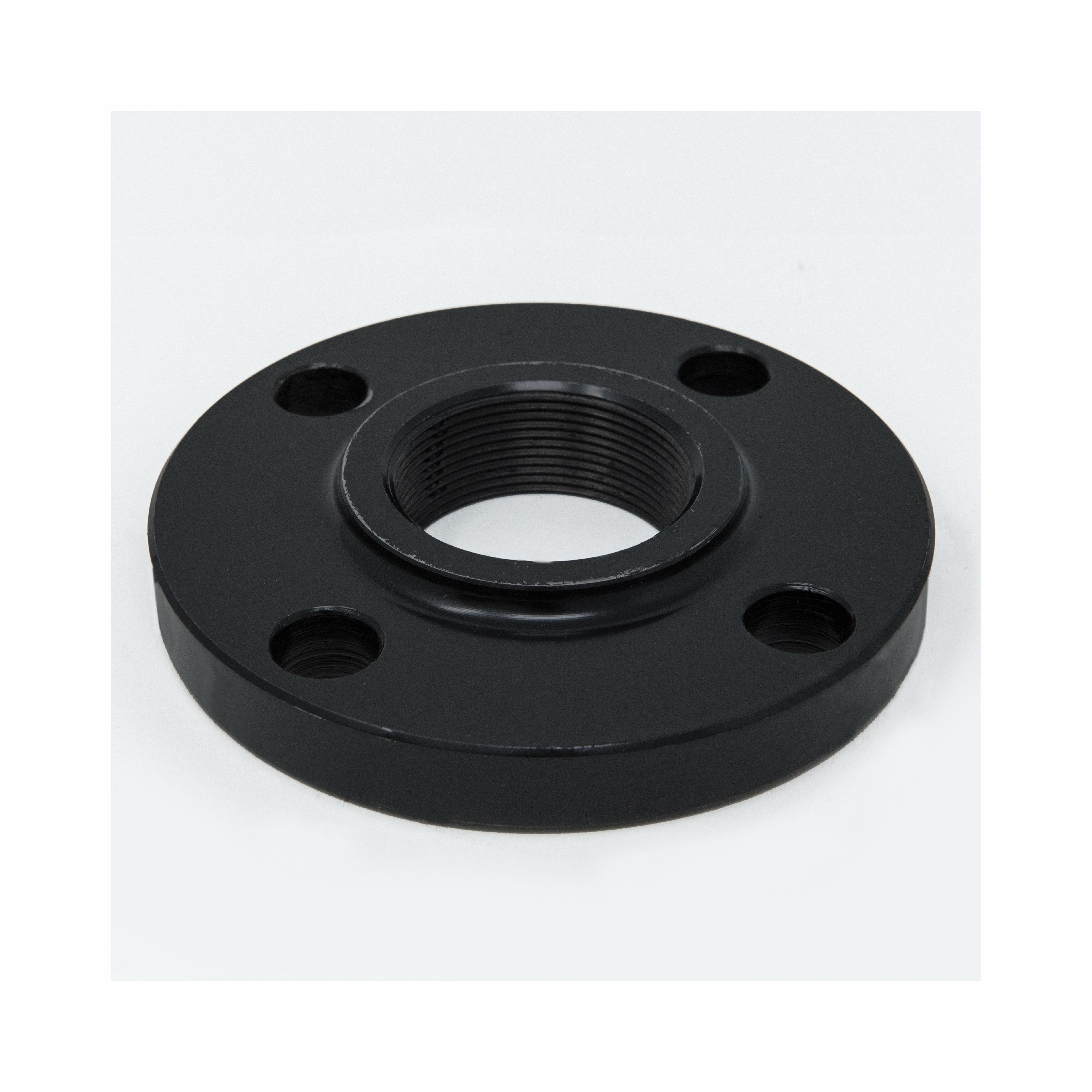

Raised Face Flange, 3/4 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb, Import
CBPN:20464
MPN:P354859_1
Price:
$22.01 / EA
DESCRIPTION
Flange, Raised Face, 3/4 in Nominal, 0.56 in Thickness, 3-1/4 in Diameter Bolt Circle, 4 Bolt Holes, 3/4 in Bolt Hole, Threaded Connection, 4.62 in OD, 740 psig Pressure, 300 lb Pressure Class, -20 to 1000 deg F, 1.88 in Diameter Hub, 0.94 in Length Through Hub, Carbon Steel, Import
Raised Face Flange, 3/4 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb, Import
CBPN:20464
MPN:P354859_1
Price:
$22.01 / EA
DESCRIPTION
Flange, Raised Face, 3/4 in Nominal, 0.56 in Thickness, 3-1/4 in Diameter Bolt Circle, 4 Bolt Holes, 3/4 in Bolt Hole, Threaded Connection, 4.62 in OD, 740 psig Pressure, 300 lb Pressure Class, -20 to 1000 deg F, 1.88 in Diameter Hub, 0.94 in Length Through Hub, Carbon Steel, Import
Specifications
Brand: Cooney Approved
Weight: 3 lbs
Nominal Size: 3/4 in
Material: Forged Carbon Steel
Connection Type: Thread
Pressure Class: 300 lb
Bolt Circle Diameter: 3-1/4 in
Bolt Hole Size: 3/4 in
Hub Diameter: 1.88 in
Length Through Hub: 0.94 in
Manufacturer Name: Cooney Approved
Number of Bolt Holes: 4
Outside Diameter: 4.62 in
Pressure Rating: 740 psig
Temperature Rating: -20 to 1000 deg F
Thickness: 0.56 in
Type: Raised Face
Domestic/Import: Import
Country of Origin: US
