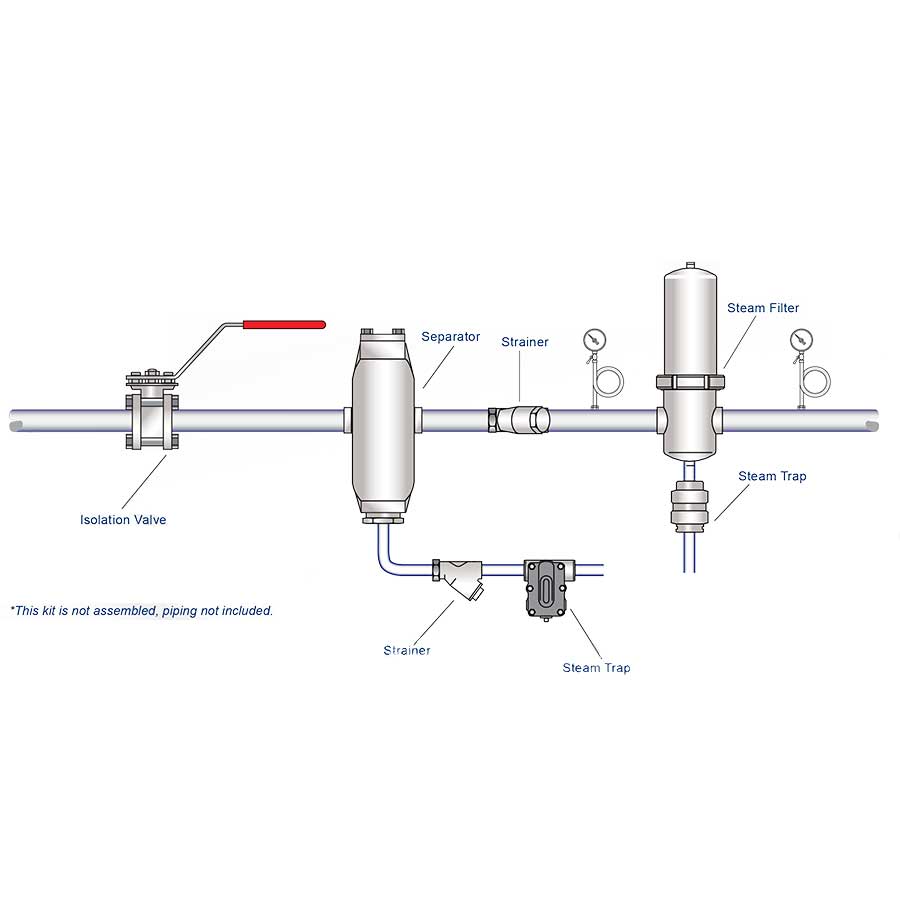

Clean Steam Filter Housings

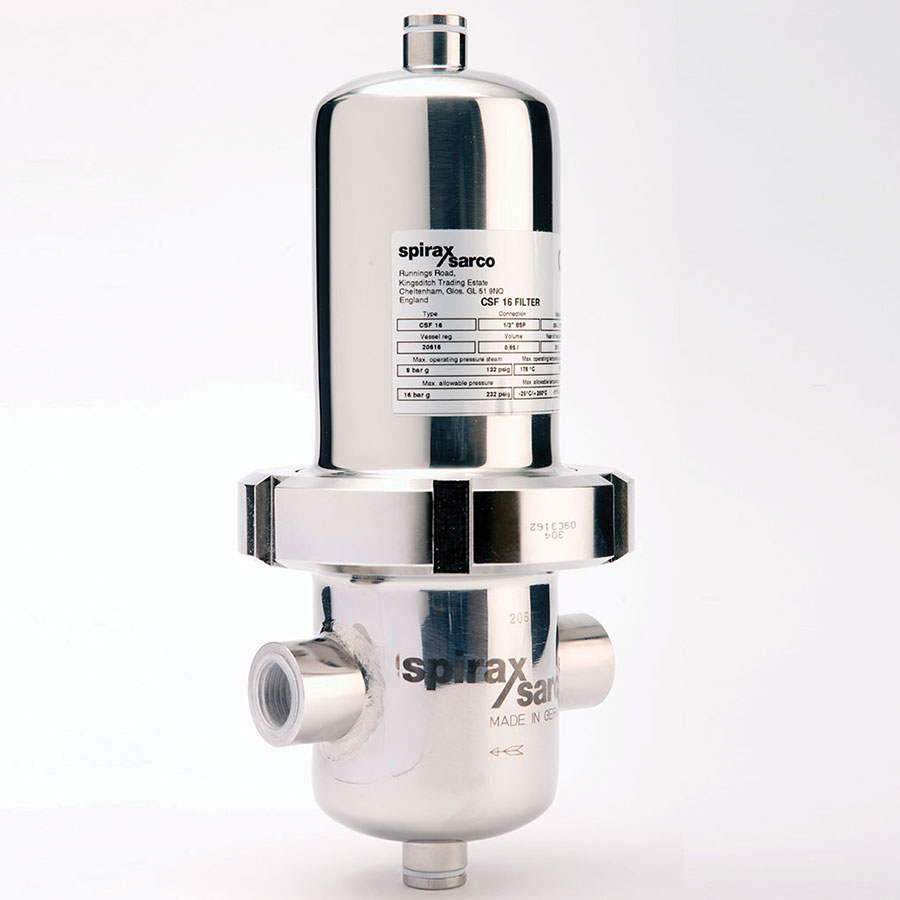

Filters are an important part of every steam system. Spirax Sarco CSF16 filters are a line of Culinary Steam Filters and Filter Stations specially designed for use in food and beverage plants. The CSF16 Filter housing is made from 316L stainless steel, and is available with NPT (1/2” to 2”) and ASME 150 flanged (2-1/2” to 8”) end connections. Other sizes and end connection types are available upon request.

CSF16 filter elements are available as 1 micron and 5 micron. When fitted with a 5 micron element, CSF16 filters are capable of removing 95% of particles 2 microns and larger in size, meeting 3A requirements. Learn more about Spirax Sarco CSF Filters and replacement filter elements, including when they should be replaced, in our blog post.
