Bonomi North America DA531S-2-1/2

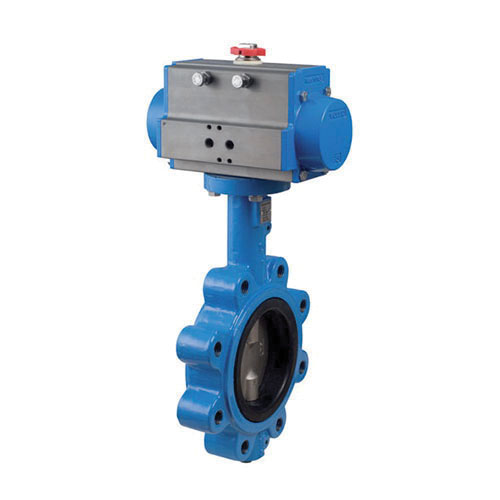

Bonomi DA531S-2-1/2 531S 2-Way Rubber Lined Direct Mount Lug Style Pneumatic Actuated Butterfly Valve, Double Acting, 2-1/2 in, Ductile Iron Body, Viton Softgoods, Import

CBPN:228871

MPN:DA531S-2-1/2

Price:
$406.33 / EA
Prop 65:

DESCRIPTION

Bonomi North America Butterfly Valve Package, 2-Way Rubber Lined Direct Mount Lug Style, Series: 531S, 2-1/2 in Nominal, Flanged, Media: Water, Double Acting Pneumatic Actuator, 1.76 in Inlet to Outlet Length, Ductile Iron Body, Stainless Steel Disc, Carbon Steel (Locating Pin) Stem & Pin Material, EPDM, Epoxy Powder Coated, Import

Bonomi DA531S-2-1/2 531S 2-Way Rubber Lined Direct Mount Lug Style Pneumatic Actuated Butterfly Valve, Double Acting, 2-1/2 in, Ductile Iron Body, Viton Softgoods, Import

CBPN:228871

MPN:DA531S-2-1/2

Price:
$406.33 / EA

Prop 65:
Bonomi Valve logo

DESCRIPTION

Bonomi North America Butterfly Valve Package, 2-Way Rubber Lined Direct Mount Lug Style, Series: 531S, 2-1/2 in Nominal, Flanged, Media: Water, Double Acting Pneumatic Actuator, 1.76 in Inlet to Outlet Length, Ductile Iron Body, Stainless Steel Disc, Carbon Steel (Locating Pin) Stem & Pin Material, EPDM, Epoxy Powder Coated, Import

Specifications

BrandBonomi North America
Weight11.5 lbs
Nominal Size2-1/2 in
End StyleLug
Body MaterialDuctile Iron
Type2-Way Rubber Lined Direct Mount Lug Style
Disc MaterialStainless Steel
Softgoods MaterialViton
Actuator TypeDouble Acting Pneumatic
FinishEpoxy Powder Coated
Inlet to Outlet Length1.76 in
Manufacturer NameBonomi North America
MediaWater
Series531S
Stem & Pin MaterialCarbon Steel (Locating Pin)
Warranty1 Year
Domestic/ImportImport
Country of OriginIT
Standards and ApprovalsASTM A351 Grade CF8M Disc | API-609 | MSS SP-67 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. | CSA Approved

Item Features

  • ISO 5211 direct mounting pad/square stem
  • Floating dual shaft disc design
  • No pins in disc prevent potential leak points
  • Dead end service to 100 psi
  • FKM seat
  • EPDM O-ring
