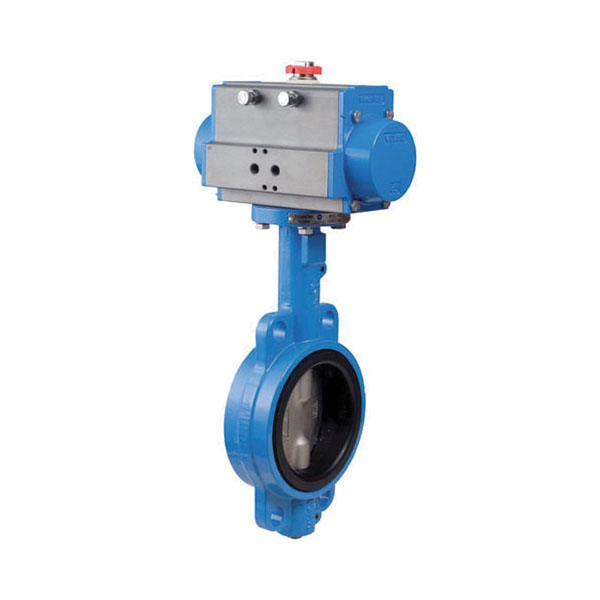

Bonomi DA530S-3 530S 2-Way Rubber Lined Direct Mount Wafer Style Pneumatic Actuated Butterfly Valve, Double Acting, 3 in, Cast Iron Body, Viton Softgoods, Import
CBPN:229533
MPN:DA530S-3
Price:
$441.99 / EA
Prop 65:
DESCRIPTION
Bonomi North America Butterfly Valve Package, 2-Way Rubber Lined Direct Mount Wafer Style, Series: 530S, 3 in Nominal, Flanged, Media: Water, Double Acting Pneumatic Actuator, 1.78 in Inlet to Outlet Length, Cast Iron Body, Stainless Steel Disc, Carbon Steel (Locating Pin) Stem & Pin Material, EPDM, Epoxy Powder Coated, Import
Bonomi DA530S-3 530S 2-Way Rubber Lined Direct Mount Wafer Style Pneumatic Actuated Butterfly Valve, Double Acting, 3 in, Cast Iron Body, Viton Softgoods, Import
CBPN:229533
MPN:DA530S-3
Price:
$441.99 / EA
Prop 65:
DESCRIPTION
Bonomi North America Butterfly Valve Package, 2-Way Rubber Lined Direct Mount Wafer Style, Series: 530S, 3 in Nominal, Flanged, Media: Water, Double Acting Pneumatic Actuator, 1.78 in Inlet to Outlet Length, Cast Iron Body, Stainless Steel Disc, Carbon Steel (Locating Pin) Stem & Pin Material, EPDM, Epoxy Powder Coated, Import
Specifications
Brand: Bonomi North America
Weight: 11.7 lbs
Nominal Size: 3 in
End Style: Wafer
Body Material: Cast Iron
Type: 2-Way Rubber Lined Direct Mount Wafer Style
Disc Material: Stainless Steel
Softgoods Material: Viton
Actuator Type: Double Acting Pneumatic
Finish: Epoxy Powder Coated
Inlet to Outlet Length: 1.78 in
Manufacturer Name: Bonomi North America
Media: Water
Series: 530S
Stem & Pin Material: Carbon Steel (Locating Pin)
Warranty: 1 Year
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: ASTM A351 Grade CF8M Disc | API-609 | MSS SP-67 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. | CSA Approved
Item Features
- ISO 5211 direct mounting pad/square stem
- Floating dual shaft disc design
- No pins in disc prevent potential leak points
- FKM seat
- EPDM O-ring
