Bonomi North America 8EPVCBV2-002-1-1/2

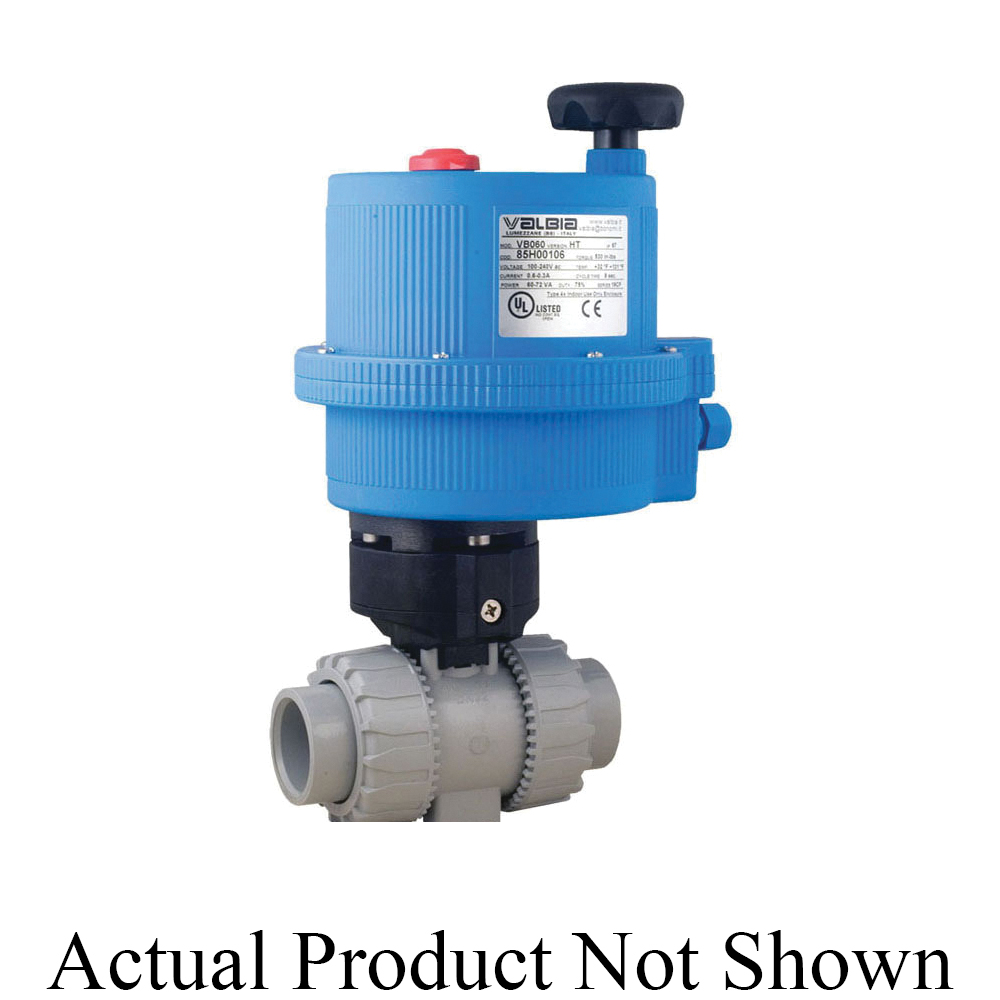

Bonomi 8EPVCBV2-002-1-1/2 2-Way Direct Mount Electric Actuated Ball Valve, 1-1/2 in, FNPT x Socket Weld, PVC Body, 24 VDC, Import

CBPN:228364

MPN:8EPVCBV2-002-1-1/2

Price:
$653.13 / EA

DESCRIPTION

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: PVC-BV2, 1-1/2 in Nominal, 24 VDC, FNPT x Socket Weld, 232 psi, 73 deg F, Full Port, On/Off Electric Actuator, 6.77 in Inlet to Outlet Length, 9.66 in Top to Inlet Center, PVC Body, PTFE Trim, EPDM, 6.41 in L x 4.84 in W x 11.71 in H, Import

The valve body, stem, ball and unions shall be made of PVC compound which shall meet classification 12454 of ASTM D 1784.The ball seats shall be made of PTFE and the O-Ring seals shall be made of EPDM. The PVC IPS/Socket connectors shall conform to the dimensional standards ASTM D2466 and ASTM D2467 and the CPVC shall conform to the dimensional standard ASTM F439 (2-way only). The NPT PVC connectors shall conform to the dimensional standards of ASTM D2464, ASTM F1498 and ANSI B1.20.1 thread depths. The electric actuator shall be made from a light weight techno polymer housing, incorporate two auxiliary limit switches, a torque limiter, heater and thermostat, a 75% duty cycle, dual voltage motors and a NEMA 4 enclosure.

Bonomi 8EPVCBV2-002-1-1/2 2-Way Direct Mount Electric Actuated Ball Valve, 1-1/2 in, FNPT x Socket Weld, PVC Body, 24 VDC, Import

CBPN:228364

MPN:8EPVCBV2-002-1-1/2

Price:
$653.13 / EA

Bonomi Valve logo

DESCRIPTION

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: PVC-BV2, 1-1/2 in Nominal, 24 VDC, FNPT x Socket Weld, 232 psi, 73 deg F, Full Port, On/Off Electric Actuator, 6.77 in Inlet to Outlet Length, 9.66 in Top to Inlet Center, PVC Body, PTFE Trim, EPDM, 6.41 in L x 4.84 in W x 11.71 in H, Import

The valve body, stem, ball and unions shall be made of PVC compound which shall meet classification 12454 of ASTM D 1784.The ball seats shall be made of PTFE and the O-Ring seals shall be made of EPDM. The PVC IPS/Socket connectors shall conform to the dimensional standards ASTM D2466 and ASTM D2467 and the CPVC shall conform to the dimensional standard ASTM F439 (2-way only). The NPT PVC connectors shall conform to the dimensional standards of ASTM D2464, ASTM F1498 and ANSI B1.20.1 thread depths. The electric actuator shall be made from a light weight techno polymer housing, incorporate two auxiliary limit switches, a torque limiter, heater and thermostat, a 75% duty cycle, dual voltage motors and a NEMA 4 enclosure.

Specifications

BrandBonomi North America
Weight7.1 lbs
Nominal Size1-1/2 in
End StyleFNPT x Socket Weld
Body MaterialPVC
Electrical Ratings24 VDC
Actuator TypeOn/Off Electric
Dimensions6.41 in L x 4.84 in W x 11.71 in H
Inlet to Outlet Length6.77 in
Manufacturer NameBonomi North America
Port TypeFull
Pressure Rating232 psi
SeriesPVC-BV2
Softgoods MaterialEPDM
Temperature Rating73 deg F
Top to Inlet Center9.66 in
Trim MaterialPTFE
Type2-Way Direct Mount
Warranty1 Year
Domestic/ImportImport
Country of OriginIT
Standards and ApprovalsANSI B1.20.1 Thread | ASTM D1784/D2466/D2467/D2464/F1498 | UL Listed | CSA Approved

Item Features

  • Dual union nut locks
  • PTFE ball seats
  • EPDM seal/seat
  • Valbia UL approved standard on/off plastic electric actuator
