Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3100, 3/4 in Nominal, 24 VDC, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 0.69 in Orifice, Modulating Electric Actuator, 3.19 in Inlet to Outlet Length, 9.12 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/Delrin Trim, FKM/PTFE, 7.48 in L x 6.18 in W x 10.53 in H, Import

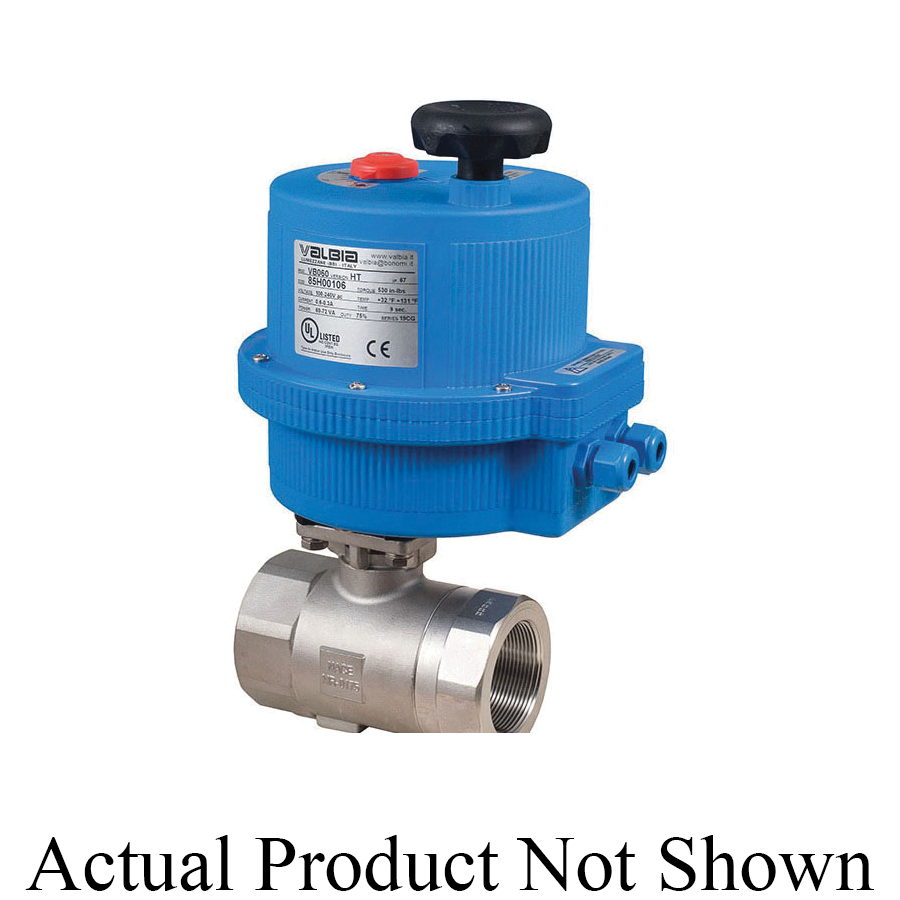

The Bonomi 8E3000 series electric actuated package features a 3000 psi stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and an investment cast CF8M body. The Valbia electric VB series actuator fits directly over the 3100 series square stem and ISO 5211 pad. The actuator also is standardly furnished with dual voltages, two extra limit switches, torque limiter, extended manual override, 75% duty cycle motor, in a IP67, NEMA 4, 4X techno polymer housing.
