Bonomi North America 8E0620-001-2-1/2

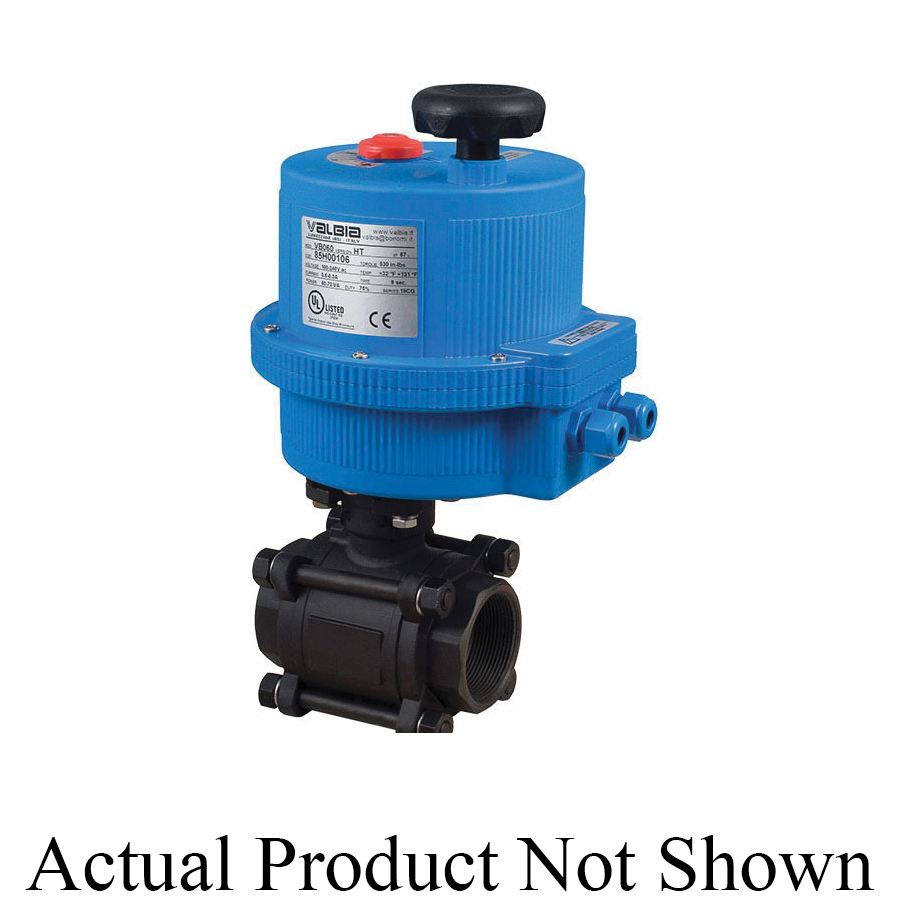

Bonomi 8E0620-001-2-1/2 3-Piece 2-Way Direct Mount Electric Actuated Ball Valve, 2-1/2 in, FNPT, Carbon Steel Body, 12 VDC, Import

CBPN:228898

MPN:8E0620-001-2-1/2

Price:
$1354.12 / EA

DESCRIPTION

Bonomi North America Ball Valve Package, 3-Piece 2-Way Direct Mount, Series: 620LL, 2-1/2 in Nominal, 12 VDC, FNPT, 800 psi/150 psi Steam, -60 to 440 deg F, Full Port, Media: Steam, 2-1/2 in Orifice, On/Off Electric Actuator, 6.46 in Inlet to Outlet Length, 20.2 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/TFM-1600 Trim, FKM/PTFE/RTFE/25% Fiberglass + PTFE, 8.31 in L x 8.31 in W x 22.55 in H, Import

The Bonomi 8E0620 series features a complete ISO direct mount with square stem, full port 3-piece investment cast carbon steel ball valve, with TFM-1600 seats and a 1000 psi pressure rating. It also features a multiple V-ring style stem packing and Belleville washers for live loading. The valve is standardly furnished with a 316 Stainless steel ball and stem. The actuator is a Valbia VB series, incorporating standard dual voltages, 2 extra limit switches, a heater and thermostat, torque limiter, ISO dual patterns, square drive, position indicator, PG11 connections and a 75% duty cycle.

Bonomi 8E0620-001-2-1/2 3-Piece 2-Way Direct Mount Electric Actuated Ball Valve, 2-1/2 in, FNPT, Carbon Steel Body, 12 VDC, Import

CBPN:228898

MPN:8E0620-001-2-1/2

Price:
$1354.12 / EA

Bonomi Valve logo

DESCRIPTION

Bonomi North America Ball Valve Package, 3-Piece 2-Way Direct Mount, Series: 620LL, 2-1/2 in Nominal, 12 VDC, FNPT, 800 psi/150 psi Steam, -60 to 440 deg F, Full Port, Media: Steam, 2-1/2 in Orifice, On/Off Electric Actuator, 6.46 in Inlet to Outlet Length, 20.2 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/TFM-1600 Trim, FKM/PTFE/RTFE/25% Fiberglass + PTFE, 8.31 in L x 8.31 in W x 22.55 in H, Import

The Bonomi 8E0620 series features a complete ISO direct mount with square stem, full port 3-piece investment cast carbon steel ball valve, with TFM-1600 seats and a 1000 psi pressure rating. It also features a multiple V-ring style stem packing and Belleville washers for live loading. The valve is standardly furnished with a 316 Stainless steel ball and stem. The actuator is a Valbia VB series, incorporating standard dual voltages, 2 extra limit switches, a heater and thermostat, torque limiter, ISO dual patterns, square drive, position indicator, PG11 connections and a 75% duty cycle.

Specifications

BrandBonomi North America
Weight31.8 lbs
Nominal Size2-1/2 in
End StyleFNPT
Body MaterialCarbon Steel
Electrical Ratings12 VDC
Actuator TypeOn/Off Electric
Dimensions8.31 in L x 8.31 in W x 22.55 in H
Inlet to Outlet Length6.46 in
Manufacturer NameBonomi North America
MediaSteam
Orifice Size2-1/2 in
Port TypeFull
Pressure Rating800 psi/150 psi Steam
Series620LL
Softgoods MaterialFKM/PTFE/RTFE/25% Fiberglass + PTFE
Temperature Rating-60 to 440 deg F
Top to Inlet Center20.2 in
Trim Material316 Stainless Steel/TFM-1600
Type3-Piece 2-Way Direct Mount
Warranty1 Year
Domestic/ImportImport
Country of OriginIT
Standards and ApprovalsASTM Grade WCB Body | UL Listed

Item Features

  • Blow out proof stem, multi-layer V-ring adjustable stem packing
  • TFM-1600 seats, PTFE packing and thrust washer
  • ISO 5211 mounting pad with square stem
  • 316 stainless steel stem/spring
  • RTFE stem seal
  • PTFE join gasket
  • FKM O-ring
  • PTFE + 25% fiber glass stem packing
  • Valbia UL approved standard on/off plastic electric actuator
