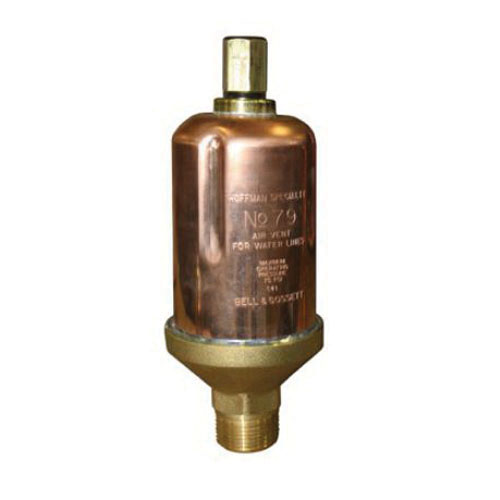

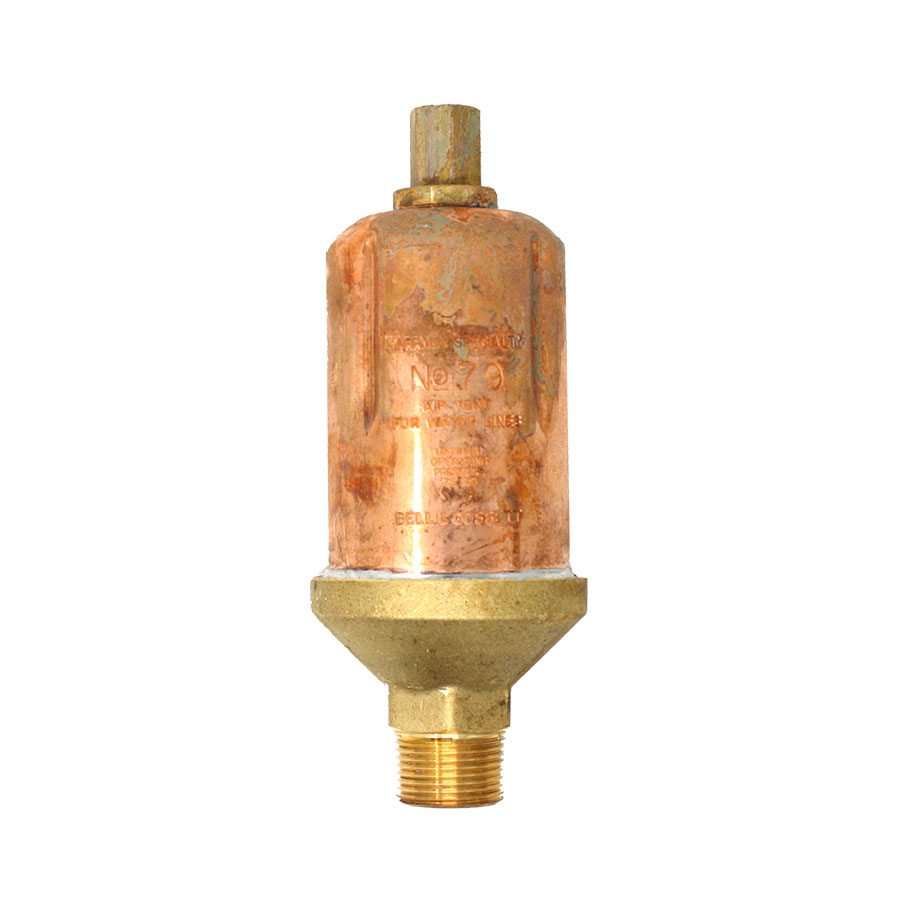

Bell & Gossett Hoffman Specialty® 401488 79 Series Water Main Vent Valve, NPT, 75 psi, Brass Body
CBPN:7109
MPN:401488
Price:
$199.64 / EA
DESCRIPTION
Bell & Gossett Hoffman Specialty® Vent Valve, Water Main, Series: 79 Series, NPT, 75 psi, 250 deg F, Media: Water, 6-5/8 in Inlet to Outlet Length, Brass Body, 2-1/2 in W
Bell & Gossett Hoffman Specialty® 401488 79 Series Water Main Vent Valve, NPT, 75 psi, Brass Body
CBPN:7109
MPN:401488
Price:
$199.64 / EA
Specifications
Brand: Bell & Gossett
Weight: 1 lbs
End Style: NPT
Pressure Rating: 75 psi
Body Material: Brass
Dimensions: 2-1/2 in W
Inlet to Outlet Length: 6-5/8 in
Manufacturer Name: Xylem
Media: Water
Series: 79 Series
Temperature Rating: 250 deg F
Type: Water Main
Item Features
- For use on hot or cold or glycol water mains and process applications with specific gravity greater than 0.7
- Tapped at top for 1/8 in NPT safety drain connection for discharging moisture
- Removable top
- Built-in check valve
- 1/2 in NPT female and 3/4 in NPT male straight shank
- 200 psig maximum hydrostatic pressure
