Bell & Gossett 113076

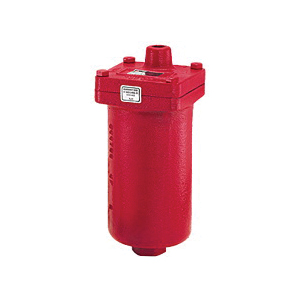

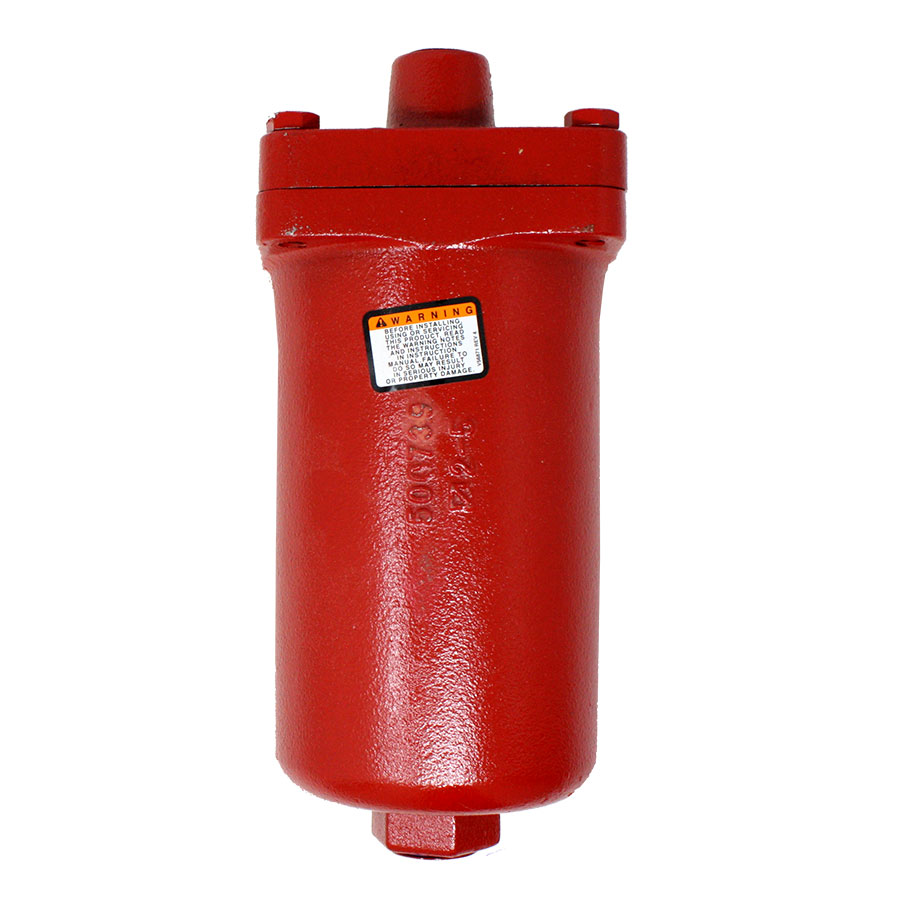

Bell & Gossett 113076 High Capacity Air Vent, 3/4 in, FNPT, 150 psi, Cast Iron Body

CBPN:19127

UPC:683328130767

MPN:113076

Price:
$1119.04 / EA

DESCRIPTION

Bell & Gossett High Capacity Air Vent, 3/4 in, FNPT, 150 psi, 250 deg F, Cast Iron Body, 4-1/2 in W x 9-5/8 in H

A rugged High Capacity Air Vent designed to purge free air from liquid systems at operating pressure up to 150 psig. The Model 107A Air Vent has cast iron body and bonnet, with stainless steel, brass and EPDM internal components and is suitable for a maximum operating temperature of 250 deg F. The Air Vent has a 3/4 in NPT inlet and 3/8 in NPT outlet.

Bell & Gossett 113076 High Capacity Air Vent, 3/4 in, FNPT, 150 psi, Cast Iron Body

CBPN:19127

MPN:113076

UPC:683328130767

Price:
$1119.04 / EA

Bell & Gossett Logo

DESCRIPTION

Bell & Gossett High Capacity Air Vent, 3/4 in, FNPT, 150 psi, 250 deg F, Cast Iron Body, 4-1/2 in W x 9-5/8 in H

A rugged High Capacity Air Vent designed to purge free air from liquid systems at operating pressure up to 150 psig. The Model 107A Air Vent has cast iron body and bonnet, with stainless steel, brass and EPDM internal components and is suitable for a maximum operating temperature of 250 deg F. The Air Vent has a 3/4 in NPT inlet and 3/8 in NPT outlet.

Specifications

BrandBell & Gossett
Weight11 lbs
Nominal Size3/4 in
End StyleFNPT
Pressure Rating150 psi
Body MaterialCast Iron
Dimensions4-1/2 in W x 9-5/8 in H
Manufacturer NameXylem
Temperature Rating250 deg F

Item Features

  • Float actuated operation for the instant venting of free air at pressures up to 150 psig
  • Rugged cast iron construction with stainless steel, brass and EPDM internal components
  • Positive shutoff at pressures up to 150 psig
  • Model 107A
