Bell & Gossett 113021

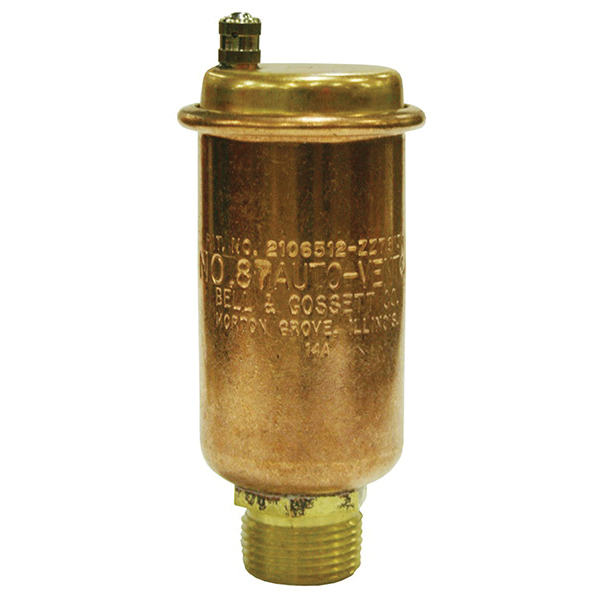

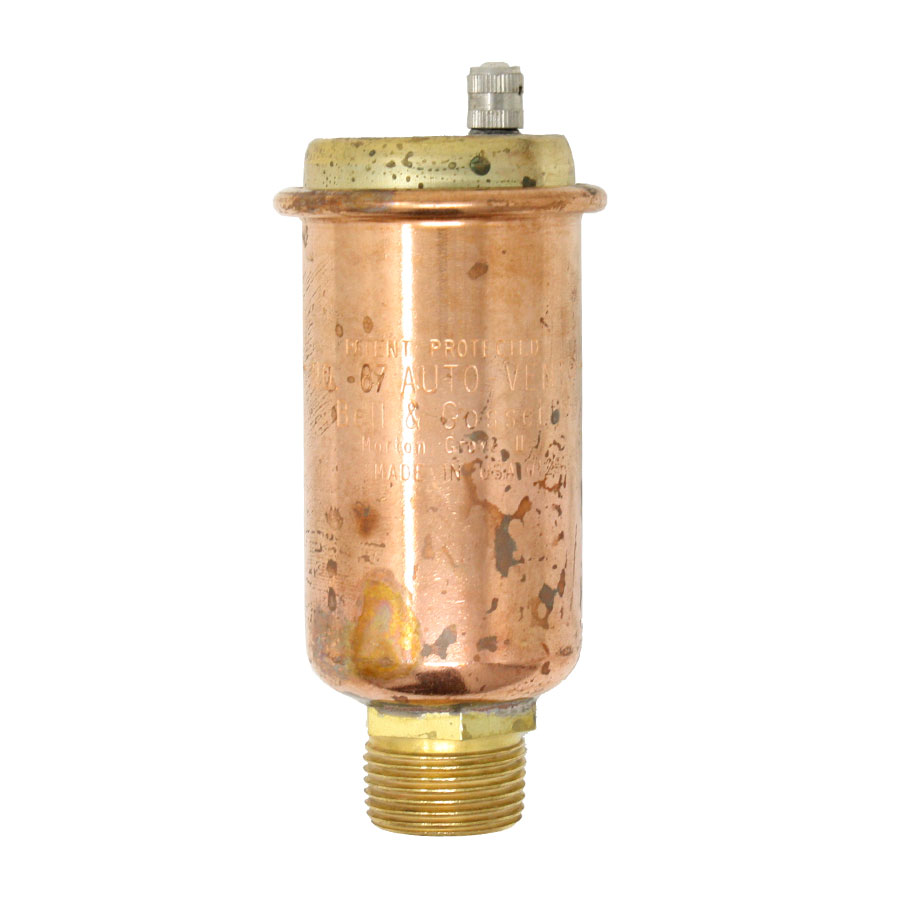

Bell & Gossett 113021 Automatic Air Vent, 3/4 x 1/2 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Brass Body

CBPN:17554

UPC:683328130217

MPN:113021

Price:
$141.44 / EA

DESCRIPTION

Bell & Gossett Automatic Air Vent, 3/4 x 1/2 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 240 deg F, Brass Body, 2-1/4 in W x 4-3/4 in H Dimensions

NO 87, 67 and 7 Automatic Air Vents are designed to vent the accumulation of troublesome air wherever it can be trapped. These non-ferrous automatic air vents are 4-3/4 in x 2-1/4 in, 3-3/16 in x 1-1/2 in, and 4-1/6 in x 2-3/16 in(height and width), respectively, and are rated for a maximum operating temperature of 240 deg F at pressures of 150, 35, and 75 PSI, respectively. The No. 87 has a combination of 1/2 in FPT / 3/4 in MPT connection, whereas No's. 67 and 7 have 1/8 in MPT and 1/8 in FPT connections, respectively.

Bell & Gossett 113021 Automatic Air Vent, 3/4 x 1/2 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Brass Body

CBPN:17554

MPN:113021

UPC:683328130217

Price:
$141.44 / EA

Bell & Gossett Logo

DESCRIPTION

Bell & Gossett Automatic Air Vent, 3/4 x 1/2 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 240 deg F, Brass Body, 2-1/4 in W x 4-3/4 in H Dimensions

NO 87, 67 and 7 Automatic Air Vents are designed to vent the accumulation of troublesome air wherever it can be trapped. These non-ferrous automatic air vents are 4-3/4 in x 2-1/4 in, 3-3/16 in x 1-1/2 in, and 4-1/6 in x 2-3/16 in(height and width), respectively, and are rated for a maximum operating temperature of 240 deg F at pressures of 150, 35, and 75 PSI, respectively. The No. 87 has a combination of 1/2 in FPT / 3/4 in MPT connection, whereas No's. 67 and 7 have 1/8 in MPT and 1/8 in FPT connections, respectively.

Specifications

BrandBell & Gossett
Weight1 lbs
Nominal Size3/4 x 1/2 in
End StyleMNPT x FNPT
Pressure Rating150 psi
Body MaterialBrass
Dimensions2-1/4 in W x 4-3/4 in H
Manufacturer NameXylem
Temperature Rating240 deg F

Item Features

  • Model 87
