Bell & Gossett 110196LF

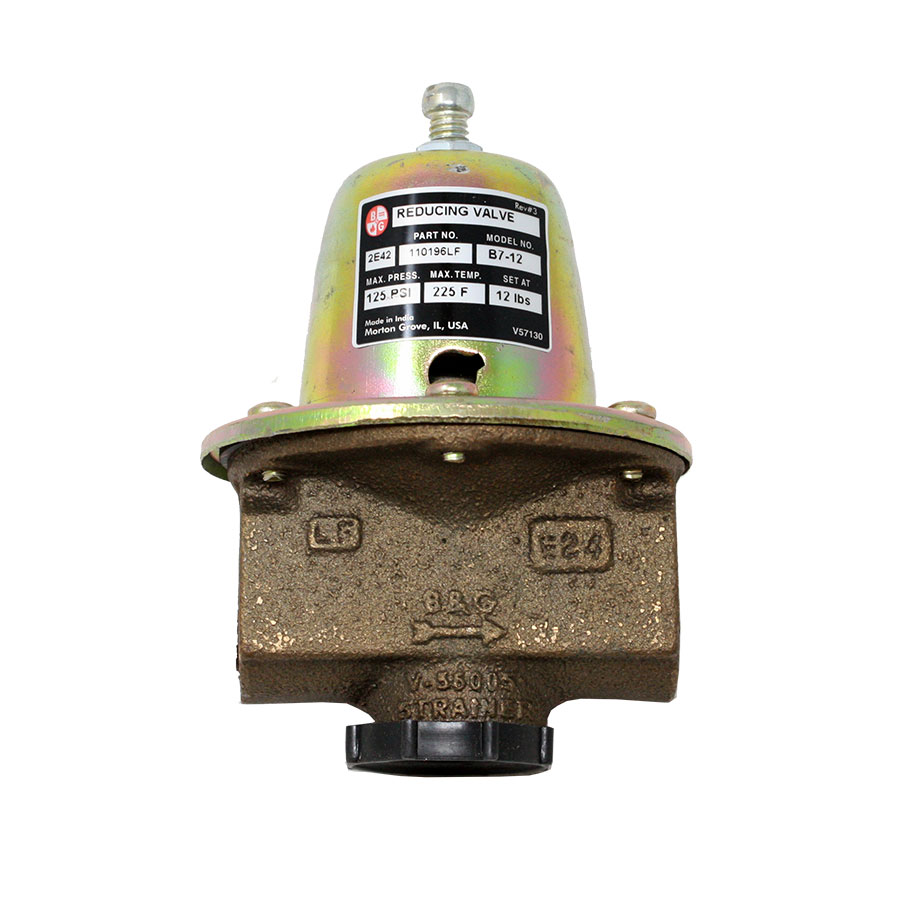

Bell & Gossett 110196LF Pressure Reducing Valve, 3/4 in, NPT, 10 to 25 psig, 6-1/2 to 7 gpm, Brass Body

CBPN:6843

MPN:110196LF

Price:
$166.40 / EA

DESCRIPTION

Bell & Gossett Pressure Reducing Valve, Model B7-12, 3/4 in Nominal Size, NPT, 10 to 25 psig, 225 deg F, 6-1/2 to 7 gpm, Media: Water, 3 in Inlet to Outlet Length, 3-21/32 in Top to Inlet Center, Brass Body, 4-31/32 in H

This low pressure reducing valve is equipped with a low inlet pressure check valve and removable strainer. It is suitable for use in buildings with a maximum of three floors.

Bell & Gossett 110196LF Pressure Reducing Valve, 3/4 in, NPT, 10 to 25 psig, 6-1/2 to 7 gpm, Brass Body

CBPN:6843

MPN:110196LF

Price:
$166.40 / EA

Bell & Gossett Logo

DESCRIPTION

Bell & Gossett Pressure Reducing Valve, Model B7-12, 3/4 in Nominal Size, NPT, 10 to 25 psig, 225 deg F, 6-1/2 to 7 gpm, Media: Water, 3 in Inlet to Outlet Length, 3-21/32 in Top to Inlet Center, Brass Body, 4-31/32 in H

This low pressure reducing valve is equipped with a low inlet pressure check valve and removable strainer. It is suitable for use in buildings with a maximum of three floors.

Specifications

BrandBell & Gossett
Weight2 lbs
Nominal Size3/4 in
End StyleNPT
Pressure Range10 to 25 psig
Flow Rate6-1/2 to 7 gpm
Body MaterialBrass
Dimensions4-31/32 in H
Inlet to Outlet Length3 in
Manufacturer NameXylem
MediaWater
Temperature Rating225 deg F
Top to Inlet Center3-21/32 in
Standards and ApprovalsANSI/NSF 372 | CSA Certified

Item Features

  • Fast fill feature reduces start-up time and labor
  • Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
  • Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
  • Brass body construction is highly resistant to corrosion and ideal for water systems
  • Lead free brass body/construction is ideal for potable water systems
  • Contains less than 0.25% lead by weight on wetted surfaces
  • 12 psig factory setting
  • 10 to 25 psig adjustable range
  • 6-1/2 to 7 gpm at 125 psig max flow
  • Model B7-12
