Bell & Gossett 106197LF

Bell & Gossett 106197LF 100 3-Piece Circulator Booster Pump, 33 gpm Flow Rate, 115 VAC, 1 ph

CBPN:20152

UPC:683328222431

MPN:106197LF

Price:
$1289.60 / EA

DESCRIPTION

Bell & Gossett Circulator Booster Pump, 3-Piece, Series: 100, 33 gpm, 8 ft Maximum Head, 1/12 hp, 115 VAC, 1.75 A, 60 Hz, 1 ph, 125 psi Maximum, 1725 rpm Motor, In-Line Mount, 225 deg F, Sleeve Bearing, 14-7/8 in L

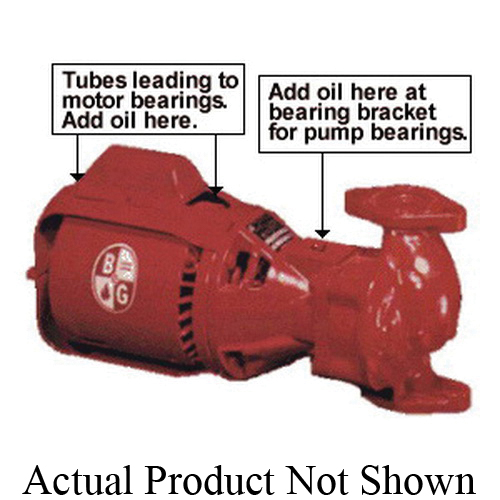

The industry standard circulator for decades, series 100 is still the one by which most others are judged. With well over 10 million units installed, the series 100 remains a leader in applications such as hydronic heating and domestic hot water circulation. Series 100′s 3-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The series 100 oil lubricated motor is specifically designed for the series 100 and its resilient mounting provides quiet, dependable service with minimum annual lubrication. The design of this motor, coupled with its overall hydraulic performance, allows the series 100 to overcome system related noise caused by valves, fittings or piping.

Bell & Gossett 106197LF 100 3-Piece Circulator Booster Pump, 33 gpm Flow Rate, 115 VAC, 1 ph

CBPN:20152

MPN:106197LF

UPC:683328222431

Price:
$1289.60 / EA

Bell & Gossett Logo

DESCRIPTION

Bell & Gossett Circulator Booster Pump, 3-Piece, Series: 100, 33 gpm, 8 ft Maximum Head, 1/12 hp, 115 VAC, 1.75 A, 60 Hz, 1 ph, 125 psi Maximum, 1725 rpm Motor, In-Line Mount, 225 deg F, Sleeve Bearing, 14-7/8 in L

The industry standard circulator for decades, series 100 is still the one by which most others are judged. With well over 10 million units installed, the series 100 remains a leader in applications such as hydronic heating and domestic hot water circulation. Series 100′s 3-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The series 100 oil lubricated motor is specifically designed for the series 100 and its resilient mounting provides quiet, dependable service with minimum annual lubrication. The design of this motor, coupled with its overall hydraulic performance, allows the series 100 to overcome system related noise caused by valves, fittings or piping.

Specifications

BrandBell & Gossett
Weight20 lbs
Flow Rate33 gpm
Voltage Rating115 VAC
Phase1 ph
Amperage Rating1.75 A
Bearing TypeSleeve
Dimensions14-7/8 in L
Frequency Rating60 Hz
Manufacturer NameXylem
Maximum Head8 ft
Maximum Pressure125 psi
Motor Speed1725 rpm
Mounting TypeIn-Line
Power Rating1/12 hp
Series100
Temperature Rating225 deg F
Type3-Piece
Standards and ApprovalsCSA Certified | UL Listed

Item Features

  • Contains less than 0.25% lead content by weight on wetted surfaces
  • Not to be used for construction purposes unless certified
  • Equipped with a drip-proof motor are recommended for indoor use only
  • Built-in overload protection
  • 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
  • Construction: lead free bronze body, polypropylene/lead free brass impeller, carbon on ceramic mechanical seal, heat treated carbon steel shaft, oil lubricated bronze sleeve, flexible spring type coupler
