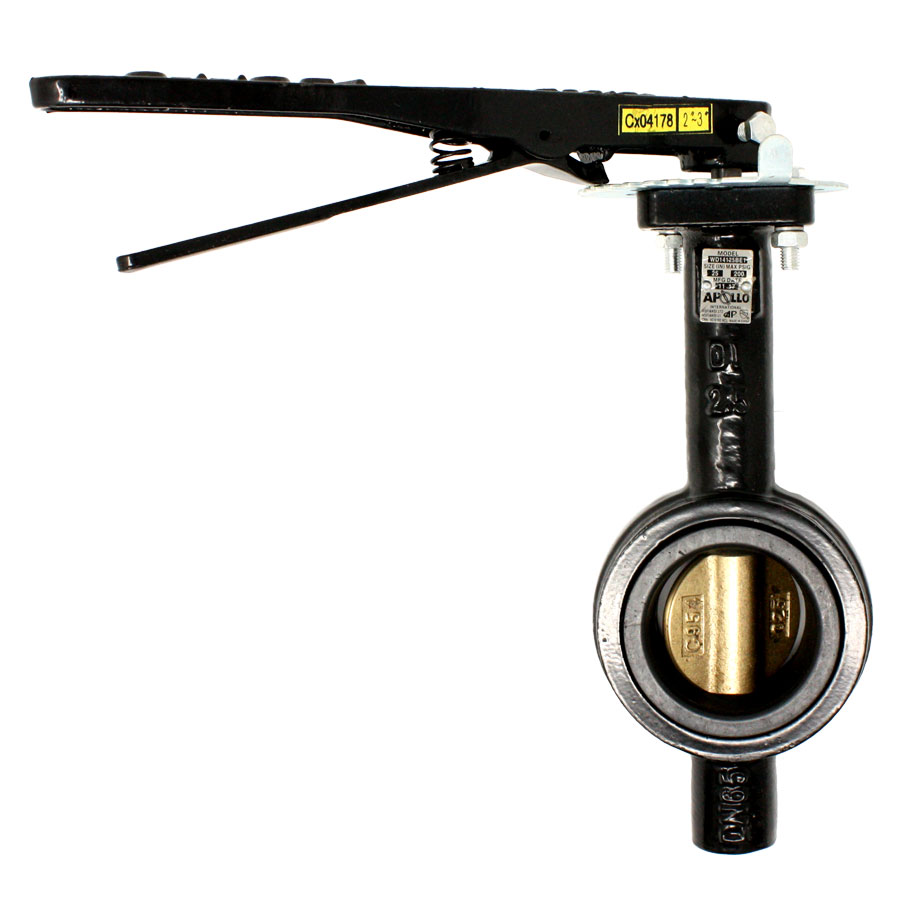

Apollo™ Apollo International™ WD-141-03-B-E-1-1 WD141 Resilient Seated Wafer Style Butterfly Valve, 3 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
CBPN:216589
UPC:670750420887
MPN:WD14103BE11
Price:
$178.87 / EA
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Wafer Style, Series: WD141, 3 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.13 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
Apollo International™ WD141 Series Ductile Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The WD141 Series is a wafer style valve.
Apollo™ Apollo International™ WD-141-03-B-E-1-1 WD141 Resilient Seated Wafer Style Butterfly Valve, 3 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
CBPN:216589
MPN:WD14103BE11
UPC:670750420887
Price:
$178.87 / EA
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Wafer Style, Series: WD141, 3 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.13 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
Apollo International™ WD141 Series Ductile Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The WD141 Series is a wafer style valve.
Specifications
Brand: Apollo™
Weight: 8.85 lbs
Nominal Size: 3 in
End Style: Wafer
Pressure Class: 125/150 lb
Body Material: Ductile Iron
Type: Resilient Seated Wafer Style
Softgoods Material: EPDM
Actuator Type: 10-Position Handle
Disc Material: Aluminum Bronze
Manufacturer Name: Apollo Conbraco
Series: WD141
Temperature Rating: -20 to 250 deg F Intermittent/22 deg F Continuous
Top to Inlet Center: 7.13 in
Application: Commercial, HVAC, Industrial and Mechanical Applications
Domestic/Import: Import
Standards and Approvals: ANSI Specified | ASTM A536 Body | AWWA C-504 | API 609 | CRN OC/2102CL | MSS SP67-2002a | NSF/ANSI 372 Lead-Free | NSF/ANSI 61 Water Quality | PROP65: Cancer and Reproductive Harm
Item Features
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Buna-N stem seal and glass reinforced epoxy resin bushing
- Black EPDM seat
- Polished disc edge ensures long seat life, minimal torque
- 1-piece wafer design with flange locating holes in larger sizes
- Through shaft assures positive disc positioning and dependable performance
- Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
- Shaft equipped with weather seal to prevent external media from entering the shaft bore
- Isolates body from process media
- Valves are equipped with a stretch-resistant, non-collapsible blow-out proof seat
- Phenolic stiffener ring, resilient seated
- Seat design eliminates the need for flange gaskets
- Designed to dimensions for easy mounting of Apollo actuators and manual operators
- Supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
- Precision machined disc edge creates Bubble tight shut-off, primary seal
