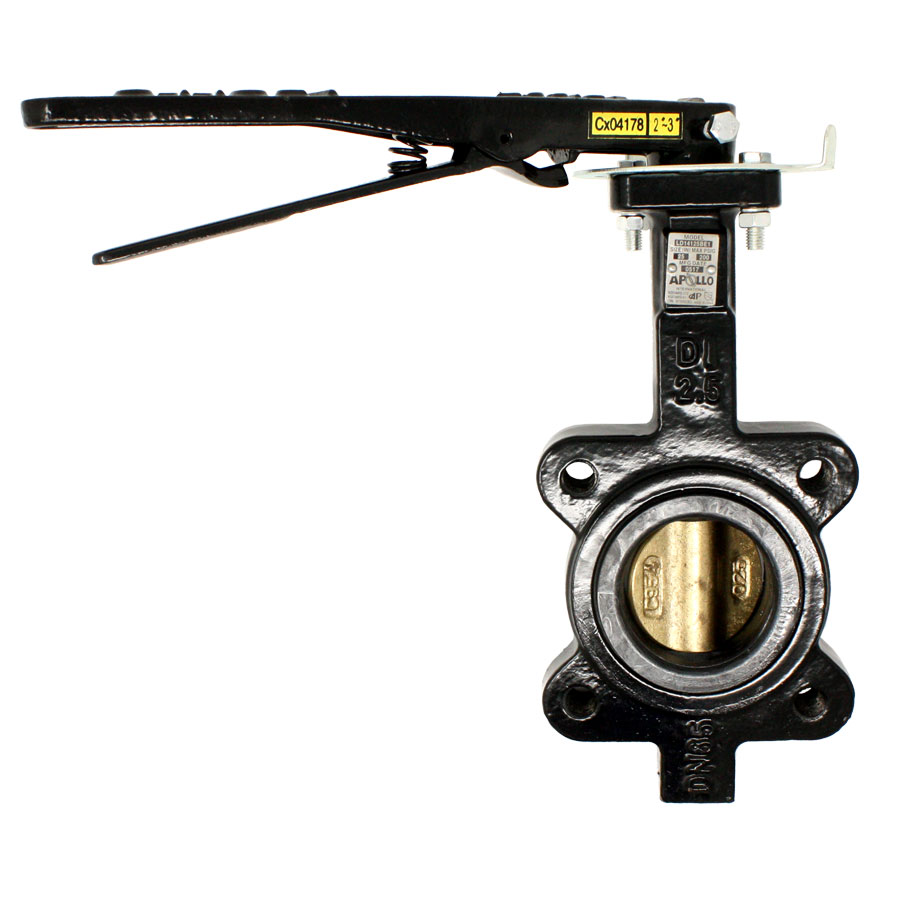

Apollo™ Apollo International™ LD-141-25-B-E-1-1-A LD141 Resilient Seated Lug Style Butterfly Valve, 2-1/2 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
CBPN:166067
UPC:670750958137
MPN:LD14125BE11A
Price:
$187.53 / EA
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 2-1/2 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 6.88 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Apollo™ Apollo International™ LD-141-25-B-E-1-1-A LD141 Resilient Seated Lug Style Butterfly Valve, 2-1/2 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
CBPN:166067
MPN:LD14125BE11A
UPC:670750958137
Price:
$187.53 / EA
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 2-1/2 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 6.88 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Specifications
Brand: Apollo™
Weight: 11.85 lbs
Nominal Size: 2-1/2 in
End Style: Lug
Pressure Class: 125/150 lb
Body Material: Ductile Iron
Type: Resilient Seated Lug Style
Softgoods Material: EPDM
Actuator Type: 10-Position Handle
Disc Material: Aluminum Bronze
Manufacturer Name: Apollo Conbraco
Series: LD141
Temperature Rating: -20 to 250 deg F Intermittent/225 deg F Continuous
Top to Inlet Center: 6.88 in
Application: Industrial, Commercial, HVAC and Mechanical Applications
Domestic/Import: Import
Standards and Approvals: ANSI Specified | API 609 | ASTM A536 Body | AWWA C-504 | CRN OC/2102CL | Federal Public Law 111-380 | ANSI 3rd Party Approved | MSS SP67-2002a | NSF/ANSI 372 Lead-Free | NSF/ANSI 61 | PROP65: Cancer and Reproductive Harm
Item Features
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Buna-N stem seal and glass reinforced epoxy resin bushing
- Black Buna-N seat
- Polished disc edge ensures long seat life, minimal torque
- 1-piece wafer design with flange locating holes in larger sizes
- Through shaft assures positive disc positioning and dependable performance
- Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
- Shaft equipped with weather seal to prevent external media from entering the shaft bore
- Isolates body from process media
- Valves are equipped with a stretch-resistant, non-collapsible blow-out proof seat
- Phenolic stiffener ring, resilient seated
- Seat design eliminates the need for flange gaskets
- Designed to dimensions for easy mounting of Apollo actuators and manual operators
- Supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
- Precision machined disc edge creates Bubble tight shut-off, primary seal
