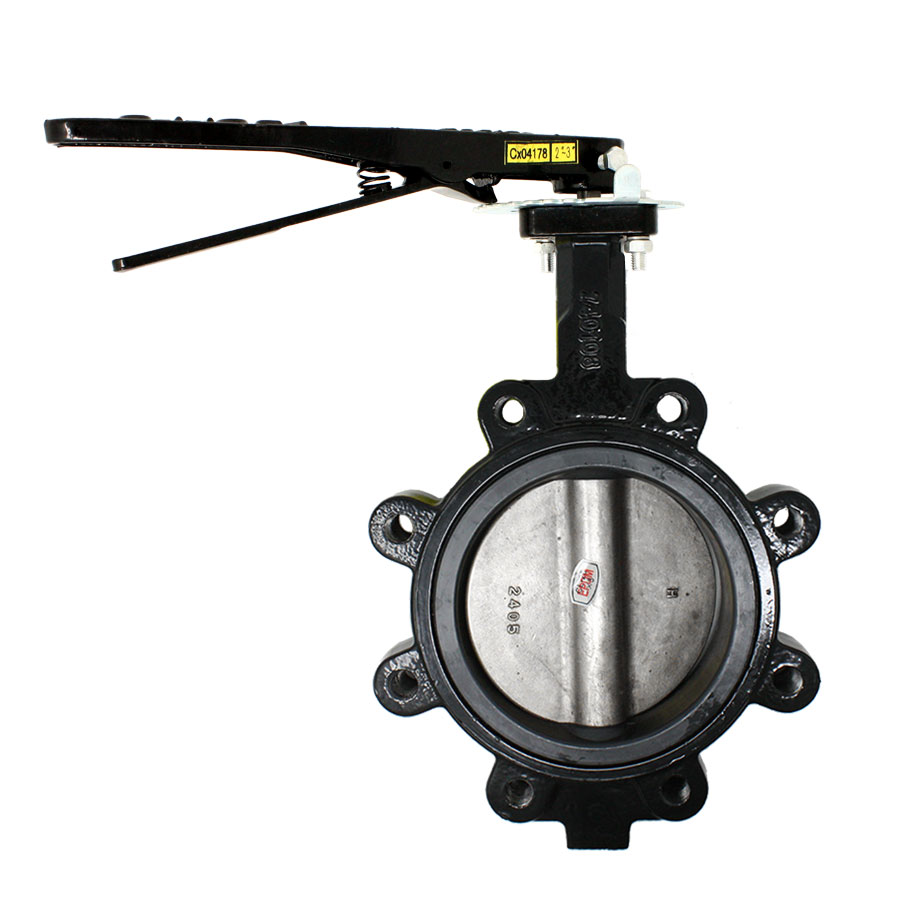

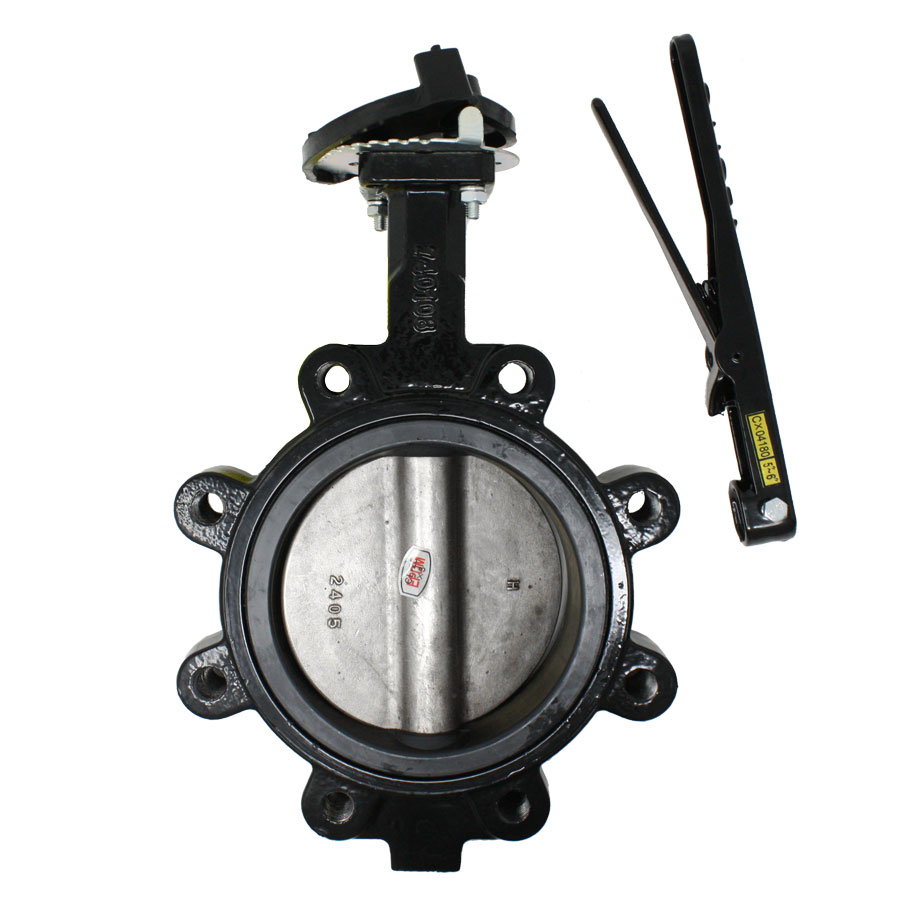

Apollo™ Apollo International™ LD-141-04-S-E-1-1-A LD141 Resilient Seated Lug Style Butterfly Valve, 4 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
CBPN:150381
UPC:670750971242
MPN:LD14104SE11A
Price:
$363.66 / EA
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 4 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.88 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Apollo™ Apollo International™ LD-141-04-S-E-1-1-A LD141 Resilient Seated Lug Style Butterfly Valve, 4 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
CBPN:150381
MPN:LD14104SE11A
UPC:670750971242
Price:
$363.66 / EA
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 4 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.88 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Specifications
Brand: Apollo™
Weight: 18.85 lbs
Nominal Size: 4 in
End Style: Lug
Pressure Class: 125/150 lb
Body Material: Ductile Iron
Type: Resilient Seated Lug Style
Softgoods Material: EPDM
Actuator Type: 10-Position Handle
Disc Material: 316 Stainless Steel
Manufacturer Name: Apollo Conbraco
Series: LD141
Temperature Rating: -20 to 250 deg F Intermittent/225 deg F Continuous
Top to Inlet Center: 7.88 in
Application: Industrial, Commercial, HVAC and Mechanical Applications
Domestic/Import: Import
Standards and Approvals: ANSI Specified | API 609 | ASTM A536 Body | AWWA C-504 | ASTM CF8M | CRN OC/2102CL | Federal Public Law 111-380 | ANSI 3rd Party Approved | MSS SP67-2002a | NSF/ANSI 372 Lead-Free | NSF/ANSI 61 | PROP65: Cancer and Reproductive Harm
Item Features
- LD141 series Suitable for end of line service (bidirectional dead end service) to rated pressure (2 to 24 in)
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Buna-N stem seal and glass reinforced epoxy resin bushing
- Black EPDM seat
- The face-to-face dimensions were designed to comply with MSS SP-67 and API 609
- Through shaft assures positive disc positioning and dependable performance
- Weather seal shaft equipped with weather seal to prevent external media from entering the shaft bore
- Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
- Three bushings supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
- Factory tested to 110% of full rated pressure in both directions before shipping
- Profiled disc design precision machined disc edge creates Bubble tight shut-off, primary seal
- Shaft seal the shaft Dia is greater than the Dia of the seat's shaft hole creating a robust shaft seal
- All valves are 100% factory tested before shipping
