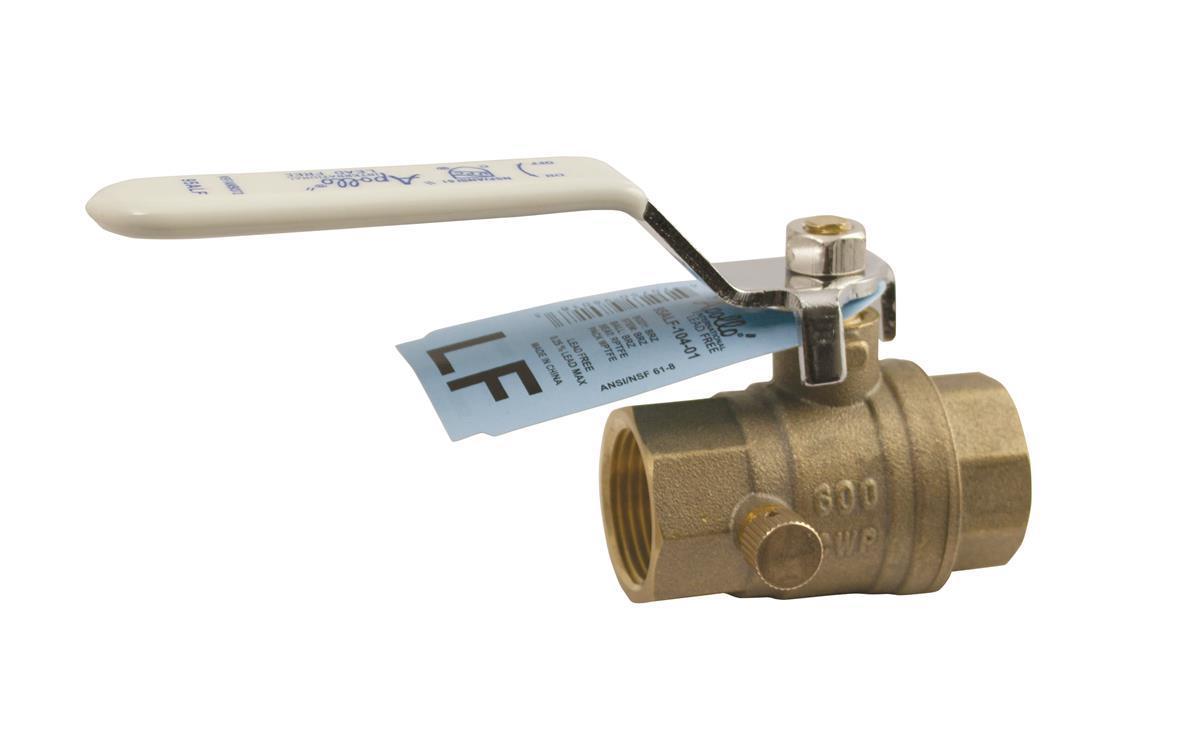

Apollo™ 95ALF20301 Stop and Waste Ball Valve, 1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, PTFE/EPDM Softgoods, Domestic
CBPN:177822
UPC:670750980206
MPN:95ALF-203-01
Price:
$11.21 / EA
Prop 65:
Enter in multiples of 12
DESCRIPTION
Apollo™ 95ALF20301, Stop and Waste Ball Valve, 2-Piece, Series: 95ALF, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 32 to 250 deg F, Full Port, 1/2 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 2.12 in Inlet to Outlet Length, 1.78 in Top to Inlet Center, PTFE/EPDM Softgoods, Domestic
The Apollo International® 95ALF Lead Free forged brass stop and waste ball valves combine reliable operation with maximum economy. Ideal for plumbing or hydronic systems where draining is required.
Apollo™ 95ALF20301 Stop and Waste Ball Valve, 1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, PTFE/EPDM Softgoods, Domestic
CBPN:177822
MPN:95ALF-203-01
UPC:670750980206
Price:
$11.21 / EA
Prop 65:
Enter in multiples of 12
DESCRIPTION
Apollo™ 95ALF20301, Stop and Waste Ball Valve, 2-Piece, Series: 95ALF, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 32 to 250 deg F, Full Port, 1/2 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 2.12 in Inlet to Outlet Length, 1.78 in Top to Inlet Center, PTFE/EPDM Softgoods, Domestic
The Apollo International® 95ALF Lead Free forged brass stop and waste ball valves combine reliable operation with maximum economy. Ideal for plumbing or hydronic systems where draining is required.
Specifications
Brand: Apollo™
Weight: 0.44 lbs
Nominal Size: 1/2 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Lead Free Brass
Port Type: Full
Softgoods Material: PTFE/EPDM
Actuator Type: Lever Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2.12 in
Manufacturer Name: Apollo Conbraco
Orifice Size: 1/2 in
Series: 95ALF
Temperature Rating: 32 to 250 deg F
Top to Inlet Center: 1.78 in
Trim Material: Brass
Type: 2-Piece
Application: Ideal For Plumbing Or Hydronic Systems Where Draining Is Required
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI/NSF 61-9/372 | ANSI A112.18.1M | CSA Certified | PROP65: This product can expose you to chemicals including Lead | Nickel (Metallic) and Di(2-ethylhexyl)phthalate (DEHP), which are known to the State of California to cause cancer, Lead and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm
Item Features
- 2 piece, full port design
- Blow-out proof stem design
- Adjustable stem packing nut
- Drain port with finger tight shut-off
- Fast, quarter turn operation
- Plated steel washer
- Plated steel with PVC grip handle
- EPDM O-ring seal
- Brass gland nut
- PTFE stem packing seat
