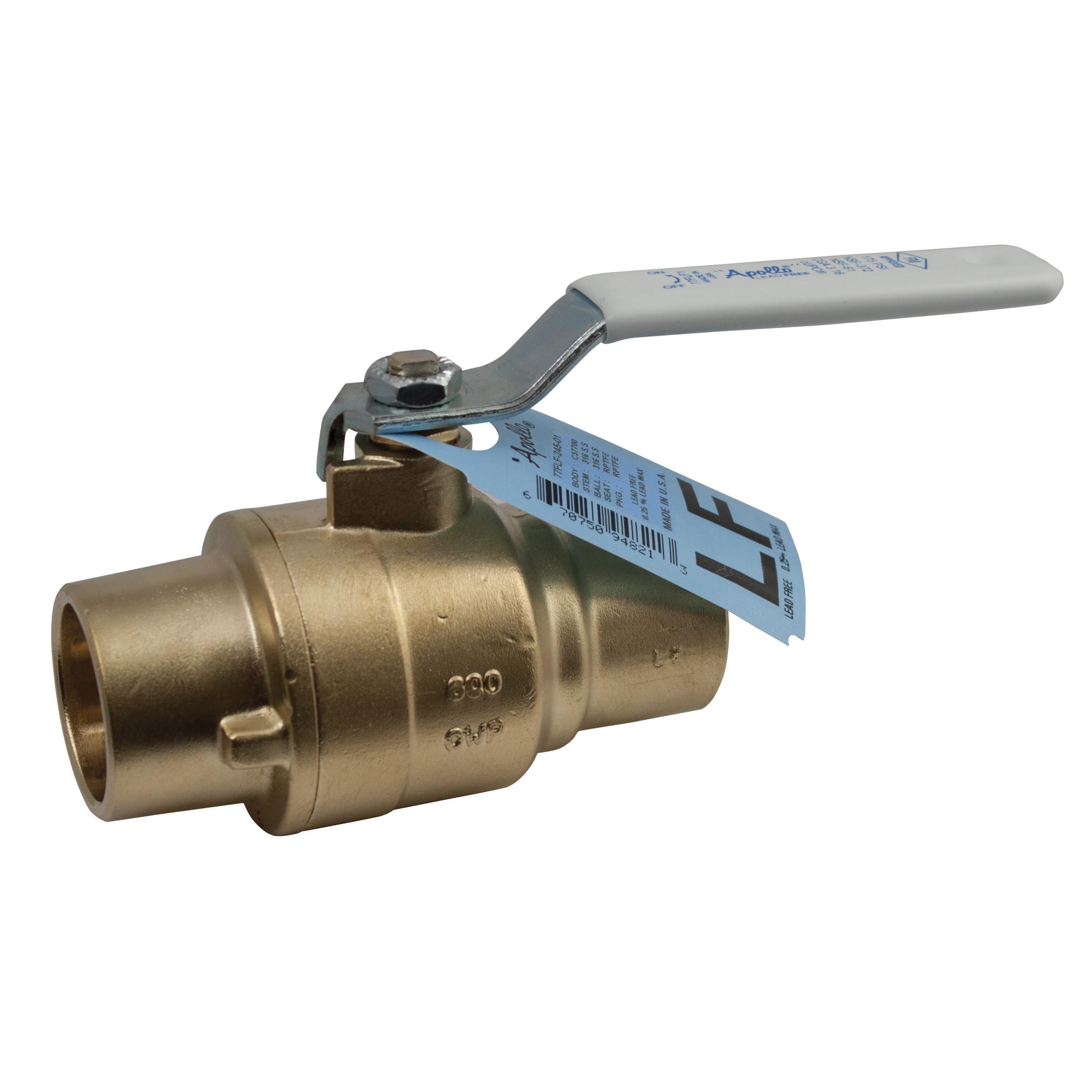

Apollo™ 77FLF20601 77FLF-200 2-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic
CBPN:170575
UPC:670750372209
MPN:77FLF-206-01
DESCRIPTION
Apollo™ 77FLF20601, Ball Valve, 2-Piece, Series: 77FLF-200, 1-1/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 3.97 in Inlet to Outlet Length, 2.44 in Top to Inlet Center, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.
Apollo™ 77FLF20601 77FLF-200 2-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic
CBPN:170575
MPN:77FLF-206-01
UPC:670750372209
DESCRIPTION
Apollo™ 77FLF20601, Ball Valve, 2-Piece, Series: 77FLF-200, 1-1/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 3.97 in Inlet to Outlet Length, 2.44 in Top to Inlet Center, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.
Specifications
Item Features
- Heavy pattern forged design
- Superior RPTFE seats and packing
- Adjustable stem packing
- Blow-out proof stem
- Corrosion resistant materials
- Silicone free assembly
- 100% factory tested
- Vacuum service to 29 in Hg
- Corrosion resistant plated steel nut
- Plated steel/insulated polyvinyl handle
