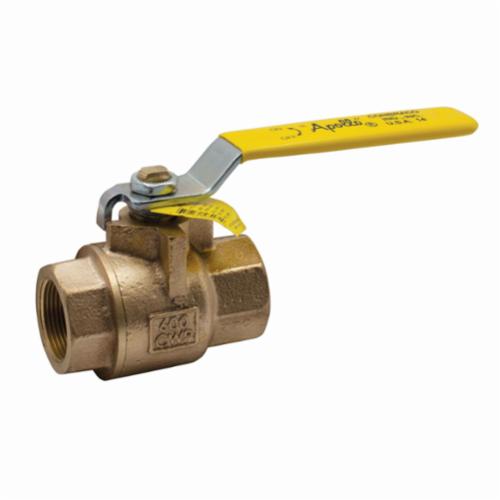

Apollo™ 77C-245-27 77C-240 2-Piece Ball Valve, 1 in Nominal, Solder End Style, Bronze Body, Full Port, PTFE/MPTFE Softgoods, Domestic
CBPN:165657
UPC:670750756658
MPN:77C-245-27
Price:
$104.24 / EA
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 77C-240, 1 in Nominal, Solder, 600 psig CWP, 500 deg F, Full Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 3.61 in Inlet to Outlet Length, 2.19 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and PTFE Seat Trim, PTFE/MPTFE, Domestic
The Apollo™ 77C contractor series ball valve features a dezincification resistant bronze body, premium multi-fill MPTFE seats and stem packing, and a solid ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants utilizing proven ASTM materials.
Apollo™ 77C-245-27 77C-240 2-Piece Ball Valve, 1 in Nominal, Solder End Style, Bronze Body, Full Port, PTFE/MPTFE Softgoods, Domestic
CBPN:165657
MPN:77C-245-27
UPC:670750756658
Price:
$104.24 / EA
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 77C-240, 1 in Nominal, Solder, 600 psig CWP, 500 deg F, Full Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 3.61 in Inlet to Outlet Length, 2.19 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and PTFE Seat Trim, PTFE/MPTFE, Domestic
The Apollo™ 77C contractor series ball valve features a dezincification resistant bronze body, premium multi-fill MPTFE seats and stem packing, and a solid ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants utilizing proven ASTM materials.
Specifications
Brand: Apollo™
Weight: 2.175 lbs
Nominal Size: 1 in
End Style: Solder
Pressure Rating: 600 psig CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: PTFE/MPTFE
Actuator Type: Latch-Lock Lever
Ball Material: Stainless Steel
Inlet to Outlet Length: 3.61 in
Manufacturer Name: Apollo Conbraco
Series: 77C-240
Temperature Rating: 500 deg F
Top to Inlet Center: 2.19 in
Trim Material: 316 Stainless Steel Stem and PTFE Seat
Type: 2-Piece
Warranty: 5 years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584 Body | CRN OC10908.5C | MSS SP-110
Item Features
- 27 - Stainless steel latch-lock lever and nut
- Multi-fill PTFE seats and seals
- Blow-out proof stem
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- 150 psi working steam pressure
- Vacuum service to 29 in Hg
- PTFE seal and MPTFE stem packing
