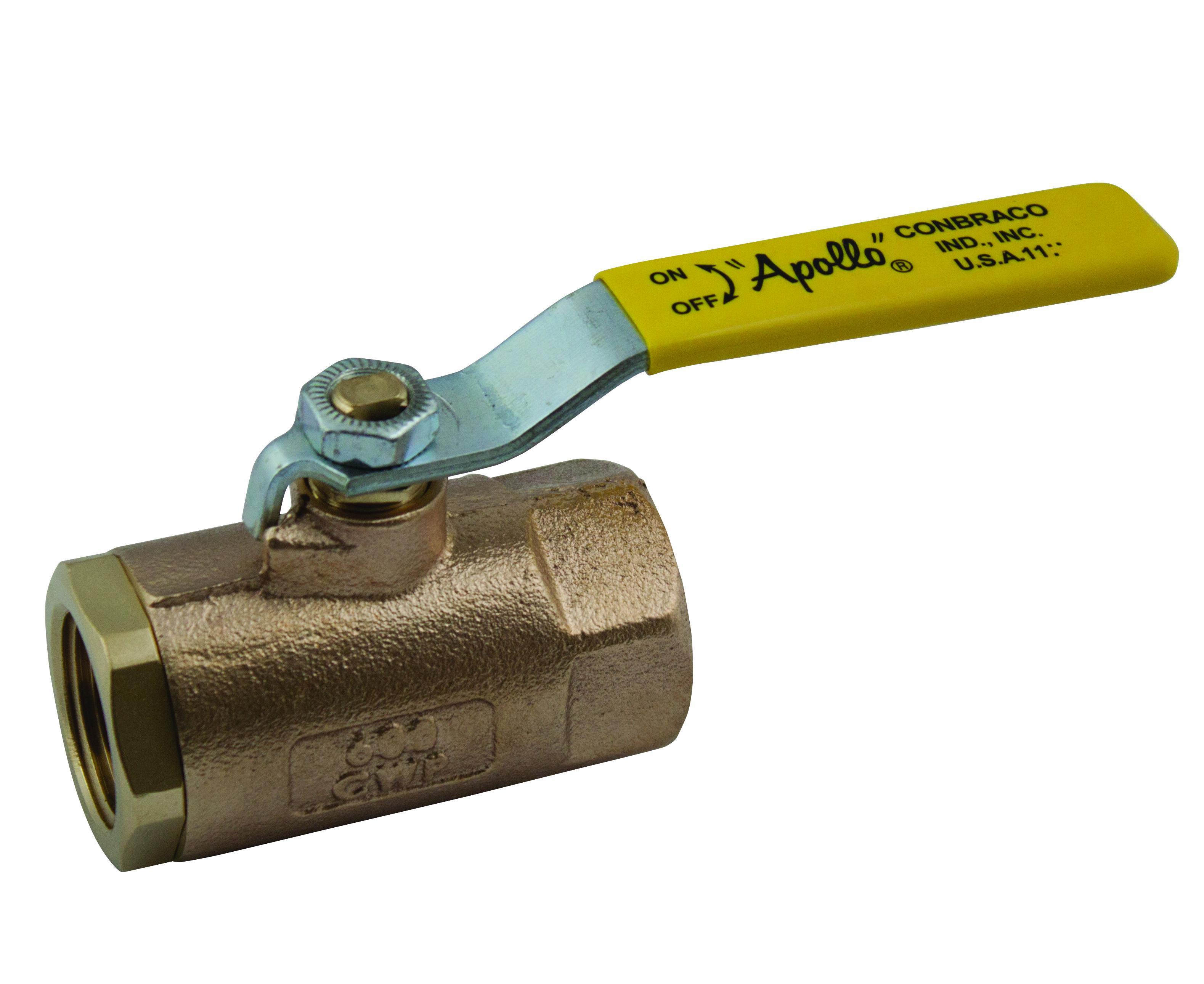

Apollo™ 7010701 70-100 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
CBPN:1442
UPC:670750654992
MPN:70-107-01
Price:
$134.84 / EA
Prop 65:
DESCRIPTION
Apollo™ 7010701, Ball Valve, 2-Piece, Series: 70-100, 1-1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Media: Water, Lever Handle Actuator, 4.37 in Inlet to Outlet Length, 3.06 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, MPTFE/RPTFE Softgoods, Domestic
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ 7010701 70-100 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
CBPN:1442
MPN:70-107-01
UPC:670750654992
Price:
$134.84 / EA
Prop 65:
DESCRIPTION
Apollo™ 7010701, Ball Valve, 2-Piece, Series: 70-100, 1-1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Media: Water, Lever Handle Actuator, 4.37 in Inlet to Outlet Length, 3.06 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, MPTFE/RPTFE Softgoods, Domestic
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Specifications
Brand: Apollo™
Weight: 4.61 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: MPTFE/RPTFE
Actuator Type: Lever Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 4.37 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 70-100
Temperature Rating: 500 deg F
Top to Inlet Center: 3.06 in
Trim Material: Brass Stem and PTFE Seat
Type: 2-Piece
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | MSS-SP-110 | CSA B51 CRN OC10908.5C | PROP65: Cancer and Reproductive Harm
Item Features
- Premium materials and heavy duty construction
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Vacuum service to 29 in Hg
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- UNS C84400 B584 body
- 150 psi steam working pressure
