Apollo™ 6210801

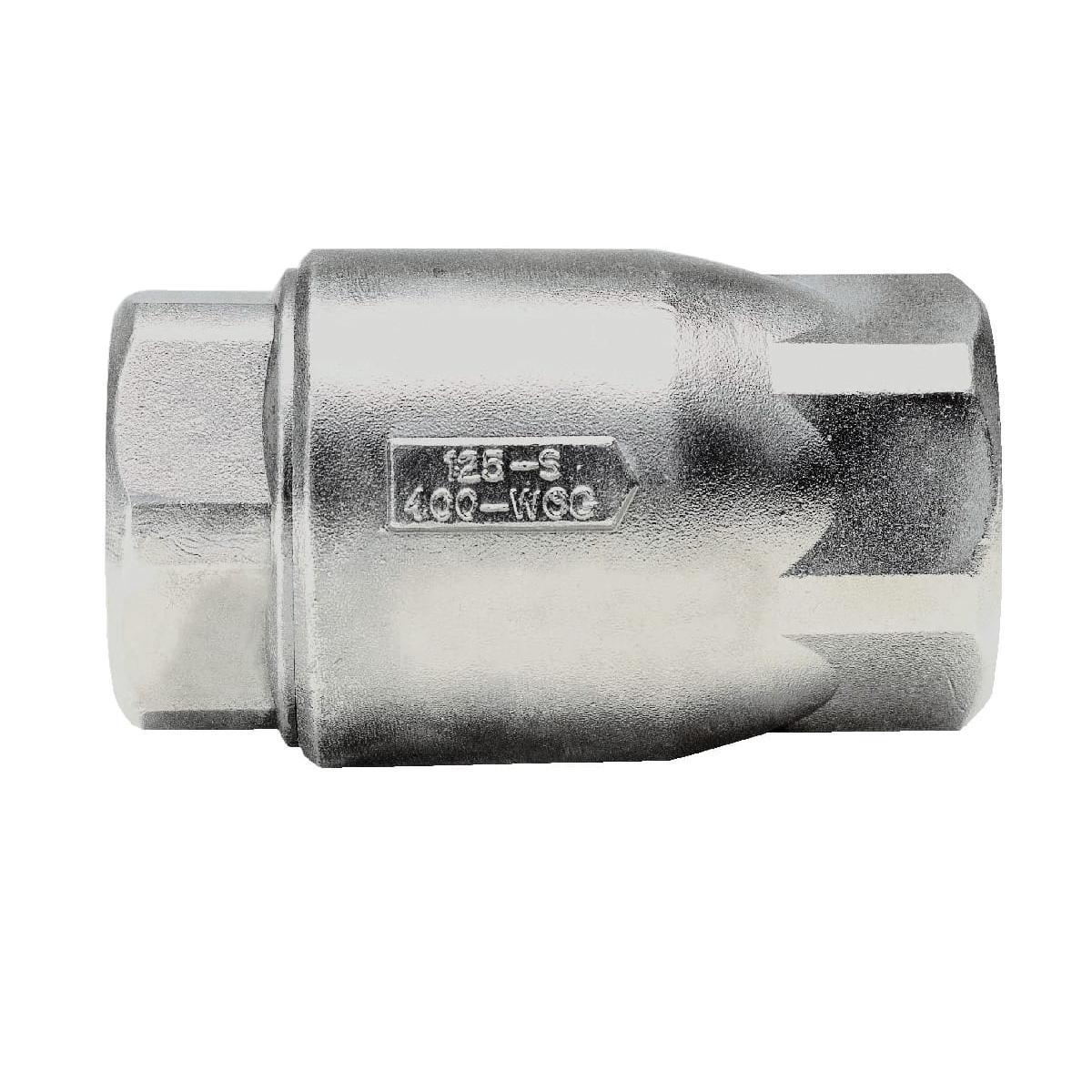

Apollo™ Ball Cone® 62-108-01 62-100, CVS2 In-Line Check Valve, 2 in Nominal, FNPT End Style, Low Lead Compliance: No, 81 gpm Flow Rate, Stainless Steel Body, Domestic

CBPN:54189

UPC:670750633607

MPN:6210801

Price:
$1117.05 / EA
Prop 65:

DESCRIPTION

Apollo™ 6210801, In-Line Check Valve, Series: 62-100, 2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, No Low Lead Compliance, 81 gpm Flow Rate, Spring Actuator, 6 in Inlet to Outlet Length, Stainless Steel Body, Domestic

The 62-100 Series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.

Apollo™ Ball Cone® 62-108-01 62-100, CVS2 In-Line Check Valve, 2 in Nominal, FNPT End Style, Low Lead Compliance: No, 81 gpm Flow Rate, Stainless Steel Body, Domestic

CBPN:54189

MPN:6210801

UPC:670750633607

Price:
$1117.05 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 6210801, In-Line Check Valve, Series: 62-100, 2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, No Low Lead Compliance, 81 gpm Flow Rate, Spring Actuator, 6 in Inlet to Outlet Length, Stainless Steel Body, Domestic

The 62-100 Series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.

Specifications

BrandApollo™
Weight6.36 lbs
Nominal Size2 in
End StyleFNPT
Low Lead ComplianceNo
Flow Rate81 gpm
Body MaterialStainless Steel
Actuator TypeSpring
Inlet to Outlet Length6 in
Manufacturer NameApollo Conbraco
Pressure Rating400 psi CWP
Series62-100
Temperature Rating350 deg F
Trim MaterialStainless Steel
ApplicationCorrosive Environments, Chemical Processing, Pulp and Paper and other Process Industries
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A351 Retainer CF8M Valve Body | RoHS Compliant | US Patent 4172465 | PROP65: Cancer and Reproductive Harm

Item Features

  • Unique design
  • Spring-loaded for fast seating action
  • Center guided so that radial alignment is never needed
  • Straight-through flow minimizes pressure loss
  • Stainless Steel Spring
  • 0.5 psig cracking pressure
