Apollo™ 62-104-01

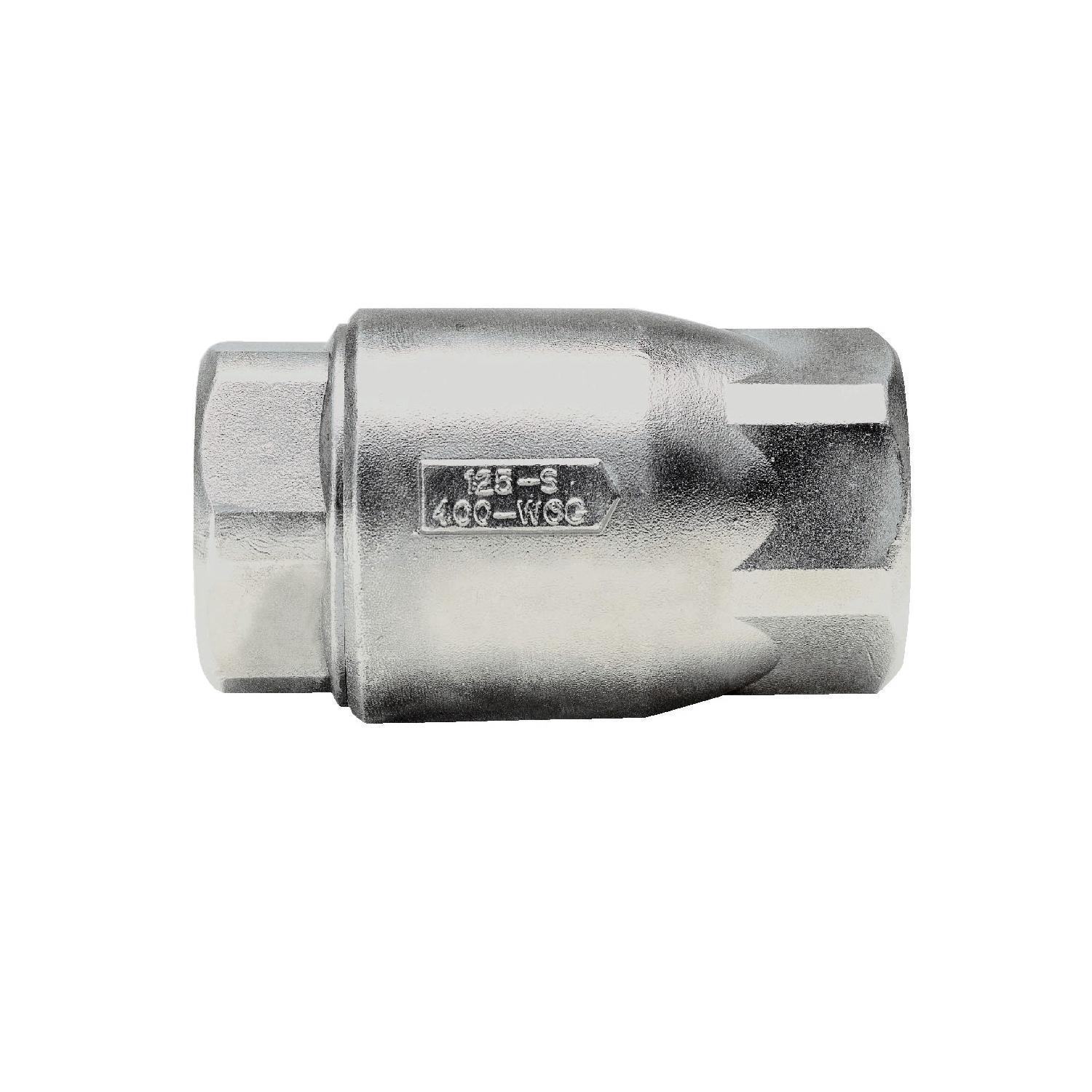

Apollo™ 6210401 62-100 Standard In-Line Ball Cone Check Valve, 3/4 in Nominal, FNPT End Style, 3.53 gpm Flow Rate, Stainless Steel Body, Domestic

CBPN:12678

UPC:670750633409

MPN:62-104-01

Price:
$248.00 / EA
Prop 65:

DESCRIPTION

Apollo™ 6210401, In-Line Ball Cone Check Valve, Standard, Series: 62-100, 3/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, 3.53 gpm Flow Rate, Spring-Loaded Latch-Lock Handle Actuator, 2.87 in Inlet to Outlet Length, Stainless Steel Body, 1-1/2 in H Dimensions, Domestic

The 62-100 series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.

Apollo™ 6210401 62-100 Standard In-Line Ball Cone Check Valve, 3/4 in Nominal, FNPT End Style, 3.53 gpm Flow Rate, Stainless Steel Body, Domestic

CBPN:12678

MPN:62-104-01

UPC:670750633409

Price:
$248.00 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 6210401, In-Line Ball Cone Check Valve, Standard, Series: 62-100, 3/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, 3.53 gpm Flow Rate, Spring-Loaded Latch-Lock Handle Actuator, 2.87 in Inlet to Outlet Length, Stainless Steel Body, 1-1/2 in H Dimensions, Domestic

The 62-100 series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.

Specifications

BrandApollo™
Weight0.75 lbs
Nominal Size3/4 in
End StyleFNPT
Flow Rate3.53 gpm
Body MaterialStainless Steel
Actuator TypeSpring-Loaded Latch-Lock Handle
Dimensions1-1/2 in H
Inlet to Outlet Length2.87 in
Manufacturer NameApollo Conbraco
Pressure Rating400 psi CWP
Series62-100
Temperature Rating350 deg F
Trim MaterialStainless Steel
TypeStandard
ApplicationCorrosive Environments, Including Chemical Processing, Pulp and Paper and other Process Industries
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A351 Retainer CF8M Valve Body | RoHS Compliant | US Patent 4172465 | PROP65: Cancer and Reproductive Harm

Item Features

  • Unique design
  • Spring-loaded for fast seating action
  • Center guided so that radial alignment is never needed
  • Straight-through flow minimizes pressure loss
  • 0.5 psig cracking pressure
