Apollo™ 61LF-102-01

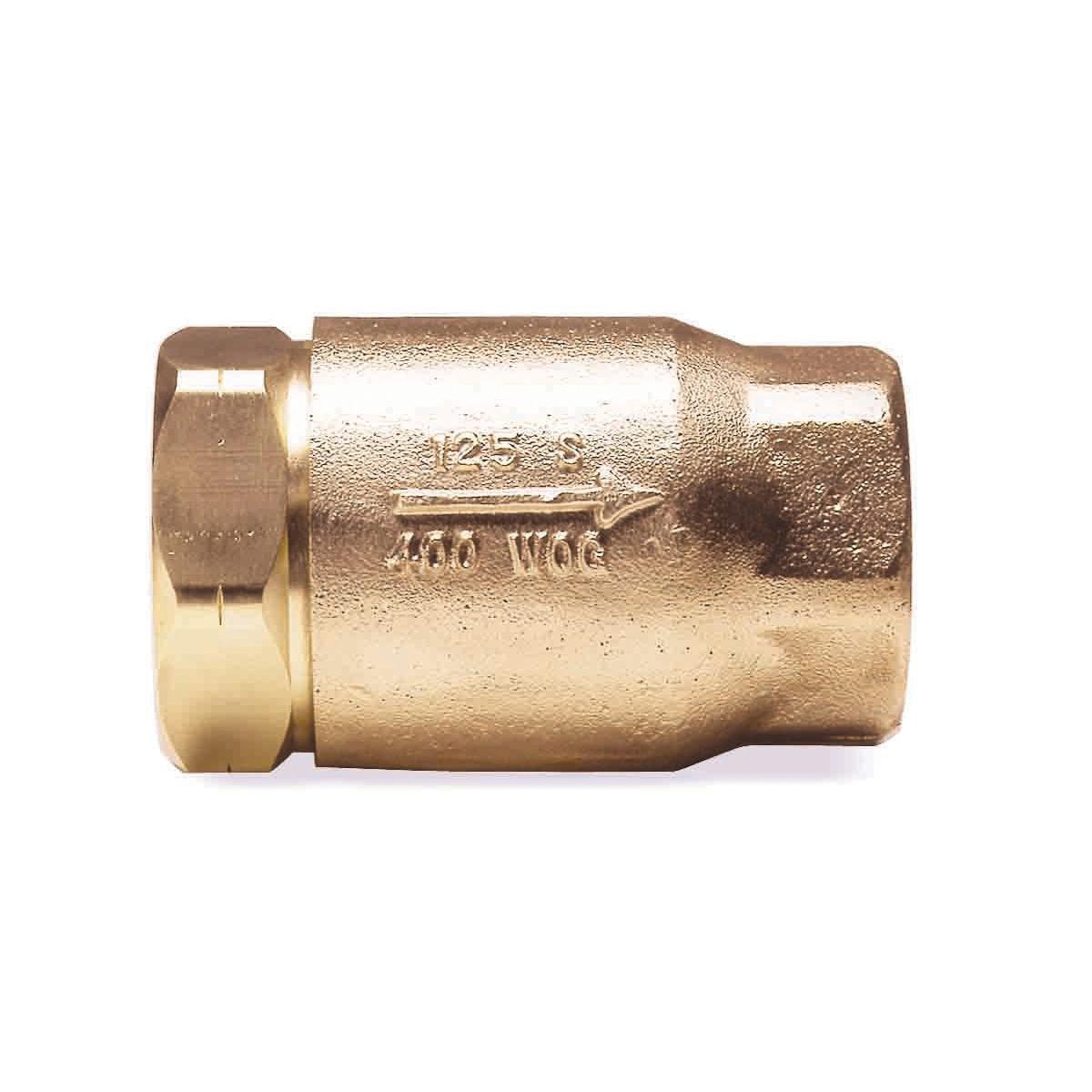

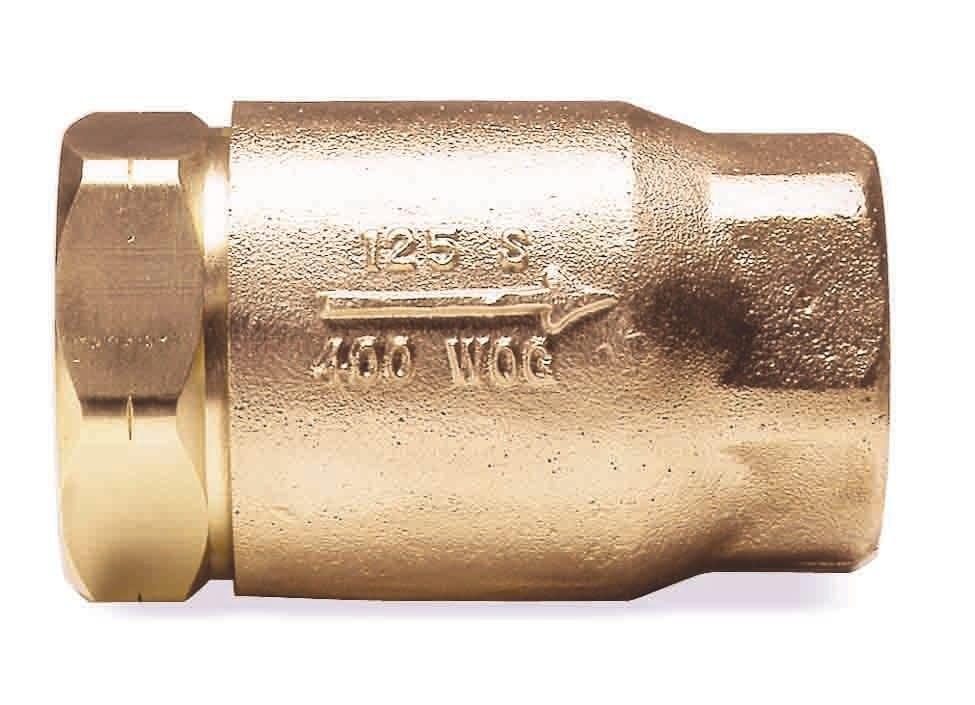

Apollo™ 61LF10201 61LF-100, CVB38LF Standard In-Line Ball Cone Check Valve, 3/8 in Nominal, FNPT End Style, 1.21 gpm Flow Rate, Lead Free Bronze Body, Domestic

CBPN:182085

UPC:670750510663

MPN:61LF-102-01

Price:
$77.50 / EA
Prop 65:

DESCRIPTION

Apollo™ 61LF10201, In-Line Ball Cone Check Valve, Standard, Series: 61LF-100, 3/8 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, Yes Low Lead Compliance, 1.21 gpm Flow Rate, Media: Liquid, Spring-Loaded Latch-Lock Handle Actuator, 2.12 in Inlet to Outlet Length, Bronze Body, Brass Trim, 1.12 in H Dimensions, Domestic

The Apollo™ CVB-LF (61LF Series) Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM grade Lead Free* materials. They are well-suited for a broad range of applications, including saturated steam and chemical service. They may be installed in both horizontal and vertical orientation with upward flow.

Apollo™ 61LF10201 61LF-100, CVB38LF Standard In-Line Ball Cone Check Valve, 3/8 in Nominal, FNPT End Style, 1.21 gpm Flow Rate, Lead Free Bronze Body, Domestic

CBPN:182085

MPN:61LF-102-01

UPC:670750510663

Price:
$77.50 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 61LF10201, In-Line Ball Cone Check Valve, Standard, Series: 61LF-100, 3/8 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, Yes Low Lead Compliance, 1.21 gpm Flow Rate, Media: Liquid, Spring-Loaded Latch-Lock Handle Actuator, 2.12 in Inlet to Outlet Length, Bronze Body, Brass Trim, 1.12 in H Dimensions, Domestic

The Apollo™ CVB-LF (61LF Series) Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM grade Lead Free* materials. They are well-suited for a broad range of applications, including saturated steam and chemical service. They may be installed in both horizontal and vertical orientation with upward flow.

Specifications

BrandApollo™
Weight0.38 lbs
Nominal Size3/8 in
End StyleFNPT
Low Lead ComplianceYes
Flow Rate1.21 gpm
Body MaterialLead Free Bronze
Actuator TypeSpring-Loaded Latch-Lock Handle
Dimensions1.12 in H
Inlet to Outlet Length2.12 in
Manufacturer NameApollo Conbraco
MediaLiquid
Pressure Rating400 psi CWP
Series61LF-100
Temperature Rating350 deg F
Trim MaterialBrass
TypeStandard
ApplicationWell-Suitedfor a broad range of applications, including saturated steam and chemical service
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B584-C89836 Valve Body | ASTM B16 Retainer | C27451 Stem/Retainer | CRN OC 11218.5C | NSF/ANSI 61-8 | NSF/ANSI 372 | PROP65: Cancer and Reproductive Harm

Item Features

  • 1/2 psi standard spring cracking pressure
  • Tight shut-off with liquid media
  • Straight-through flow design efficiency
