Apollo™ 61-104-01

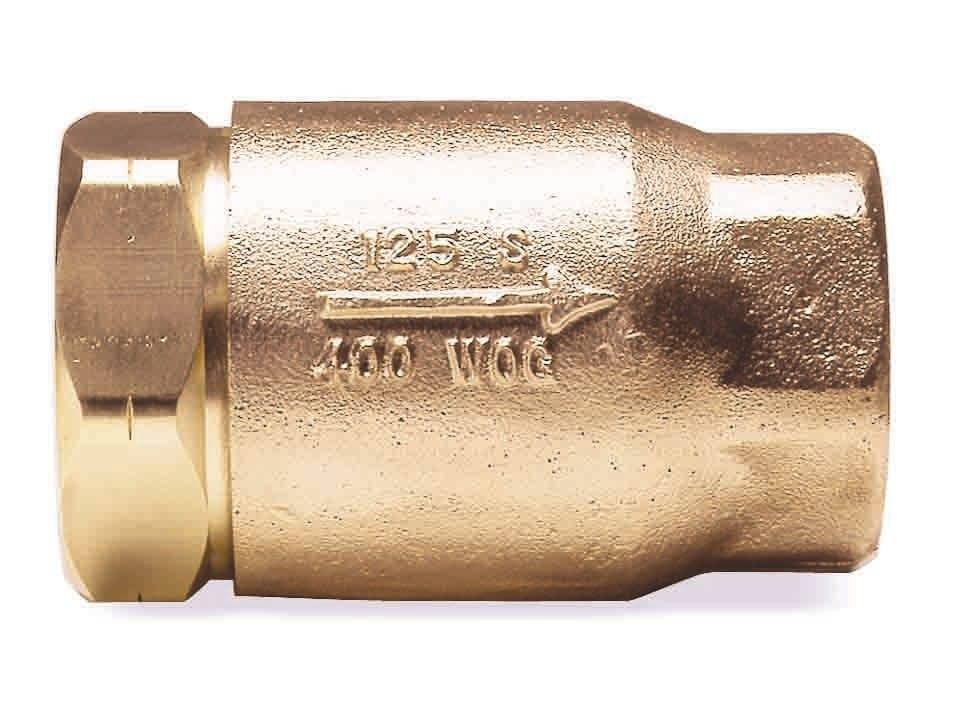

Apollo™ 6110401 61-100 Standard In-Line Ball Cone Check Valve, 3/4 in Nominal, FNPT End Style, 3.53 gpm Flow Rate, Bronze Body, Domestic

CBPN:6933

UPC:670750632082

MPN:61-104-01

Price:
$95.49 / EA
Prop 65:

DESCRIPTION

Apollo™ 6110401, In-Line Ball Cone Check Valve, Standard, Series: 61-100, 3/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, 3.53 gpm Flow Rate, Media: Liquid/Steam, Spring-Loaded Latch-Lock Handle Actuator, 2.87 in Inlet to Outlet Length, Bronze Body, Brass Trim, 1-1/2 in H Dimensions, Domestic

The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

Apollo™ 6110401 61-100 Standard In-Line Ball Cone Check Valve, 3/4 in Nominal, FNPT End Style, 3.53 gpm Flow Rate, Bronze Body, Domestic

CBPN:6933

MPN:61-104-01

UPC:670750632082

Price:
$95.49 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 6110401, In-Line Ball Cone Check Valve, Standard, Series: 61-100, 3/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, 3.53 gpm Flow Rate, Media: Liquid/Steam, Spring-Loaded Latch-Lock Handle Actuator, 2.87 in Inlet to Outlet Length, Bronze Body, Brass Trim, 1-1/2 in H Dimensions, Domestic

The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

Specifications

BrandApollo™
Weight0.75 lbs
Nominal Size3/4 in
End StyleFNPT
Flow Rate3.53 gpm
Body MaterialBronze
Actuator TypeSpring-Loaded Latch-Lock Handle
Dimensions1-1/2 in H
Inlet to Outlet Length2.87 in
Manufacturer NameApollo Conbraco
MediaLiquid/Steam
Pressure Rating400 psi CWP
Series61-100
Temperature Rating406 deg F
Trim MaterialBrass
TypeStandard
ApplicationBroad Range of Applications, Including Saturated Steam and Chemical Service
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant | ASTM B16 Stem | CRN 0C11218.5C | UNS C84400 Body | PROP65: Cancer and Reproductive Harm

Item Features

  • Tight shut-off with liquid media
  • Flow straight-through design efficiency
  • RPTFE ball cone for chemical resistance
  • 100% factory tested
  • 0.5 psig cracking pressure
