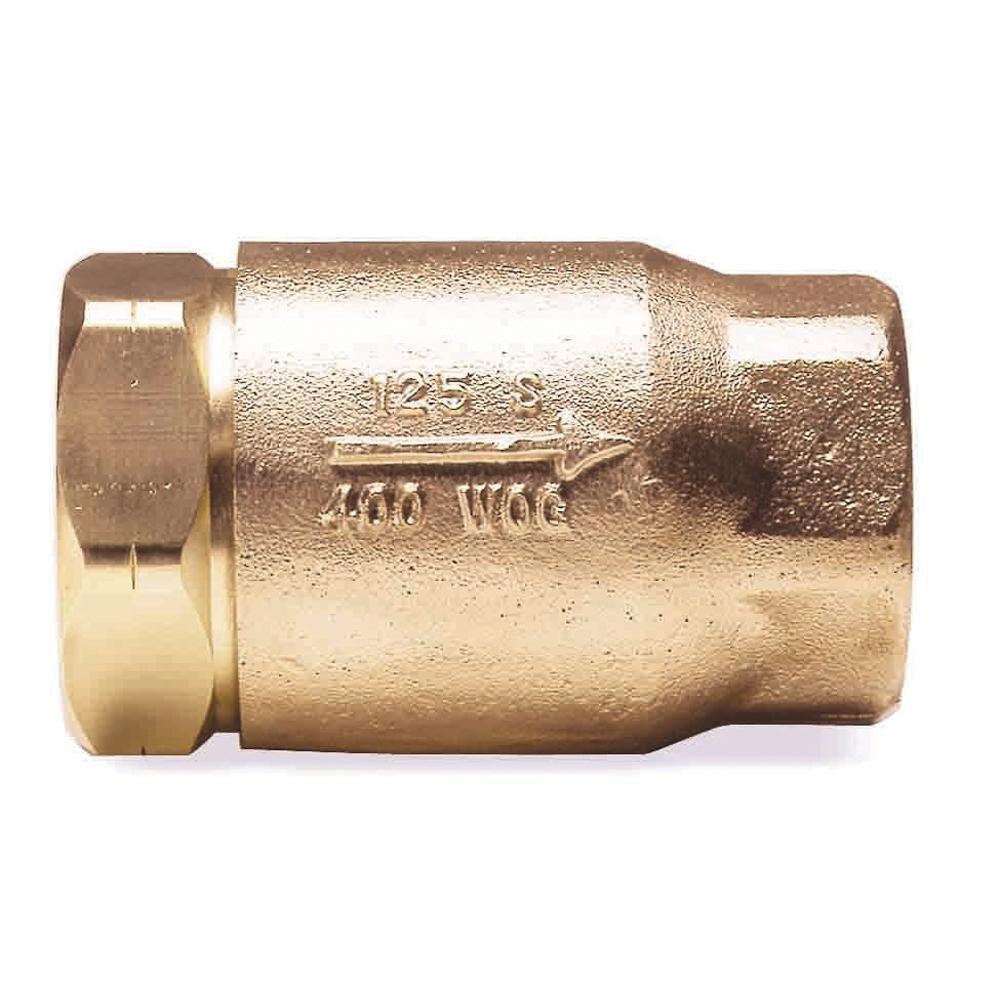

Apollo™ 6110301 61-100 In-Line Check Valve, 1/2 in Nominal, FNPT End Style, 1.4 gpm Flow Rate, Bronze Body, Domestic
CBPN:6932
UPC:670750631979
MPN:61-103-01
Price:
$67.27 / EA
Prop 65:
DESCRIPTION
Apollo™ 6110301, In-Line Check Valve, Series: 61-100, 1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, No Low Lead Compliance, 1.4 gpm Flow Rate, Media: Liquid/Steam, Spring Actuator, 2.31 in Inlet to Outlet Length, Bronze Body, 316 Stainless Steel Spring/Brass Stem Trim, 1.12 in H Dimensions, Domestic
Apollo™ CVB Ball Cone® Check Valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
Apollo™ 6110301 61-100 In-Line Check Valve, 1/2 in Nominal, FNPT End Style, 1.4 gpm Flow Rate, Bronze Body, Domestic
CBPN:6932
MPN:61-103-01
UPC:670750631979
Price:
$67.27 / EA
Prop 65:
DESCRIPTION
Apollo™ 6110301, In-Line Check Valve, Series: 61-100, 1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, No Low Lead Compliance, 1.4 gpm Flow Rate, Media: Liquid/Steam, Spring Actuator, 2.31 in Inlet to Outlet Length, Bronze Body, 316 Stainless Steel Spring/Brass Stem Trim, 1.12 in H Dimensions, Domestic
Apollo™ CVB Ball Cone® Check Valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
Specifications
Brand: Apollo™
Weight: 0.38 lbs
Nominal Size: 1/2 in
End Style: FNPT
Low Lead Compliance: No
Flow Rate: 1.4 gpm
Body Material: Bronze
Actuator Type: Spring
Dimensions: 1.12 in H
Inlet to Outlet Length: 2.31 in
Manufacturer Name: Apollo Conbraco
Media: Liquid/Steam
Pressure Rating: 400 psi CWP
Series: 61-100
Temperature Rating: 406 deg F
Trim Material: 316 Stainless Steel Spring/Brass Stem
Application: Well-Suitedfor a broad range of applications, including saturated steam and chemical service
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B16 Brass Retainer/Stem | AISI 316 Stainless Steel Spring | CRN 0C11218.5C | PROP65: Cancer and Reproductive Harm
Item Features
- Tight shut-off with liquid media
- Flow straight-through design efficiency
- RPTFE Ball Cone for chemical resistance
- Well-suited for a broad range of applications, including saturated steam and chemical service
- 100% factory tested
- May be installed in both horizontal and vertical flow with upward flow, do not use for reciprocating air compressor service
- 400 psi at 100 deg F, 125 psi Steam at 350 deg F
- cast bronze construction
