Apollo™ 3610401

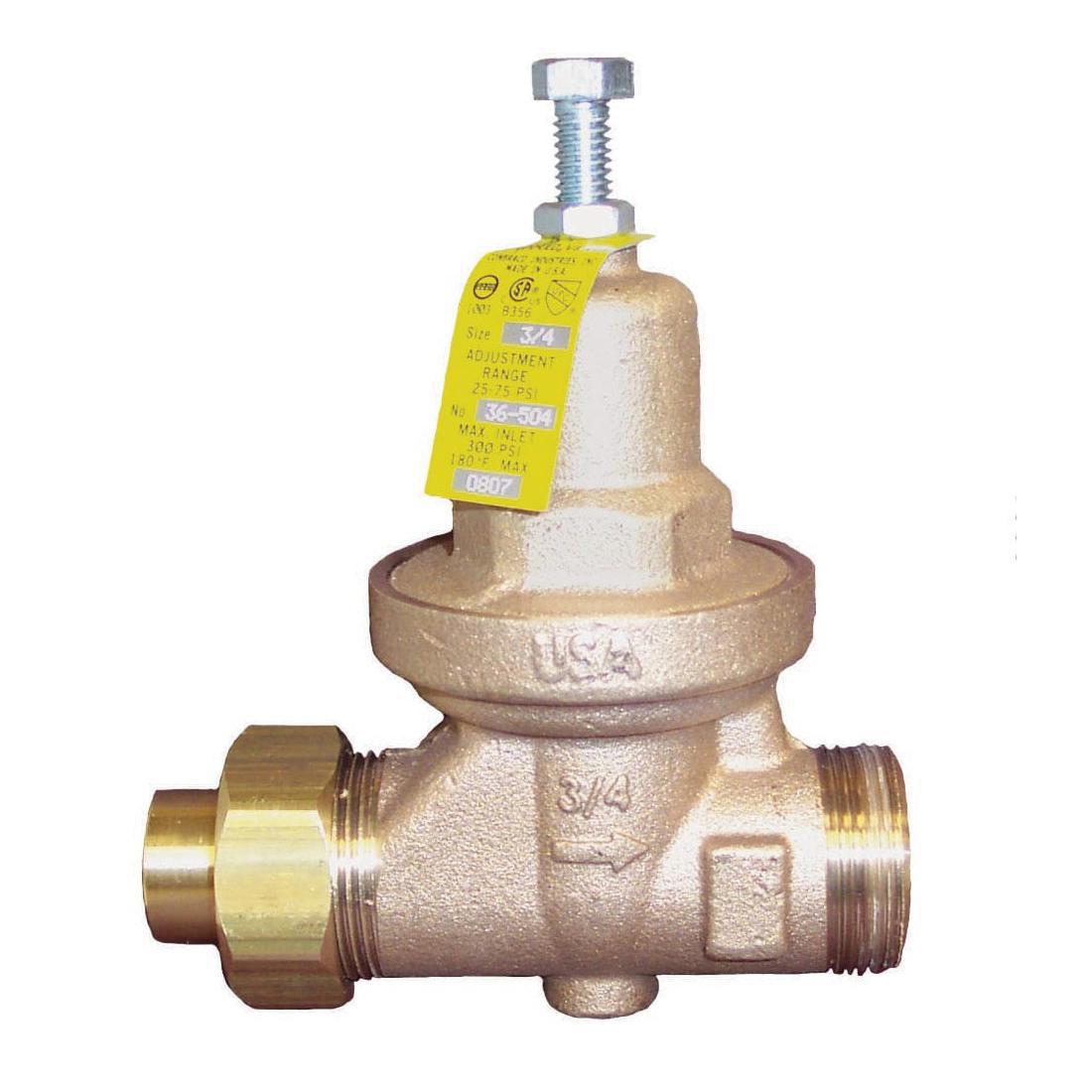

Apollo™ 3610401 36 Pressure Reducing Valve, 3/4 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic

CBPN:112842

UPC:670750562945

MPN:3610401

Price:
$274.79 / EA
Prop 65:

DESCRIPTION

Apollo™ 3610401, Pressure Reducing Valve, Series: 36, 3/4 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H x 2-3/4 in D Dimensions, Domestic

Apollo® Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Apollo™ 3610401 36 Pressure Reducing Valve, 3/4 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic

CBPN:112842

MPN:3610401

UPC:670750562945

Price:
$274.79 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 3610401, Pressure Reducing Valve, Series: 36, 3/4 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H x 2-3/4 in D Dimensions, Domestic

Apollo® Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Specifications

BrandApollo™
Weight3.4 lbs
Nominal Size3/4 in
End StyleSingle Union NPT
Pressure Range25 to 75 psi
Body MaterialBronze
Dimensions5-7/8 in H x 2-3/4 in D
Inlet to Outlet Length5-5/8 in
Manufacturer NameApollo Conbraco
MediaWater
Series36
Softgoods MaterialEPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring
Temperature Rating33 to 180 deg F
Trim MaterialEPDM/Brass
ApplicationResidential and Commercial Water Distribution Systems
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1003 | ASTM B584 Valve Body | CSA B356 | PROP65: Cancer and Reproductive Harm

Item Features

  • Corrosion resistant bronze body and bonnet
  • Integral stainless steel strainer
  • Balanced piston design
  • Internal thermal expansion by-pass
  • Multiple connection options
  • Optional pressure gauge or tapping
  • Stainless steel spring
  • Bronze cover
  • 100% factory tested, preset to 50 psi
  • EPDM seat disc
  • Buna-N with polyester diaphragm
