Apollo™ 3610301

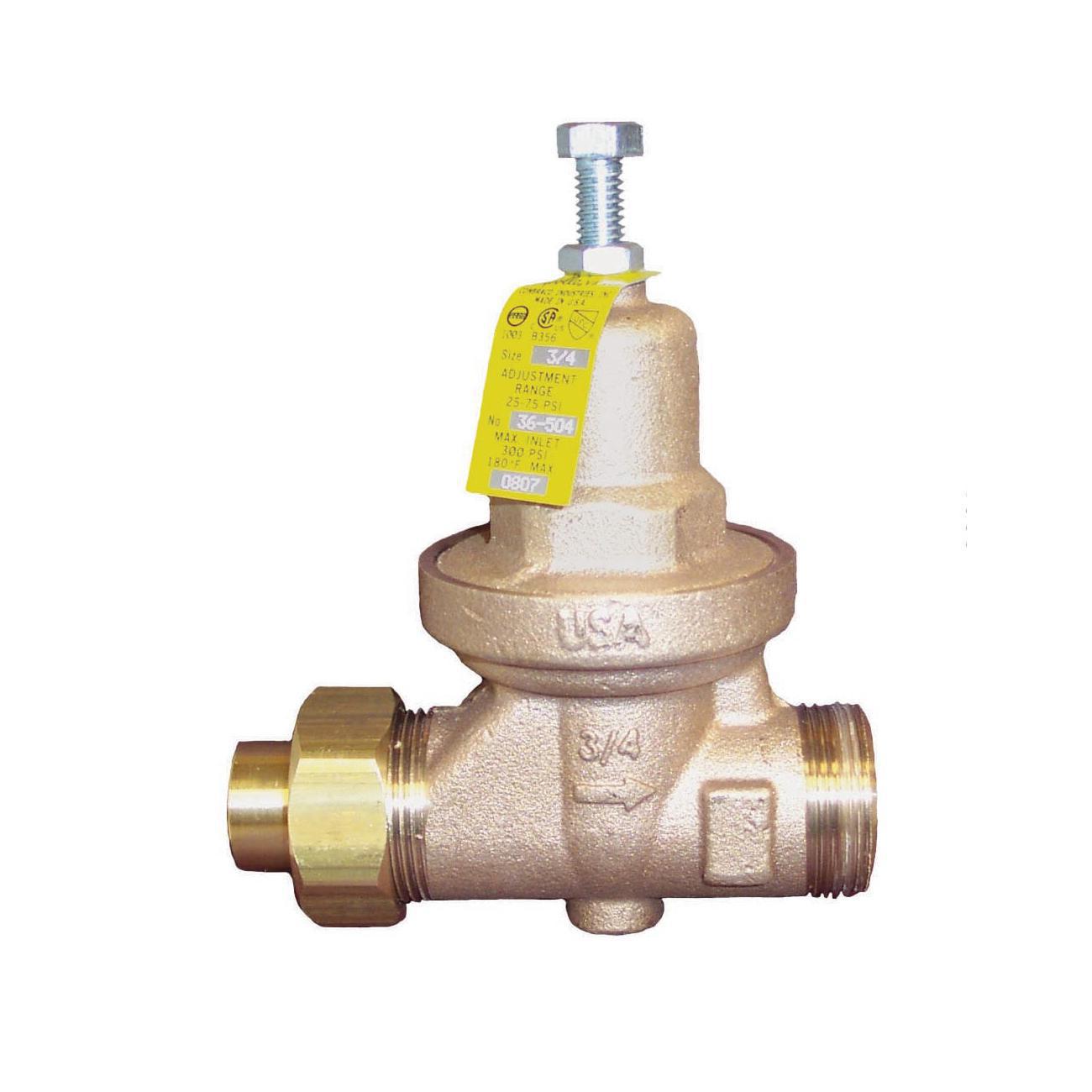

Apollo™ 3610301 36 Pressure Reducing Valve, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic

CBPN:183643

UPC:670750562877

MPN:3610301

Price:
$300.02 / EA
Prop 65:

DESCRIPTION

Apollo™ 3610301, Pressure Reducing Valve, Series: 36, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H x 2-3/4 in D Dimensions, Domestic

Apollo® Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Apollo™ 3610301 36 Pressure Reducing Valve, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic

CBPN:183643

MPN:3610301

UPC:670750562877

Price:
$300.02 / EA

Prop 65:

DESCRIPTION

Apollo™ 3610301, Pressure Reducing Valve, Series: 36, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H x 2-3/4 in D Dimensions, Domestic

Apollo® Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Specifications

Brand: Apollo™
Weight: 3.5 lbs
Nominal Size: 1/2 in
End Style: Single Union NPT
Pressure Range: 25 to 75 psi
Body Material: Bronze
Dimensions: 5-7/8 in H x 2-3/4 in D
Inlet to Outlet Length: 5-5/8 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 36
Softgoods Material: EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring
Temperature Rating: 33 to 180 deg F
Trim Material: EPDM/Brass
Application: Residential and Commercial Water Distribution Systems
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE 1003 | ASTM B584 Valve Body | CSA B356 | PROP65: Cancer and Reproductive Harm

Item Features

  • Corrosion resistant bronze body and bonnet
  • Integral stainless steel strainer
  • Balanced piston design
  • Internal thermal expansion by-pass
  • Multiple connection options
  • Optional pressure gauge or tapping
  • Stainless steel spring
  • Bronze cover
  • 100% factory tested, preset to 50 psi
  • EPDM seat disc
  • Buna-N with polyester diaphragm
