Apollo™ 34C-104-01

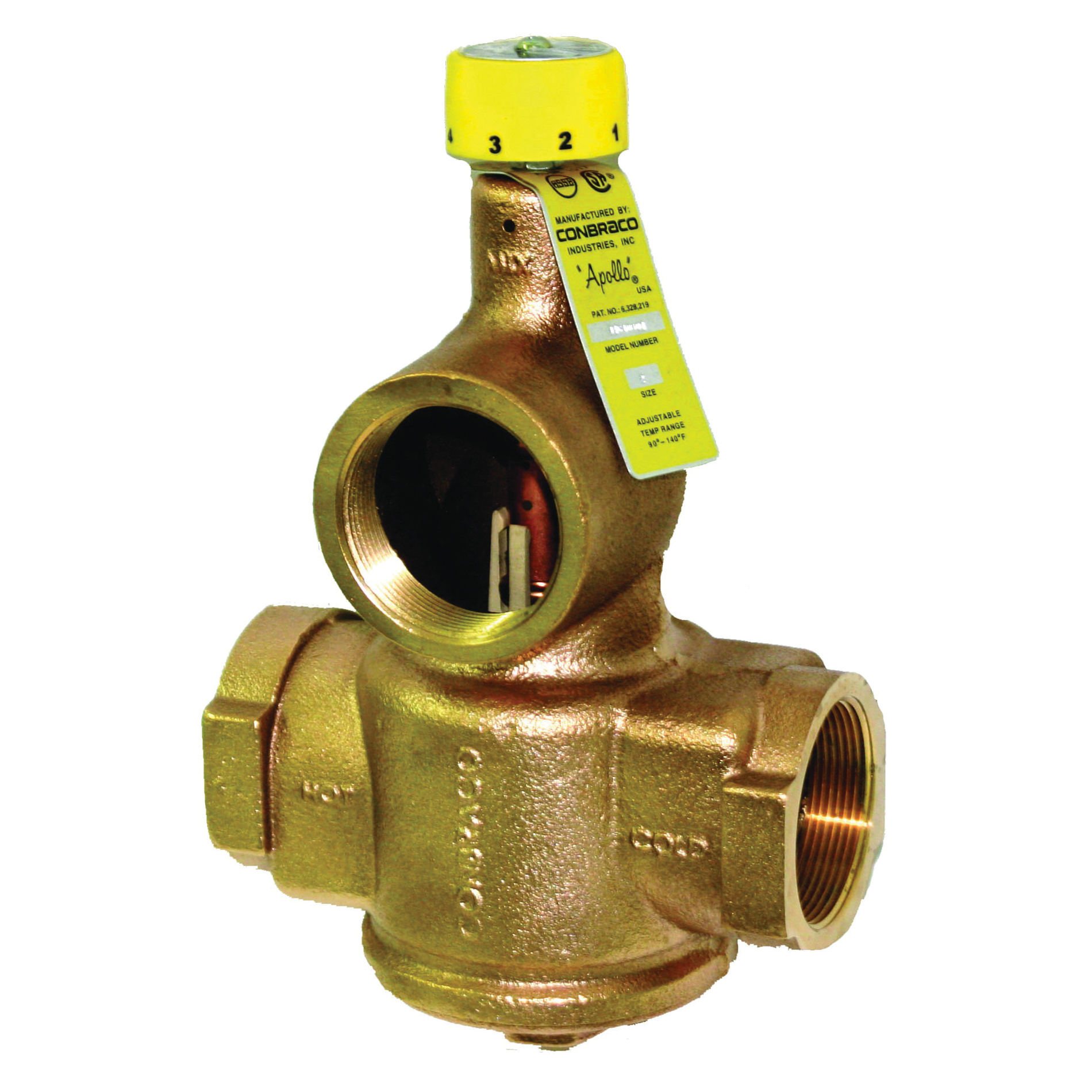

Apollo™ 34C10401 34C Thermostatic High Capacity Mixing Valve, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 1 gpm Flow, Bronze Body, Domestic

CBPN:155083

UPC:670750329531

MPN:34C-104-01

Price:
$669.86 / EA
Prop 65:

DESCRIPTION

Apollo™ 34C10401, High Capacity Mixing Valve, Thermostatic, Series: 34C, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 200 deg F, 1 gpm Flow, Media: Water, 5.22 in Inlet to Outlet Length, Bronze Body, Brass Trim, 6.77 in H Dimensions, Domestic

The Apollo® Model MVC (34C series) are ASSE 1017 approved thermostatic mixing valves designed for high capacity commercial and institutional point of source applications. Featuring ease of maintenance and best in class flow rates, they provide reliable temperature control for large hot water distribution and hydronic heating systems.

Apollo™ 34C10401 34C Thermostatic High Capacity Mixing Valve, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 1 gpm Flow, Bronze Body, Domestic

CBPN:155083

MPN:34C-104-01

UPC:670750329531

Price:
$669.86 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 34C10401, High Capacity Mixing Valve, Thermostatic, Series: 34C, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 200 deg F, 1 gpm Flow, Media: Water, 5.22 in Inlet to Outlet Length, Bronze Body, Brass Trim, 6.77 in H Dimensions, Domestic

The Apollo® Model MVC (34C series) are ASSE 1017 approved thermostatic mixing valves designed for high capacity commercial and institutional point of source applications. Featuring ease of maintenance and best in class flow rates, they provide reliable temperature control for large hot water distribution and hydronic heating systems.

Specifications

BrandApollo™
Weight7.62 lbs
Nominal Size3/4 in
End StyleFNPT
Pressure Rating150 psi
Flow Capacity1 gpm
Body MaterialBronze
Dimensions6.77 in H
Inlet to Outlet Length5.22 in
Manufacturer NameApollo Conbraco
MediaWater
Series34C
Temperature Rating200 deg F
Trim MaterialBrass
TypeThermostatic
ApplicationDesigned for high capacity commercial and institutional point of source applications
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant | ASTM B584-C84400 Body | ASTM B16-C36000 Stem | ASSE 1017 | CSA B125.01 | PROP65: Cancer and Reproductive Harm

Item Features

  • Threaded connections
  • Installs easily on heating source
  • Patented design for easy in-line maintenance
  • Thermostat copper/wax filled
  • Shuttle cartridge glass filled Noryl
  • Stainless steel spring
  • When the valve is installed at or near hot water source with recirculated tempered water with a continuously operating pump
  • 90 to 140 deg F
